Automated pergolas with adjustable louvers are becoming increasingly popular for outdoor shade solutions. A key component of these systems is a 24V motorized actuator that opens and closes the roof panels smoothly. In this guide, we’ll cover how to design a 24V pergola motor system, including motor selection, mechanical integration, and control options.
Before designing, define the following:
Load Capacity: Typically 50–300 lbs per actuator (depends on louver size & wind load).
Stroke Length: Usually 6–24 inches (based on louver rotation angle).
Speed: 0.5–2 inches per second (smooth, quiet operation).
Voltage: 24V DC (common for outdoor automation, balances power & safety).
Weather Resistance: IP65/IP66 (dustproof & waterproof).
Control Method: Remote, wall switch, or smart home integration.
Brushed DC Motor
• Simple, cost-effective.
• Requires limit switches for position control.
• More efficient, longer lifespan.
• Better for high-cycle applications.
Stepper Motor
• Precise positioning (no need for limit switches).
• Requires a driver (e.g., DM542).

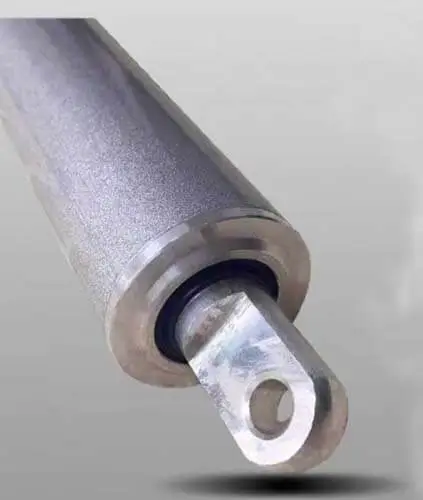

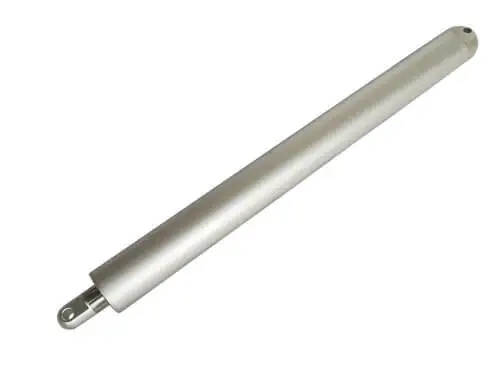

Linear Actuator (Recommended)
• Converts motor rotation into straight-line motion.
• Example: 24V 200-lb thrust, 12" stroke (PJM Inline actuator).

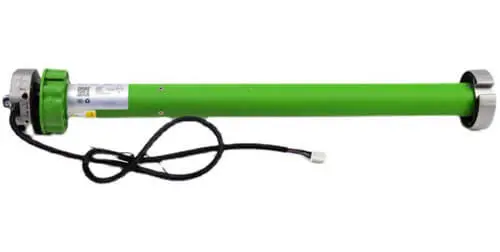

Rotary Actuator (For direct louver rotation)
• Uses a gearbox to turn louvers (e.g., 24V worm gear motor).
• Built-in Limit Switches (Auto stops at max/min positions).
• Overload Protection (Prevents motor burnout).
• Stainless Steel or Anodized Aluminum Housing (Corrosion-resistant).

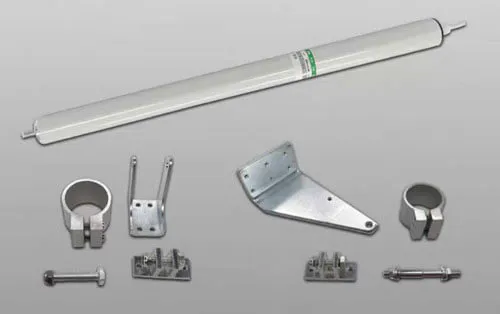

• Fixed Base: Secure to pergola frame (use stainless steel brackets).
• Moving Arm: Attach to louver linkage (ball joints help with alignment).
• Parallel Arm System: Ensures smooth, even movement.
• Pushrod Design: Direct linear force to louvers.
• Sealed Bearings & Shaft Seals (Prevent water ingress).
• Silicone Grease on moving parts (reduces friction & corrosion).
• 24V DC Power Adapter (For small setups).
• 24V Battery + Solar Panel (Off-grid option).
• Wiring: Use outdoor-rated, UV-resistant cables.
• Manual Switch
♦ Simple ON/OFF with a waterproof toggle switch.

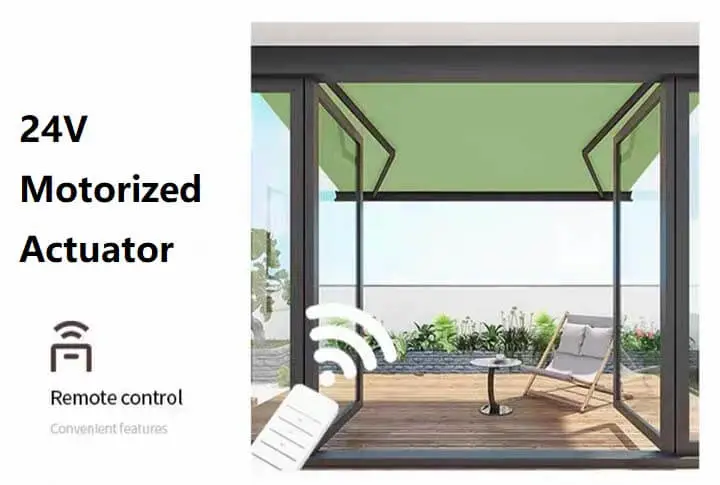

• RF/Wi-Fi Remote
♦ Example: Zigbee or 433MHz remote control.
• Smart Home Integration
♦ ESP32 + Home Assistant for voice control (Alexa/Google Home).
♦ Motor Controller: Use an H-bridge (L298N) or relay module.
• Obstruction Detection (Current sensing or mechanical slip clutch).
• Manual Override (Hand crank for power outages).
A. Initial Testing
• Check smooth movement under load.
• Verify waterproofing with a hose test.
B. Long-Term Maintenance
• Lubricate annually with silicone grease.
• Inspect seals & wiring for wear.
Buy: Faster, reliable (e.g., Somfy 24V motors, Louvered Roof Systems).
Build: Customizable, cost-saving (good for DIY enthusiasts).
A well-designed 24V pergola motor system ensures smooth, durable operation for automated louvered roofs. Whether you buy a pre-built actuator or design your own, focus on weather resistance, load capacity, and smart control for the best results.
