Energy-Saving Effects of Synchronous Motors in Cooling Large-Scale Data Equipment

I. Introduction: Challenges in Data Center Cooling and the Advantages of Synchronous Motors

With the rapid development of cloud computing and AI technologies, energy consumption in large-scale data centers has become a critical issue, with cooling systems accounting for 30%~40% of total energy usage. Traditional cooling fans typically use induction motors, which suffer from low efficiency and poor speed regulation. In contrast, synchronous motors—particularly permanent magnet synchronous motors (PMSMs)—offer high efficiency, precise speed control, and low thermal losses, making them a key technology for energy-saving upgrades in data centers.

II. Energy-Saving Principles of Synchronous Motors

1. High-Efficiency Design

No Excitation Loss in Permanent Magnet Rotors: Unlike induction motors, PMSMs eliminate rotor current losses, improving efficiency by 5%~15%.

Reduced Iron and Copper Losses: Optimized magnetic circuit design minimizes eddy current losses, achieving IE4/IE5 standards (>94% efficiency).

2. Precise Speed Matching with Load

Compatibility with Variable Frequency Drives (VFDs): Closed-loop control dynamically adjusts motor speed to cooling demand, avoiding wasteful "full-speed idling."

Reactive Power Compensation: Synchronous motors have a power factor close to 1, reducing grid reactive power losses.

3. Low Heat Generation

No Rotor Heating: Permanent magnets eliminate current-induced heating, reducing motor temperature rise and indirectly easing cooling system loads.

III. Applications in Data Center Cooling Systems

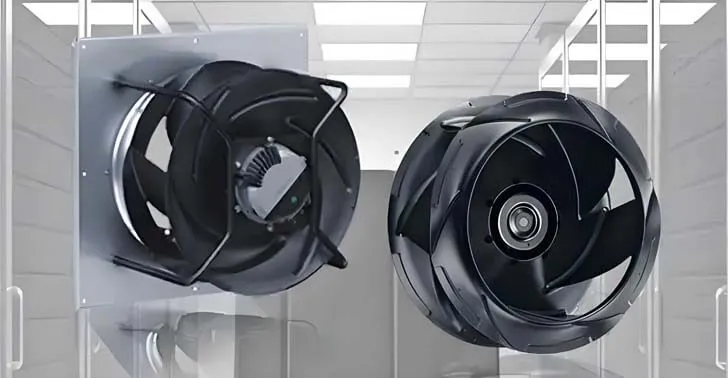

1. Cooling Fan Drives

Traditional Issue: Induction motors suffer drastic efficiency drops under partial loads (e.g., 20% efficiency loss at 50% load).

PMSM Solution:

   • PMSM + Inverter adjusts fan speed in real time based on server rack temperatures, saving over 30% energy.

   • Case Study: Google’s data center reduced fan energy consumption by 28% after retrofitting.

2. Pump Systems

Magnetic Levitation (MagLev) PMSM Pumps:

   • No mechanical friction losses, achieving >92% efficiency.

   • AI-driven flow prediction optimizes cooling water pressure dynamically.

3. Hot Aisle Containment Systems

Synchronous Motor-Driven Dampers: Precisely control airflow to prevent hot/cold air mixing, reducing air conditioning energy use.

IV. Measured Energy Savings Comparison

V. Implementation Challenges and Solutions

1. High Initial Cost

Solution: Payback period of 2–3 years through energy savings (total cost reduced by 40%+ over a 10-year lifespan).

2. Complex Control Systems

Solution: Use integrated drive modules (e.g., Siemens SIMOTICS PMSM) to simplify commissioning.

3. High-Temperature Demagnetization Risk

Solution: Use high-temperature neodymium (NdFeB) magnets (withstands 180°C) and install temperature sensors for early warnings.

VI. Future Trends

AI Integration: Machine learning predicts load fluctuations to optimize motor speed curves.

Magnetic Cooling: Synchronous motors drive magnetocaloric cooling systems, replacing compressors.

Superconducting Motors: Zero-resistance windings further reduce losses (currently in R&D).

VII. Conclusion

Synchronous motors (especially PMSMs) demonstrate significant energy-saving potential in data center cooling, with total savings reaching 20%~30%. Despite higher upfront costs, their long-term economic benefits and reliability make them essential for green data centers. Future advancements in smart control will push data center PUE (Power Usage Effectiveness) closer to the theoretical limit of 1.1.

Recommendation: New data centers should prioritize synchronous motor solutions, while existing facilities can gradually retrofit key components.
