In the field of electric drive systems, DC motors and AC motors are undoubtedly the two mainstream options. Each has its own advantages and is widely used in industrial automation, household appliances, new energy vehicles, and many other applications. However, faced with a wide variety of motor models and manufacturers, how to select the right motor based on actual needs and avoid unnecessary costs has become a challenge that engineers and procurement professionals must address.

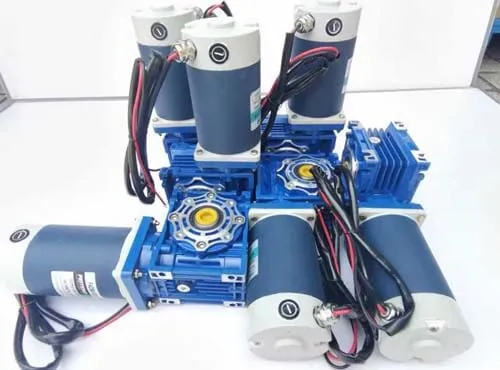

A DC motor, as the name suggests, is powered by direct current. With a long history and mature technology, it offers several advantages:
• Excellent Speed Control Performance:
DC motors can achieve precise speed regulation by adjusting armature voltage or field current, maintaining high torque output even at low speeds. This makes them ideal for applications requiring precise speed control, such as CNC machine tools and robotic servo systems.
• High Starting Torque:
DC motors provide high starting torque, making them suitable for driving heavy-load equipment like cranes and large pumps.
• Relatively Simple Structure and Easy Control:
The control circuitry for DC motors is relatively simple, enabling precise control and quick response to load changes.
• Easier Maintenance:
Compared to AC motors, DC motors are generally easier to maintain, with simpler component replacement.
However, DC motors also have inherent limitations:
• Requirement of a Commutator, Lower Reliability:

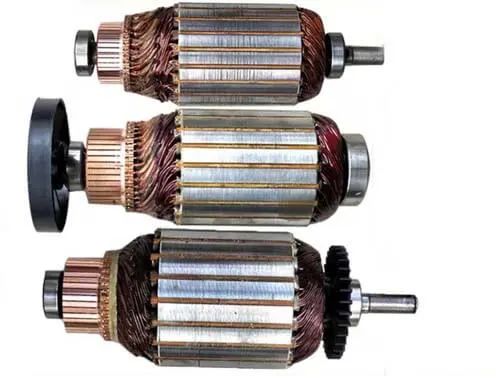

The commutator is a critical component of DC motors but is also prone to wear and sparking, affecting reliability and lifespan. Maintenance costs can be high, especially under high-speed and high-load conditions.
• Higher Energy Loss:
Due to the commutator, DC motors experience energy losses during operation, resulting in relatively lower efficiency.
• Larger Size and Heavier Weight:
Traditional DC motors have a complex structure, making them bulkier and heavier, which may not suit applications with strict space and weight constraints.

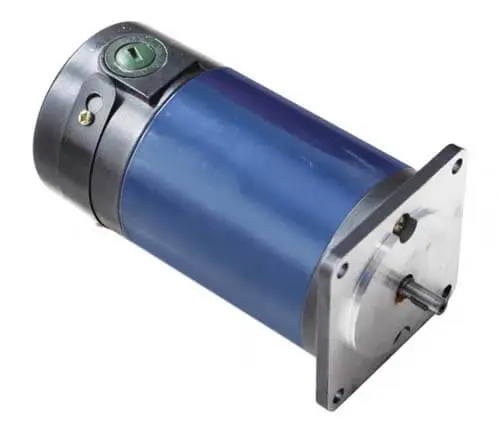

Permanent Magnet DC Motor: Uses permanent magnets for excitation, offering a simple structure and compact size but limited torque and power. Suitable for household appliances and small power tools.
Series-Wound DC Motor: The field winding is connected in series with the armature, providing high starting torque but poor speed regulation. Ideal for cranes and traction locomotives.
Shunt-Wound DC Motor: The field winding is connected in parallel with the armature, offering better speed regulation but lower starting torque. Suitable for machine tools and water pumps.
Separately Excited DC Motor: The field winding and armature are powered by independent sources, allowing wide speed range and high control precision. Used in servo systems requiring high accuracy.
AC motors are powered by alternating current and have rapidly developed into a diverse and widely used category:
• Simple Structure, High Reliability:

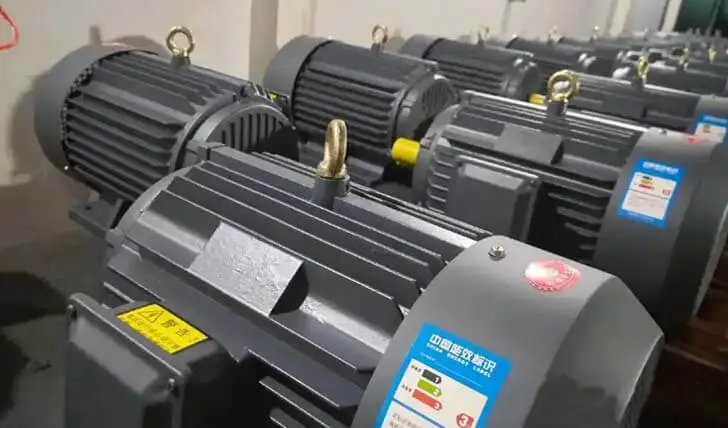

AC motors typically feature a squirrel-cage rotor design, making them robust, low-maintenance, and highly reliable.
• High Efficiency, Energy-Saving:
AC motors generally have higher efficiency than DC motors, reducing energy consumption and meeting environmental standards.
• Compact Size, Lightweight:
For the same power rating, AC motors are usually smaller and lighter than DC motors, making them ideal for space-constrained applications.
• Wide Voltage Compatibility:
AC motors can be designed for various voltage levels, adapting to different industrial and residential power supplies.
However, AC motors also have some drawbacks:
• Relatively Poor Speed Control Performance:
Traditional AC motors have difficulty with speed regulation and often require external devices like inverters for precise control.
• Lower Starting Torque:
AC motors typically provide lower starting torque than DC motors, making them less suitable for directly driving heavy loads.
• More Complex Control:
AC motor control requires more sophisticated circuitry and algorithms, especially in high-precision applications.
Induction Motor (Asynchronous Motor): The most widely used AC motor, featuring a simple structure, low cost, and high reliability but poor speed regulation. Suitable for fans, pumps, and compressors.

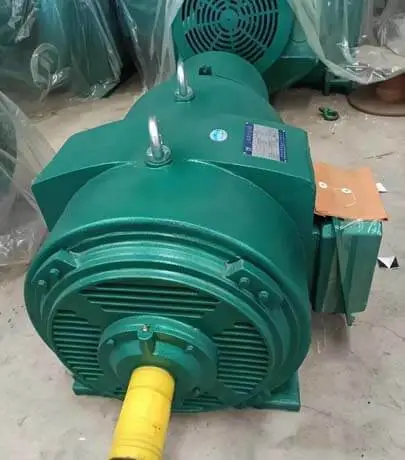

Synchronous Motor: The rotor speed synchronizes with the stator’s rotating magnetic field, offering high efficiency and controllable power factor but difficult starting. Used in large generators and precision instruments.

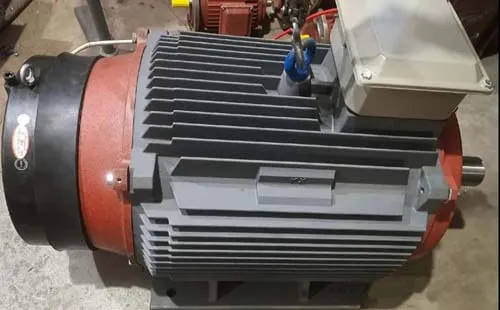

Permanent Magnet Synchronous Motor (PMSM): Uses permanent magnets for excitation, providing high efficiency, compact size, and precise control but at a higher cost. Ideal for electric vehicles and servo systems. (Such as PMS80 PMSM motors)
Switched Reluctance Motor (SRM): Simple structure and high-temperature resistance but noisy and complex to control. Suitable for high-temperature environments and high-reliability applications.
When selecting between DC and AC motors, avoid blindly opting for high prices or brand names. Instead, base the decision on actual application needs by considering the following factors:
• Load Characteristics:
♦ Constant Torque Loads: Conveyor belts, cranes, etc., require motors to maintain consistent torque across speeds. Both DC and AC motors can be used, but DC motors perform better at low speeds.
♦ Constant Power Loads: Machine tool spindles, rolling mills, etc., require motors to maintain constant power output. AC motors are more suitable.
♦ Fan and Pump Loads: Torque is proportional to the square of speed. AC motors with inverters enable energy-efficient speed control.
• Speed Control Requirements:
♦ High-Precision Speed Control: CNC machines, robots, etc., require precise speed and position control. DC motors and PMSMs are ideal.
♦ Wide-Range Speed Control: Textile machinery, rolling mills, etc., need broad speed adjustment. Both DC and AC variable-frequency motors can meet this demand.
♦ No Speed Control Needed: Fans, pumps, etc., with minimal speed requirements can use simple induction motors.
• Operating Environment:
♦ Harsh Conditions (High Temp, Humidity, Dust): Choose motors with high protection ratings, such as totally enclosed motors. SRMs are suitable for high-temperature environments.
♦ Explosive Atmospheres: Use explosion-proof motors for safety.
♦ Space-Constrained Applications: Compact motors like PMSMs are preferable.
• Budget Considerations:
♦ Initial Purchase Cost: Induction motors are cheaper; DC motors and PMSMs are more expensive.
♦ Maintenance Cost: DC motor commutators increase upkeep costs, while AC motors are cheaper to maintain.
♦ Energy Consumption Cost: AC motors generally have higher efficiency, reducing long-term energy expenses.
• Control System:
♦ Existing DC Motor Control Systems: If a mature DC control system is in place, sticking with DC motors may reduce replacement costs.
♦ Advanced Control Needs: AC variable-frequency motors with vector control or direct torque control can achieve superior performance.

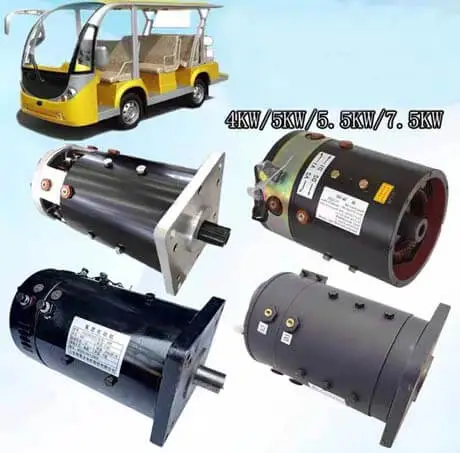

► Electric Vehicles: Early EVs mostly used DC motors, but PMSMs are now preferred for higher efficiency and better control.
► Industrial Fans: Traditionally equipped with induction motors, many now use AC variable-frequency motors for energy-saving speed regulation.
► Household Appliances: Often employ small, cost-effective permanent magnet DC motors or AC universal motors.
Choosing the right motor is not about price but understanding the characteristics of DC and AC motors and aligning them with specific application needs. By rationally analyzing factors like load type, speed requirements, operating environment, budget, and control systems, you can truly achieve the "choose the right, not the expensive" strategy, delivering the best solution for your application.
