Designing a high-efficiency Permanent Magnet Synchronous Motor (PMSM) requires careful consideration of electromagnetic, thermal, and mechanical aspects. Below is a structured approach to optimizing PMSM efficiency:
1. Key Design Objectives for High-Efficiency PMSM
• Maximize efficiency (IE4/IE5 standards)
• Minimize losses (copper, iron, mechanical, stray)
• Optimize torque density & power factor
• Ensure thermal stability & reliability
2. Electromagnetic Design Considerations
A. Stator Design

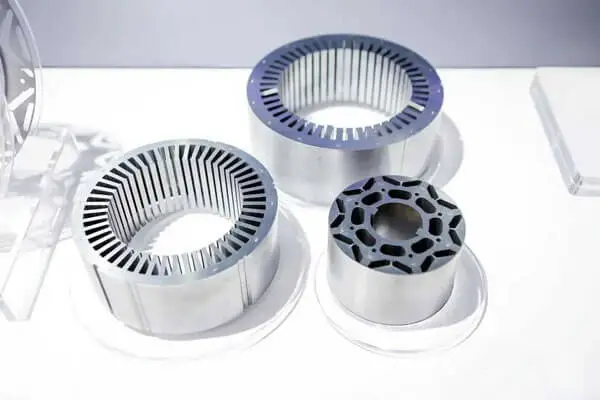

• Lamination Material:
(1) Use high-grade silicon steel (M19, M15, or amorphous metal) to reduce hysteresis & eddy current losses.

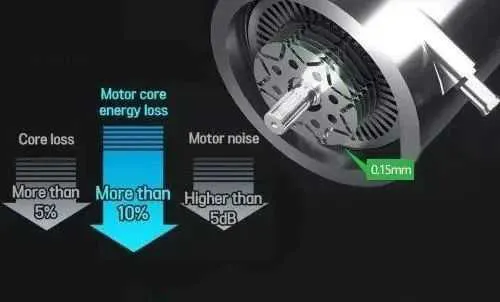

(2) Thinner laminations (0.2mm–0.35mm) reduce eddy losses at high frequencies.
• Slot & Winding Configuration:
(1) Fractional-slot concentrated windings (FSCW) reduce end-turn losses.
(2) Distributed windings improve sinusoidal back-EMF (better for FOC control).
(3) Litz wire for high-frequency operation to minimize skin effect losses.
• Optimal Pole-Slot Combination:
(1) Avoid cogging torque (e.g., 8-pole/9-slot, 12-pole/9-slot).
(2) Use skewed slots/magnets to reduce torque ripple.
B. Rotor Design
• Permanent Magnet Selection:
(1) NdFeB (N52, N42SH) for highest energy density.
(2) Ferrite magnets for cost-sensitive applications.
• Magnet Arrangement:
(1) SPM (Surface-mounted PM): Simpler but lower mechanical strength.
(2) IPM (Interior PM): Better reluctance torque & mechanical robustness.
• Air Gap Optimization:
Smaller gap → higher flux density, but must avoid mechanical interference.
3. Loss Minimization Techniques
|
Loss Type |
Reduction Method |
|
Copper Losses |
- Use thicker conductors or parallel strands. |
|
Iron Losses |
- High-quality silicon steel. |
|
Stray Losses |
- Proper shielding & winding symmetry. |
|
Windage Losses |
- Smooth rotor surface (for high-speed PMSM). |
|
Eddy Currents |
- Segmented magnets (for IPM). |
4.Thermal Management
• Cooling Methods:
Natural convection (for small motors).
Forced air/liquid cooling (high-power motors).
• Thermal Simulation:
Use ANSYS Motor-CAD, COMSOL to predict hotspots.
• Materials with High Thermal Conductivity:
Encapsulation resins with good heat dissipation.
5. Control Strategy for Efficiency
Field-Oriented Control (FOC) for optimal torque/speed efficiency.
Maximum Torque per Ampere (MTPA) algorithm for low-load efficiency.
Weak flux control for high-speed operation.
6. Mechanical Design for Efficiency
Precision bearings (ceramic hybrid for high-speed).
Rotor dynamic balancing to reduce vibration losses.
Lightweight materials (carbon fiber sleeves for SPM rotors).
7. Simulation & Validation
• Finite Element Analysis (FEA) Tools:
JMAG, Flux, ANSYS Maxwell for electromagnetic optimization.
• Prototype Testing:
Measure efficiency maps (ISO 11205 standard). Check torque ripple, cogging, and harmonics.
|
Parameter |
Optimized Choice |
|
Stator Core |
0.2mm M19 Silicon Steel |
|
Windings |
Litz Wire (FSCW) |
|
Magnets |
NdFeB N42SH (IPM) |
|
Cooling |
Liquid-cooled jacket |
|
Control |
FOC + MTPA |
Conclusion
Designing a high-efficiency PMSM involves:
✔ Low-loss materials (silicon steel, NdFeB magnets).
✔ Optimal electromagnetic design (pole-slot, winding type).
✔ Advanced control (FOC + MTPA).
✔ Thermal & mechanical optimization.
Would you like a step-by-step simulation guide or case study on a specific motor size? Contact with Power Jack Motion for the PMSM motor design.
