Designing a Permanent Magnet Synchronous Motor (PMSM) for a ceramic tile polishing line requires careful consideration of the application's specific demands, including high precision, durability, and efficiency. It is a very challenging design. Below is a structured approach to the design:
1. Application Requirements
Ceramic tile polishing involves:
High torque at low speeds for consistent polishing pressure.
Precise speed control to ensure uniform surface finish.
Dust and coolant resistance (common in wet polishing).
Long operational cycles with minimal maintenance.
Energy efficiency to reduce production costs.
Must meet the S8 working duty: Continuous operation periodic duty with related load/speed changes
2. Key PMSM Design Parameters
A. Electromagnetic Design

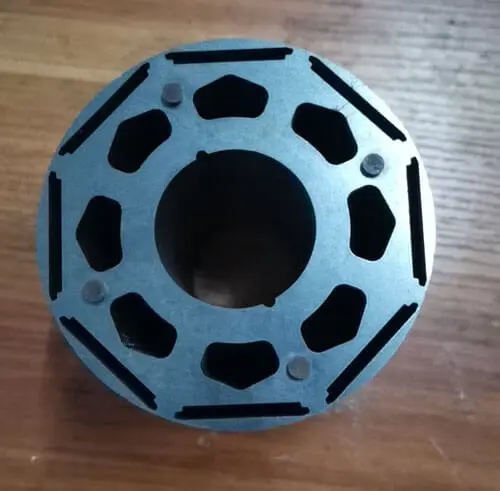

Rotor Type:
Surface-mounted PM (SPM) for simplicity and good efficiency.
Interior PM (IPM) if field weakening is needed for wider speed range.

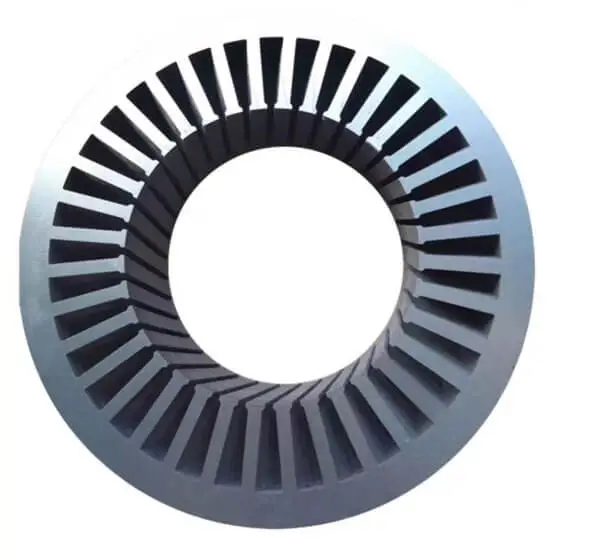

Stator:
Laminated steel core to reduce eddy current losses.
High slot fill factor for better thermal performance.
Permanent Magnets:
NdFeB (Neodymium) for high flux density and temperature resistance.
Segmented magnets to reduce eddy current losses.
Winding:
Distributed windings for smoother torque.
High-temperature insulation (Class H, 180°C) for reliability.
B. Thermal & Mechanical Design
Cooling:
Forced air cooling (if in a dusty environment).
Water cooling jacket (if high power density is needed).
Enclosure:
IP65 or higher to protect against polishing dust and water.
Stainless steel or coated housing for corrosion resistance.
C. Control Strategy
VFD control (variable frequency drive):
Reduces maintenance (no encoder needed).
Provides smooth torque control.
Dynamic braking for quick stops in emergencies.
3. Performance Considerations
|
Parameter |
Target Value |
|
Power Rating |
5–50 kW (depending on load) |
|
Speed Range |
100–3000 RPM (adjustable) |
|
Torque Density |
High (3–5 Nm/kg) |
|
Efficiency |
>92% (optimized for partial load) |
|
Overload Cap. |
150% for 30 sec (polishing spikes) |
4. Integration in Polishing Line
Direct Drive or Gearbox?
Direct drive preferred for reduced backlash and maintenance.
If gearbox is used, select helical gears for smooth operation.
Vibration Damping:
Use flexible couplings to absorb polishing vibrations.
Position Feedback (if needed):
Absolute encoder for precise speed/position control.
5. Challenges & Solutions
|
Challenge |
Solution |
|
Dust ingress |
Sealed bearings, IP65 enclosure |
|
High ambient temperature |
Liquid cooling, high-temp magnets |
|
Load variations |
Robust FOC algorithm with flux weakening |
|
Corrosive coolants |
Stainless steel shaft & anti-corrosion coating |

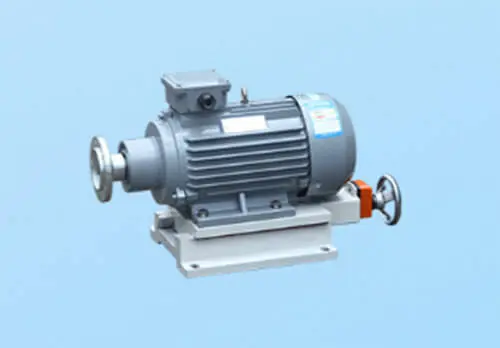

6. Example Specifications
Motor Type: PMSM motor suited for S8 working duty.
Power: 7.5 kW.
Speed: 0–3000 RPM（253Hz)
Torque: 19 Nm (continuous), 28 Nm (peak).
Cooling: Water jacket.
Protection: IP67.
Control: VFD control to adjust speed by 5000 RPM (253 Hz)
Mounting: Direct-connected dry squaring head
Conclusion
A well-designed PMSM for ceramic tile polishing should prioritize high torque density, efficiency, and ruggedness. Using high-grade magnets, advanced cooling, and robust control algorithms ensures long-term reliability in harsh industrial environments.
Would you like a detailed simulation (e.g., FEM analysis) or a specific focus on cost optimization? Contact with Power Jack Motion engineer team now!
