Electric motors, as indispensable power sources in modern industry and daily life, come in various types, each designed with distinct characteristics to meet different application requirements. Among them, DC brushed motors, DC brushless motors, and permanent magnet synchronous motors (PMSMs) are three of the most common motor types.
1. Performance Characteristics
The DC brushed motor is one of the oldest motor types in history. It operates by using brushes and a commutator to reverse the current direction, enabling continuous rotation. Its key features include:
Simple structure: Composed mainly of a stator, rotor, brushes, and commutator, it is easy to manufacture and maintain.
Excellent starting performance: Under DC voltage, it starts quickly and operates over a wide speed range.
Convenient speed control: Speed can be easily adjusted by varying the supply voltage, making it suitable for applications requiring frequent speed changes.
Despite its mature technology, brush and commutator wear limits its lifespan, especially under high-speed and high-load conditions. Key application areas include:
Household appliances: Such as vacuum cleaners and washing machines, where cost-effectiveness and sufficient power for light loads are priorities.
Power tools: Like handheld drills and electric screwdrivers, which require high starting torque and speed adjustability.

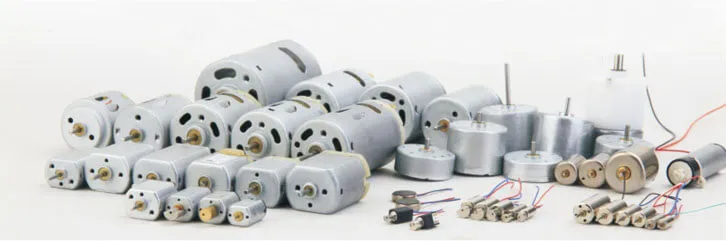

Toys and models: Due to their ease of control and maintenance, they are widely used in electric toys and scale models. They belong to the micro dc brush motors.
1. Performance Characteristics

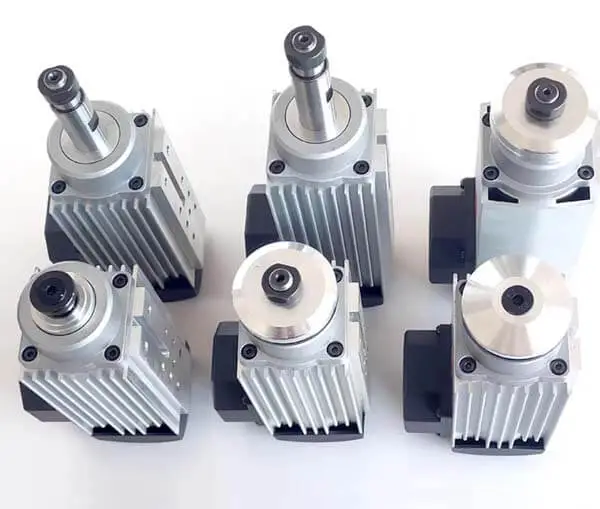

The brushless DC motor (BLDC) represents a significant advancement in motor technology, replacing brushes with electronic commutation. Its key advantages include:
High efficiency: More efficient than brushed motors, especially under medium-to-high loads.
Long lifespan & low maintenance: The absence of brushes and commutators reduces wear, extending service life and minimizing maintenance.
Low noise & vibration: Smooth operation with minimal friction makes BLDC motors ideal for noise-sensitive applications.
2. Applications
BLDC motors are widely adopted in various fields due to their efficiency, reliability, and low maintenance:
Electric vehicles & e-bikes: High efficiency and long endurance make BLDC motors a preferred choice.
Industrial automation: Used in robots and automated feeding systems for precise control.
HVAC & ventilation systems: Their low noise and high energy efficiency are critical in these applications.
1. Performance Characteristics

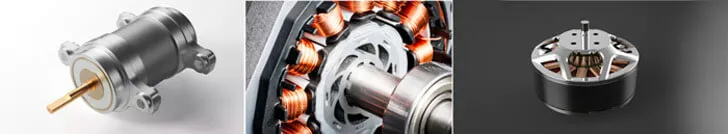

The permanent magnet synchronous motor (PMSM) is an advanced AC motor that uses permanent magnets for excitation and synchronizes with AC power. Its features include:
High efficiency & power density: Outperforms traditional induction motors, especially in medium-to-large sizes.
Wide speed range: With inverter control, it operates smoothly across a broad speed spectrum.
High stability: Minimal speed fluctuations under load variations ensure stable performance.
2. Applications
PMSMs are increasingly favored in high-demand applications due to their efficiency and stability:
New energy vehicles: Widely used in EVs and hybrids for their efficiency and dynamic performance.
Power generation: Employed in wind turbines and renewable energy systems as high-efficiency generators.
Precision equipment: CNC machines and industrial robots rely on PMSMs for high-precision operation.
DC brushed, brushless, and PMSM motors each offer unique advantages tailored to specific applications. With advancements in power electronics and growing energy efficiency demands, BLDC and PMSM motors are becoming increasingly vital in industrial applications.
Looking ahead, progress in materials science and control technology will further enhance these motors' performance, expanding their applications to meet increasingly complex and diverse needs.
