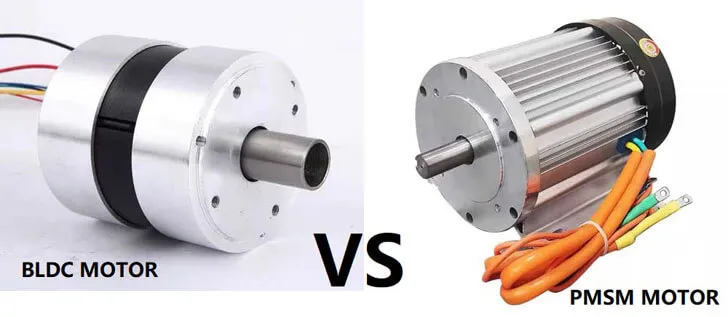

Permanent Magnet Motors (PMMs) are widely used in industrial automation, EVs, and appliances due to their high efficiency, power density, and low maintenance. Among PMMs, Brushless DC (BLDC) and Permanent Magnet Synchronous Motors (PMSM) dominate—yet their torque characteristics differ significantly in structure, control, and performance.

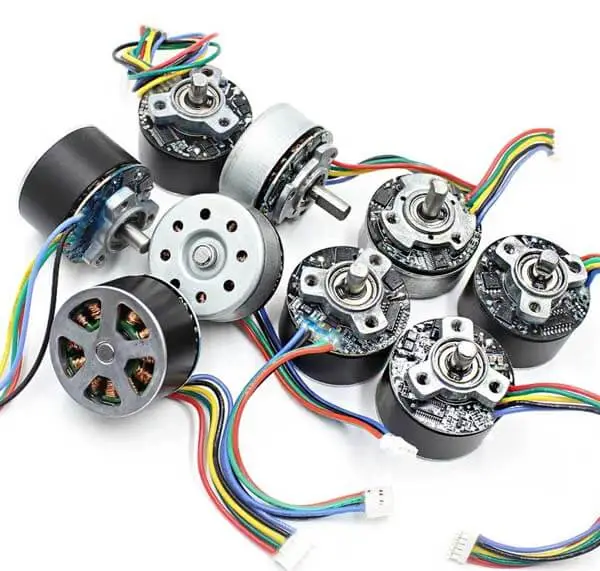

Design: Trapezoidal back-EMF with concentrated stator windings.
Control: Electronic commutation (Hall sensors/sensorless) switches stator currents in six-step sequences, creating a rotating magnetic field.
Goal: Speed/position control with square-wave currents.
Design: Sinusoidal back-EMF with distributed windings.
Control: Advanced algorithms like SVPWM or FOC generate smooth rotating fields via precise current vector control.
Goal: High-precision torque/speed/position control with sinusoidal currents.
Torque Generation
|
Motor Type |
Torque Equation |
Key Components |
|
BLDC |
T = K_t × I_a |
K_t: Torque constant (depends on flux/windings). I_a: Stator current. |
|
PMSM |
T = (3/2) × p × [λ_PM×i_q + (L_d - L_q)×i_d×i_q] |
λ_PM: PM flux. i_d/i_q: d/q-axis currents. L_d/L_q: Inductances. |
PMSM Torque Notes:
Surface-mounted (SPMSM): L_d ≈ L_q → Torque mainly from PM flux (i_q).
Interior (IPMSM): L_d ≠ L_q → Additional reluctance torque optimizes output.
Torque Characteristics
|
Parameter |
BLDC |
PMSM |
|
Torque Ripple |
High (due to square-wave commutation) |
Low (sinusoidal currents + FOC) |
|
Control Precision |
Moderate (speed-loop dependent) |
High (direct torque/current control) |
|
Peak Torque |
Limited |
Higher (field-weakening + reluctance torque) |
|
Overload Capacity |
Moderate |
High (advanced current limiting) |
|
Efficiency |
High (~85–90%) |
Very High (~90–95%, lower harmonics) |
|
Aspect |
BLDC |
PMSM |
|
Control Method |
Six-step commutation, Hall sensors |
FOC, DTC, field-weakening |
|
Implementation |
Simple (low-cost microcontrollers) |
Complex (DSP/FPGA required) |
|
Cost |
Low |
High |
|
Speed Range |
Narrow |
Wide (field-weakening enabled) |
Key Takeaways:
BLDC: Easy to implement, cost-effective, but trades off torque smoothness.
PMSM: Superior performance with FOC/DTC, demanding higher computational power.
Choose BLDC When:

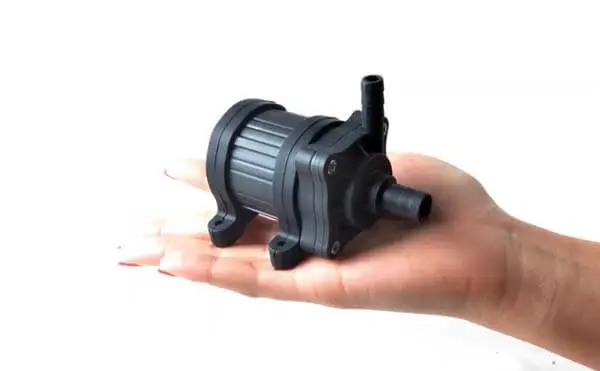

Cost sensitivity > torque precision (e.g., fans, small water pumps, basic power tools).
Simple control suffices (e.g., fixed-speed drives).
High starting torque is needed (but ripple is tolerable).
Choose PMSM When:
Precision matters (robotics, servo systems, EV traction).
Efficiency and low torque ripple are critical (aerospace, medical devices).
Wide speed range is required (spindles, industrial automation).
BLDC: "Workhorse" for budget-friendly, moderate-performance apps.
PMSM: "High-performer" for precision-critical, high-efficiency systems.
Pro Tip:
For retrofits, BLDC’s simplicity often wins.
For new designs, PMSM’s advanced control pays off in performance.
Match the motor to your needs, and torque won’t be a bottleneck!
