Industrial ovens are critical in various manufacturing processes, including food processing, chemical curing, metal treatment, and electronics production. The motors powering these ovens must withstand high temperatures, continuous operation, and harsh environments while maintaining efficiency and reliability. This article explores the design principles, motor types, thermal management techniques, and industry-specific requirements for industrial oven motors.
1.1 Temperature Resistance
Must operate reliably in ambient temperatures up to 200°C (392°F) or higher.
High-temperature insulation materials (Class H or better) for windings.
1.2 Continuous Duty Operation
Designed for 24/7 operation without overheating.
Optimized cooling systems to prevent thermal degradation.
1.3 Corrosion & Contaminant Resistance
Sealed housings (IP65 or higher) to prevent dust, moisture, and chemical ingress.
Stainless steel or coated components for corrosive environments.

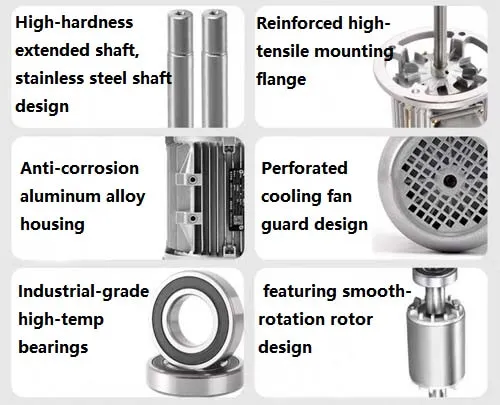

1.4 Vibration & Noise Control
Balanced rotors and precision bearings for smooth operation.
Low-noise designs for food and pharmaceutical applications.
|
Motor Type |
Advantages |
Common Applications |
|
AC Induction Motors |
- Robust, cost-effective |
Conveyor systems, blowers |
|
Brushless DC (BLDC) Motors |
- High efficiency |
Precision baking, automated ovens |
|
EC Motors (Electronically Commutated) |
- Energy-efficient |
Industrial drying, cleanroom ovens |
|
Explosion-Proof Motors |
- Safe for flammable environments |
Chemical curing, paint drying |
3.1 Cooling Methods
Forced Air Cooling: External fans for motors outside the oven chamber.
Liquid Cooling: Coolant jackets for ultra-high-temperature ovens.
Heat-Resistant Materials: Ceramic bearings, high-temp lubricants.
3.2 Insulation & Materials
Class H (180°C) or Class C (220°C+) insulation for windings.
High-temp cables & connectors to prevent melting.
Thermal barriers between motor and oven chamber.

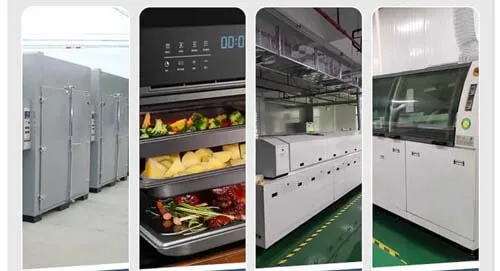

4.1 Food Processing Ovens
Stainless steel construction (FDA-compliant).
Easy-clean designs with smooth surfaces.
4.2 Electronics & PCB Curing Ovens (High temperature motor)
Low-vibration motors to prevent component damage.
Precise temperature control (±1°C) for uniform curing.
4.3 Automotive Paint Drying Ovens
Explosion-proof certification (ATEX, UL).
High airflow motors for even heat distribution.
4.4 Metal Heat Treatment Furnaces
Extreme heat resistance (up to 500°C).
Heavy-duty bearings for long lifespan.
5.1 Smart Motors with IoT Integration
Real-time temperature & vibration monitoring.
Predictive maintenance alerts.
5.2 Energy-Efficient Designs
Regenerative braking in conveyor systems.
Variable frequency drives (VFDs) for optimized power use.
5.3 Lightweight & Compact Motors
Advanced composite materials reducing weight.
Integrated motor-drive units saving space.
Designing motors for industrial ovens requires a balance of thermal resistance, durability, and efficiency. The right motor selection depends on:
✔ Temperature range
✔ Duty cycle
✔ Environmental conditions
✔ Industry-specific regulations
As oven technology advances, smarter, more efficient, and higher-temperature-resistant motors will continue to evolve, supporting more demanding industrial applications.
