Servo Linear Actuator Design for 6-DOF Motion Platforms

1. Introduction



Six-degree-of-freedom (6-DOF) motion platforms require high-performance servo linear actuators to achieve precise, dynamic movement in all axes. This technical design guide covers the critical aspects of servo linear actuator development for 6-DOF applications, including:



  • Kinematic requirements

  • Actuator configuration

  • Mechanical design

  • Control system integration

  • Performance optimization



2. System Requirements Analysis



2.1 Motion Platform Specifications



Parameter	Typical Range	Critical Factors
Payload capacity	100kg - 5000kg	Actuator force rating
Max velocity	0.5 - 2 m/s	Motor power, screw pitch
Acceleration	5 - 20 m/s²	Motor torque, inertia
Positioning accuracy	±0.01 - ±0.1mm	Encoder resolution
Repeatability	±0.005 - ±0.05mm	Mechanical backlash
Operating frequency	50 - 200Hz	Control bandwidth

2.2 Degrees of Freedom Requirements

  • Translational: Surge (X), Sway (Y), Heave (Z)

  • Rotational: Roll (φ), Pitch (θ), Yaw (ψ)



3. Actuator Mechanical Design



3.1 Configuration Options

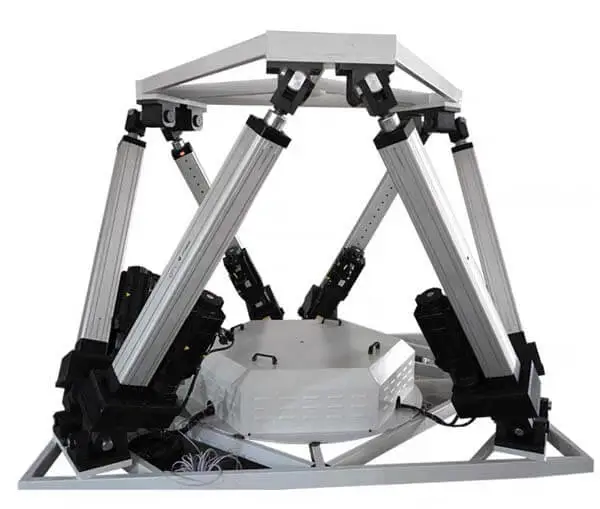

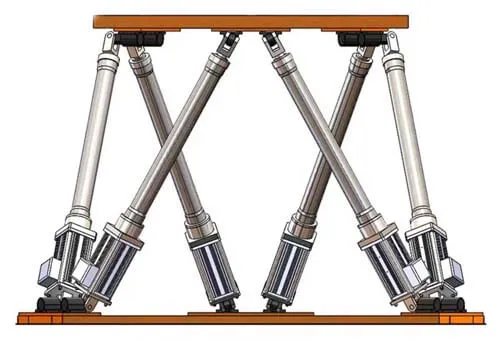

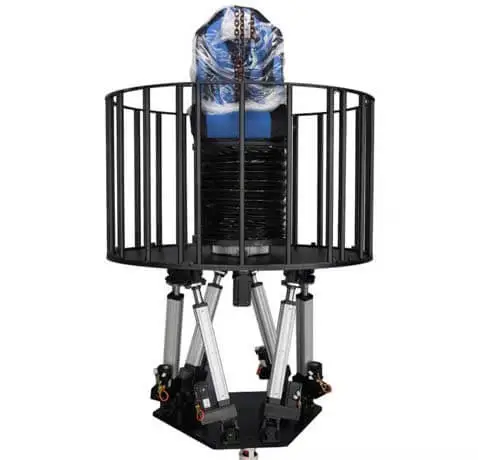

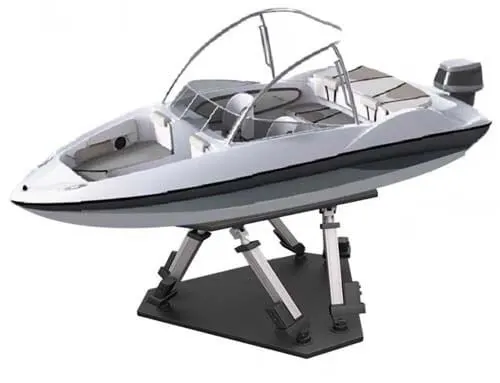

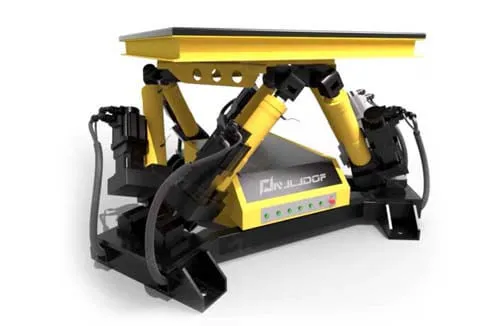

Stewart Platform (Hexapod) Configuration:

  • 6 linear actuators arranged in parallel

  • Upper and lower platforms connected via spherical/universal joints

  • Provides optimal stiffness and workspace



Alternative Configurations:

  • 3-DOF planar systems

  • Serial-parallel hybrids

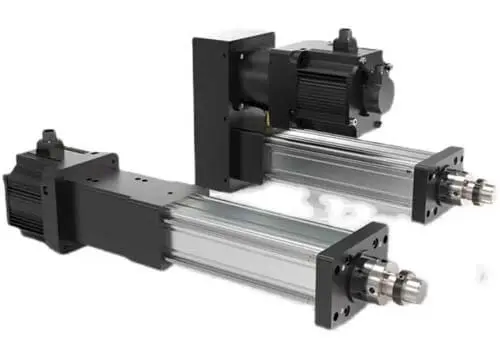

3.2 Critical Components

A. Drive Mechanism Selection:



Type	Advantages	Limitations
Ball screw	High efficiency, precision	Speed limited by critical rpm
Roller screw	Higher load capacity	More expensive
Belt drive	High speed capability	Lower stiffness
Linear motor	Direct drive, highest dynamics	Cost, heat management

B. Motor Selection Criteria:



  • Continuous torque requirement

  • Peak torque for acceleration

  • Speed-torque characteristics

  • Thermal management needs



C. Bearing & Guidance System:



  • Recirculating ball bearing guides (high stiffness)

  • Cross roller bearings (compact design)

  • Linear rails (long stroke applications)



4. Control System Design

4.1 Control Architecture

[Host PC/Motion Controller]
    ↓
[Real-Time Control Loop (1kHz+)]
    ↓
[Servo Drive Amplifiers]
    ↓
[Actuator Motors]
    ↓
[Encoder Feedback]
    ↑
[Force/Torque Sensors (Optional)]

4.2 Key Control Algorithms

Inverse Kinematics Solver

  ♦ Converts platform pose (X,Y,Z,φ,θ,ψ) to actuator lengths

  ♦ Must run in real-time (<1ms latency)



Motion Profile Generation

  ♦ S-curve acceleration profiles

  ♦ Jerk limitation for smooth motion



Advanced Control Techniques:

  ♦ Adaptive PID with friction compensation

  ♦ Model Predictive Control (MPC)

  ♦ Disturbance observer techniques





5. Performance Optimization

5.1 Stiffness Analysis

  • Minimum structural stiffness target: 100 N/μm

  • Joint stiffness critical for dynamic performance

  • Finite Element Analysis (FEA) recommended



5.2 Dynamic Simulation

  • Multi-body dynamics simulation (ADAMS, Simulink)

  • Natural frequency analysis (>30Hz target)

  • Vibration mode analysis



5.3 Thermal Management

  • Motor winding temperature monitoring

  • Forced air/liquid cooling for high-duty cycles

  • Thermal growth compensation



6. Implementation Case Study



Flight Simulator Actuator Specifications:

  ► Stroke: ±300mm

  ► Max speed: 1.2 m/s

  ► Continuous force: 2000N

  ► Peak force: 6000N (2 sec)

  ► Resolution: 0.01mm

  ► Bandwidth: 100Hz (-3dB)



Component Selection:

  → Motor: 3kW AC servo (3000rpm)

  → Drive: Ball screw (16mm pitch)

  → Encoder: 23-bit absolute

  → Bearings: Cross roller type

  → Housing: Aluminum alloy (7075-T6)



7. Testing & Validation

Critical Tests:

  → Step response analysis

  → Frequency response (Bode plots)

  → Backlash measurement

  → Load capacity verification

  → Durability testing (10⁷ cycles)





8. Future Development Trends

Integrated Smart Actuators:

  • Built-in condition monitoring

  • Self-calibration capabilities



Advanced Materials:

  • Carbon fiber structures

  • Ceramic bearings



AI-Enhanced Control:

  • Neural network-based compensation

  • Predictive maintenance algorithms



9. Conclusion

Designing servo linear actuators for 6-DOF platforms requires:

  ⇒ Careful kinematic and dynamic analysis

  ⇒ Optimal selection of drive components

  ⇒ Robust control system implementation

  ⇒ Rigorous performance validation



The presented design methodology ensures development of high-performance motion systems capable of meeting the demanding requirements of modern simulation and precision motion applications.
