In industries where precision, reliability, and controlled motion are critical, servo linear actuators have become a cornerstone technology. These advanced electromechanical devices combine the accuracy of servo control with the linear motion of actuators, making them ideal for applications ranging from robotics to CNC machining. This article explores the working principles, types, advantages, and key applications of servo linear actuators, as well as the latest advancements in the field.
A servo linear actuator is a motor-driven device that converts rotary motion into precise linear movement using a feedback control system. Unlike standard linear actuators, servo linear actuators incorporate encoders or resolvers to provide real-time position, speed, and force feedback, ensuring high accuracy and repeatability.

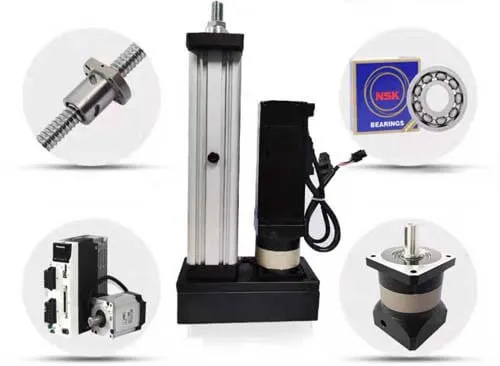

Key Components:
► Servo Motor – Provides controlled rotary motion.
► Lead Screw, Ball Screw, or Belt Drive – Converts rotation into linear movement.
► Feedback Sensor (Encoder/Resolver) – Monitors position and adjusts motion in real time.
► Controller (Servo Drive) – Processes feedback signals and adjusts motor output.

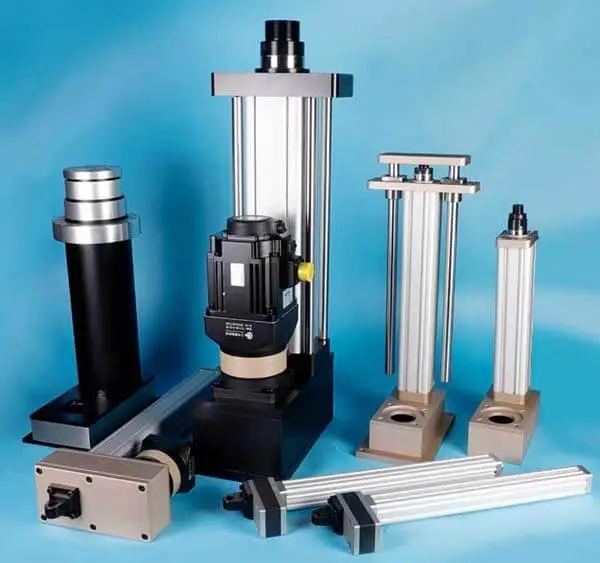

Depending on the mechanism used for motion conversion, servo linear actuators can be classified into:
• Use a recirculating ball bearing mechanism for smooth, high-efficiency motion.
• Ideal for high-precision, high-load applications (e.g., CNC machines, industrial automation).
• Simpler and more cost-effective than ball screws.
• Suitable for moderate precision and load applications (e.g., medical devices, packaging).
• Use timing belts and pulleys for high-speed linear motion. (Such as BEC series servo linear actuator)
• Best for long-stroke, high-speed applications (e.g., 3D printing, pick-and-place robots).
• Eliminate mechanical transmission (no screws or belts).
• Offer ultra-high precision and speed (used in semiconductor manufacturing, laser cutting).
Compared to traditional pneumatic or hydraulic actuators, servo linear actuators provide:
✔ High Precision – Sub-millimeter or even micron-level accuracy.
✔ Programmable Control – Adjustable speed, force, and position via software.
✔ Energy Efficiency – Consume power only when moving, unlike constant-pressure systems.
✔ Smooth & Quiet Operation – Reduced vibration and noise compared to mechanical alternatives.
✔ Real-Time Feedback – Closed-loop control ensures consistent performance.

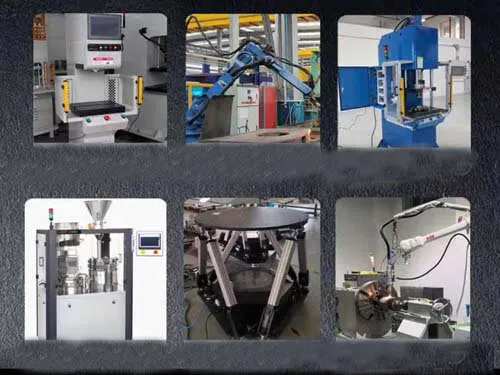

Due to their versatility, servo linear actuators are used in numerous industries:
1. Industrial Automation
• Robotic Arms – Precise positioning for assembly and welding.
• CNC Machines – Accurate tool movement for milling and cutting.
2. Aerospace & Defense
• Flight Simulators – Realistic motion control for pilot training.
• Missile Guidance Systems – Fine adjustments for targeting.
3. Medical & Laboratory Equipment
• Surgical Robots – High-precision movements in minimally invasive surgery.
• Automated Lab Systems – Precise liquid handling in diagnostics.
4. Automotive Manufacturing
• Automated Welding & Painting – Consistent, repeatable motion.
• Test & Measurement Systems – Simulate real-world forces on components.
5. Consumer Electronics
• 3D Printers – Layer-by-layer material deposition.
• Camera Stabilizers – Smooth, controlled movements for filming.
Modern servo linear actuators are evolving with:
⇒ Integrated Smart Sensors – AI-driven predictive maintenance and self-calibration.
⇒ Miniaturization – Compact designs for portable and wearable tech.
⇒ Higher Energy Efficiency – Regenerative braking and low-power modes.
⇒ Wireless Control – IoT-enabled actuators for Industry 4.0 automation.
Servo linear actuators are revolutionizing industries that demand precision, speed, and intelligent control. Whether in robotics, medical devices, or advanced manufacturing, their ability to deliver accurate, repeatable, and programmable linear motion makes them indispensable.
As technology advances, we can expect even smarter, faster, and more efficient servo linear actuators, further enhancing automation and performance across multiple sectors.
