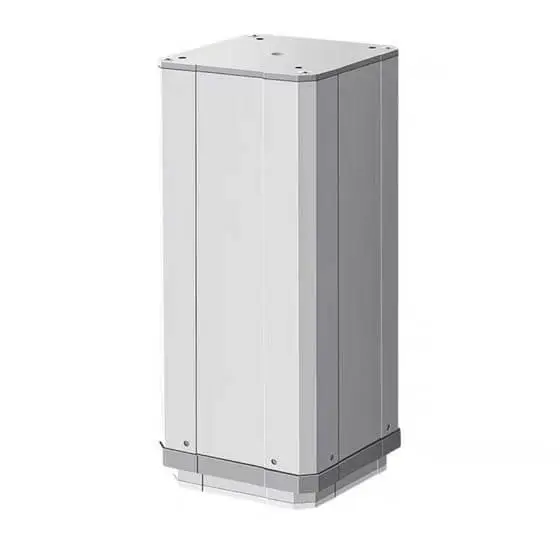

Lifting columns (also called linear actuator columns) are essential for adjustable-height work platforms, assembly lines, ergonomic workstations, and heavy-duty lifting applications. Below is a comprehensive guide on design, selection, and implementation.
A. Load Capacity & Stability
Static Load: Must support the platform + max payload (e.g., 500–5,000 kg).
Dynamic Load: Accounts for movement, vibrations, and shock loads (safety factor ≥ 1.5–2x).
Stability: Anti-tilt mechanisms (dual/triple-stage columns for tall lifts).
B. Stroke & Speed
Stroke Length: Typically 500–2,000 mm (adjustable for different heights).
Lifting Speed: 3–15 mm/s (slow for precision, fast for productivity).
C. Duty Cycle & Lifespan
Intermittent (S2): Short bursts (e.g., <10% duty cycle).
Continuous (S1): For constant adjustments (requires cooling).
Lifespan: 50,000+ cycles (industrial-grade columns).
A. Motor & Drive System
|
Motor Type |
Pros |
Cons |
Best For |
|
High torque, low cost |
Fixed speed |
Heavy-duty platforms |
|
|
BLDC Motor |
Efficient, speed control |
Expensive |
Precision applications |
|
Hydraulic |
Extreme force (10+ tons) |
Maintenance-heavy |
Heavy industrial lifts |
B. Lifting Mechanism
|
Type |
Pros |
Cons |
Use Case |
|
Lead Screw |
Self-locking, precise |
Slow, wear-prone |
Assembly stations |
|
Ball Screw |
High efficiency, long life |
Expensive |
CNC work platforms |
|
Scissor Lift |
Compact, high stability |
Limited stroke |
Low-height lifts |
|

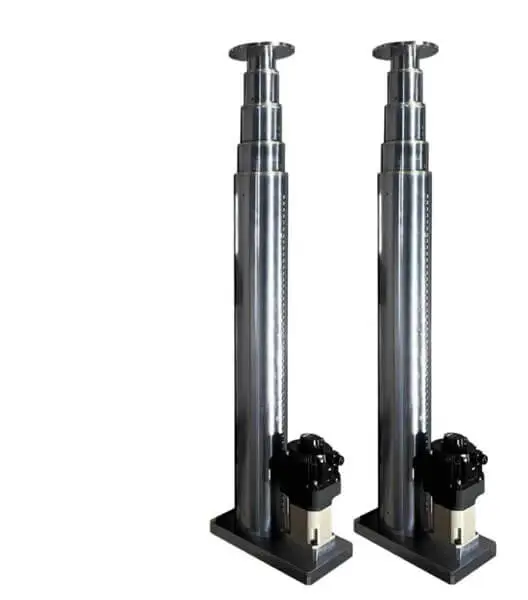

Multi-Stage |
Long stroke, space-saving |
Lower lateral stability |
Tall work platforms |
C. Structural Components
Housing: Steel (EN 10025) or aluminum (for lightweight).
Guide Rails: Precision linear guides for smooth motion.
Base Plate: Reinforced mounting for stability.
A. Control Options
Manual (Up/Down Buttons) – Simple, low-cost.
Programmable (PLC/PIC) – For automated height presets.
Smart (IoT/Joystick) – Remote control via HMI or mobile app.
B. Safety Mechanisms
Overload Protection – Current sensors or mechanical slip clutch.
Emergency Stop – Instant cutoff (EN ISO 13850 compliant).
Anti-Collision – Infrared/ultrasonic sensors.
Fail-Safe Brake – Prevents free-fall on power loss.
|
Application |
Lifting Column Requirements |
Example Use |
|
Assembly Lines |
Medium load (300–1,000 kg), precise |
Automotive workstations |
|
Packaging Machines |
Fast cycling, high durability |
Conveyor height adjustment |
|
Maintenance Platforms |
Long stroke, high stability |
Aircraft/warehouse servicing |
|

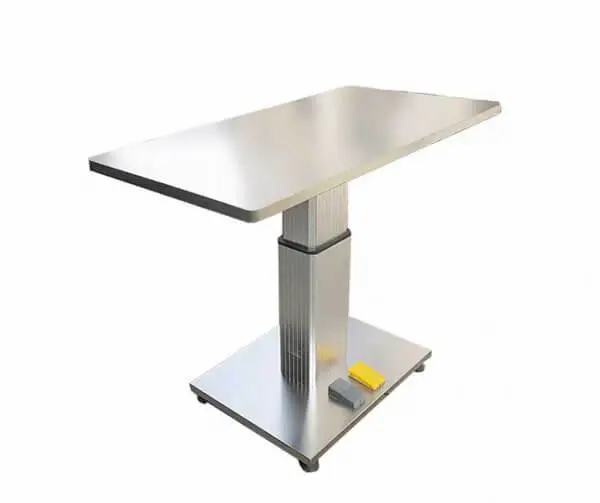

Ergonomic Desks |
Quiet, smooth motion |
Adjustable workbenches |
Specifications:
Load Capacity: 2,000 kg (dynamic), 3,000 kg (static).
Stroke: 1,200 mm.
Speed: 8 mm/s (150 sec full lift).
Motor: 400W AC gear motor + ball screw.
Control: PLC with height presets.
Safety: Overload sensor + emergency brake.
Linak (DL5/DL6 Heavy Duty)
Thomson (Electrak Pro)
Parker (Linear Motion Systems)
Phoenix Mecano (Industrial Lift Columns)
Power Jack Motion (LC04 Industrial Lifting Column)
Monthly: Lubricate guide rails & check belt tension.
Annual: Inspect motor brushes (if brushed DC).
Every 5 Years: Replace ball screws/lead screws (if worn).
For heavy loads (>1 ton): Use ball screw + BLDC motor with PLC control.
For ergonomic workstations: Quiet AC motor + lead screw.
For harsh environments: IP65-rated, stainless steel housing.
Would you like CAD design tips, load calculations, or wiring diagrams? Contact with our lifting column engineer teams.
