Gas radiant tube heaters are widely used in industrial and commercial heating applications due to their energy efficiency and uniform heat distribution. A critical component of these systems is the blower fan, which ensures proper combustion, airflow, and heat transfer. This article explores the design considerations, types, and best practices for selecting and optimizing blower fans in gas radiant tube heating systems.
The blower fan performs several essential functions:
Combustion Air Supply: Delivers the required oxygen for efficient gas combustion.
Exhaust Gas Removal: Extracts combustion byproducts (CO₂, NOₓ, water vapor) safely.
Heat Distribution: Enhances convective heat transfer for uniform temperature control.
Pressure Regulation: Maintains optimal backpressure for burner performance.
A. Airflow Requirements
CFM (Cubic Feet per Minute): Must match the burner’s combustion needs (typically 50–500 CFM for industrial systems).
Static Pressure: Overcomes resistance in ducts/tubes (usually 0.5–2.0 inches H₂O).

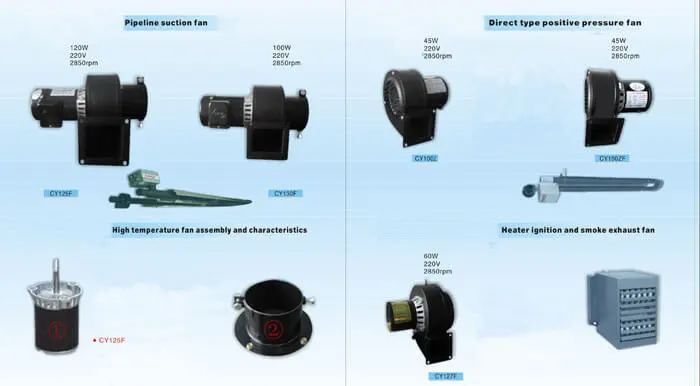

B. Fan Types
|
Type |
Pros |
Cons |
Best For |
|

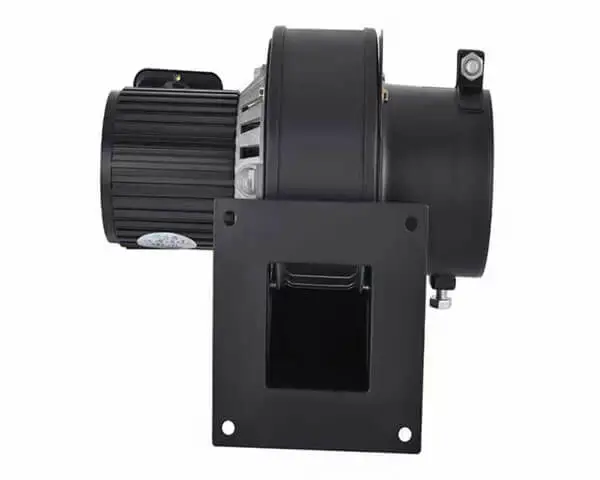

Centrifugal Blower |
High pressure, durable |
Larger footprint |
Long radiant tube systems |
|
Axial Fan |
Compact, energy-efficient |
Lower pressure capability |
Short-tube applications |
|
Regenerative Blower |
Quiet, oil-free operation |
Limited airflow |
Clean environments |

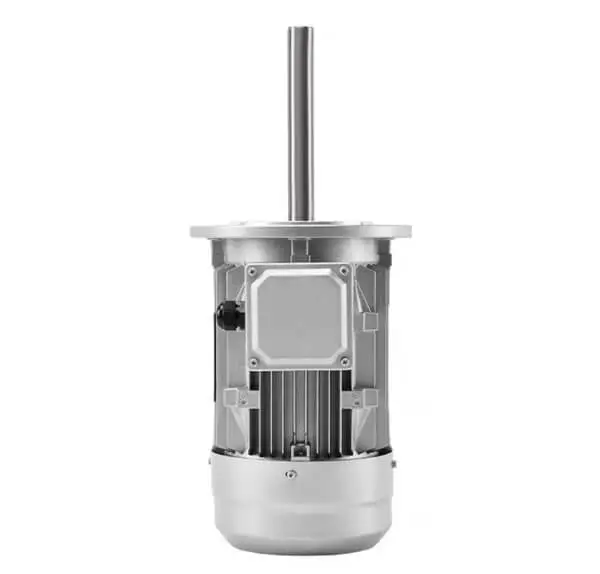

C. Motor & Power Requirements
AC Motors: Common for fixed-speed applications (e.g., 110V/230V, 1/3 HP).
EC Motors (Electronically Commutated): Energy-efficient, variable speed for modulation.
Explosion-Proof Motors: Required in hazardous (Class I Div 1/2) environments.
D. Material & Environmental Resistance
Housing: Aluminum (lightweight) or coated steel (corrosion-resistant).
Temperature Resistance: Must withstand 200–400°F (near-blower heat exposure).
IP Rating: IP54 or higher for dust/moisture protection.
A. Variable Speed Control
Benefits: Adjusts airflow based on heating demand, reducing energy consumption.
Implementation: Use VFD (Variable Frequency Drive) or PWM controllers.
B. Noise Reduction
Vibration Isolation: Rubber mounts or flexible duct connectors.
Aerodynamic Blade Design: Reduces turbulence-induced noise.
C. Maintenance & Longevity
Self-Cleaning Blades: Prevent dust buildup in high-particulate environments.
Sealed Bearings: Reduce lubrication needs in continuous-duty systems.
Industrial Furnaces: Forging, heat treatment, drying ovens.
Commercial Space Heating: Warehouses, hangars, workshops.
Food Processing: Conveyor-based radiant heating systems.
Greenheck (Centrifugal Blowers)
EBMPapst (EC Axial Fans)
Soler & Palau (High-Temperature Blowers)
Cincinnati Fan (Heavy-Duty Industrial Blowers)
Power Jack Motion (Brushless Motor Blowers)
|
Issue |
Possible Cause |
Solution |
|
Insufficient Airflow |
Clogged filter/damper |
Clean/replace filters |
|
Excessive Noise |
Unbalanced impeller |
Rebalance or replace fan wheel |
|
Motor Overheating |
Overloaded or poor ventilation |
Check amp draw, improve cooling |
Selecting the right blower fan for a gas radiant tube system ensures efficient combustion, optimal heat distribution, and long-term reliability. Key factors include airflow requirements, motor type, environmental conditions, and control strategies. For high-temperature industrial applications, centrifugal blowers with variable speed control are often the best choice.
Would you like detailed CFD airflow analysis recommendations or specific product comparisons? Contact with us now!
