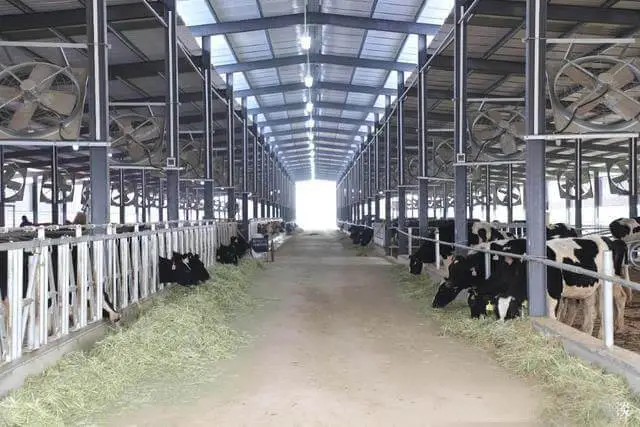

Energy-efficient ventilation is critical for maintaining optimal air quality, temperature, and humidity in cattle farms. Electronically Commutated (EC) axial fans offer superior performance compared to traditional AC fans, with advantages in energy savings, controllability, and durability. This article examines the design considerations for EC axial fan motors specifically tailored for cattle farm applications.
✔ Energy Efficiency – Up to 70% less power consumption than AC fans
✔ Precise Speed Control – Adjustable airflow based on real-time needs
✔ Low Maintenance – Brushless design with long service life
✔ Quiet Operation – Reduced noise for less animal stress
✔ Smart Farm Integration – IoT-compatible for automated ventilation
A. Environmental Conditions
High Humidity (70-95% RH) → Requires moisture-resistant materials
Corrosive Atmosphere (ammonia, H₂S) → Stainless steel or coated components
Dust & Particulates → Sealed bearings and ingress protection (IP55/IP65)
Temperature Range – Operates reliably in -20°C to +50°C
B. Performance Parameters
|
Parameter |
Typical Range for Cattle Farms |
|
Airflow |
1,000–20,000 CFM |
|
Static Pressure |
0.1–0.5 inches H₂O |
|
Motor Power |
0.1–5 HP (100W–3.7kW) |
|
Speed Range |
300–2,500 RPM (adjustable) |
C. Durability Standards
IP Rating: IP55 (dust and water jet protection) minimum
Corrosion Resistance: Stainless steel 316 or polymer blades
Bearing Life: ≥ 60,000 hours (ceramic bearings preferred)
A. Stator & Rotor Configuration
Stator: Laminated steel core with high-temp enameled windings (Class F insulation)
Rotor: Permanent magnet (NdFeB or SmCo) for high torque density
Air Gap: Optimized for efficiency (0.5–1.0 mm typical)
B. Electronics & Control
Integrated Speed Controller: PWM or 0-10V DC input for variable speed
Protection Circuits: Overcurrent, overtemperature, and voltage spike protection
Communication Protocols: Modbus RTU, BACnet, or wireless (LoRaWAN for IoT farms)
C. Thermal Management
Cooling Method:
External Ribs (passive cooling for ≤1 HP)
Internal Fan (active cooling for >1 HP)
Temperature Sensors: Embedded PT100 or NTC for real-time monitoring
A. Blade Aerodynamics
Material: Fiberglass-reinforced polypropylene (lightweight, corrosion-resistant)
Profile: Optimized airfoil shape (e.g., NACA series) for high airflow efficiency
Number of Blades: 5–9 (balances noise and static pressure)

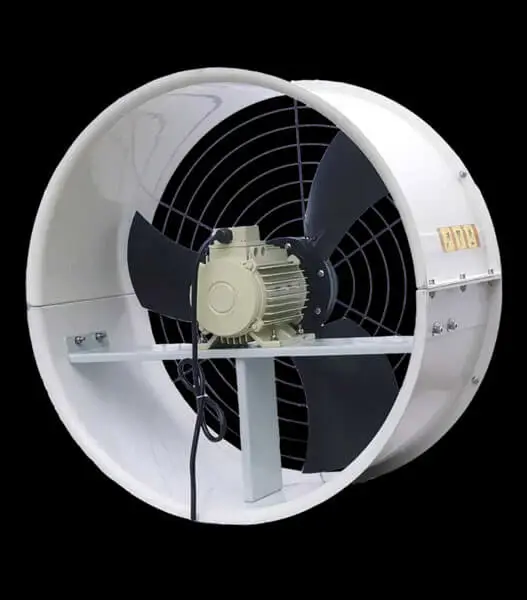

B. Housing Construction
Frame: Aluminum (lightweight) or galvanized steel (durable)
Inlet/Outlet: Bell-mouth design for smooth airflow
Vibration Isolation: Rubber gaskets to reduce noise transmission
A. Sensors & Automation
CO₂ & NH₃ Sensors – Adjust fan speed based on air quality
Temperature/Humidity Control – PID logic for optimal animal comfort
Cloud Monitoring – Remote diagnostics via farm management software
B. Energy-Saving Strategies
Nighttime Speed Reduction – Lower RPM when temperatures drop
Zoned Ventilation – Independent control for different barn sections
Demand-Based Ventilation – AI-driven airflow optimization
6.1 Thermal Management
❌ Challenge: Stator temperature rise less than 50K
✅ Solutions:
• Aircooled motor housing design
• Improve the insulation design
• Integrated VFD control drive to control the accurate current
6.2 High Torque But Low Speed (Example: 21Nm toruqe but 1000RPM)
❌ Challenge: Usually, high speed motor can meet high torque output
✅ Solutions:
• Design of 8-grade 48-slot silicon steel sheets with 80mm height. Use the NdFeB permanent magnet materies.
• Perfect structure design of EC motor+electromagnetic simulation software to meet 21Nm output with 1000RPM speed.
4.3 High Initial Cost
❌ Challenge: 2–3× more expensive than induction motors
✅ Solutions:
• ROI in 2–3 years via energy savings
• Modular designs for easier retrofitting
ebm-papst (Energy-efficient EC farm fans)
Ziehl-Abegg (High-static pressure designs)
Rosenberg (Corrosion-resistant agricultural fans)
Vostermans (Specialized livestock ventilation)
Power Jack Motion (Energy-efficient brsuhless blower)
|
Issue |
Cause |
Solution |
|
Reduced Airflow |
Dust-clogged blades |
Clean blades monthly |
|
Bearing Noise |
Wear or lack of lubrication |
Replace with sealed bearings |
|
Motor Overheating |
Blocked cooling vents |
Ensure proper clearance (≥30cm) |
EC axial fans with optimized motor designs provide energy-efficient, durable, and smart ventilation for modern cattle farms. Key considerations include corrosion resistance, variable speed control, and IoT integration for automated airflow management. Would you like a cost-benefit analysis comparing EC vs. AC fans, or CFD simulation recommendations for airflow optimization? Contact with our EC motor engineer team.
