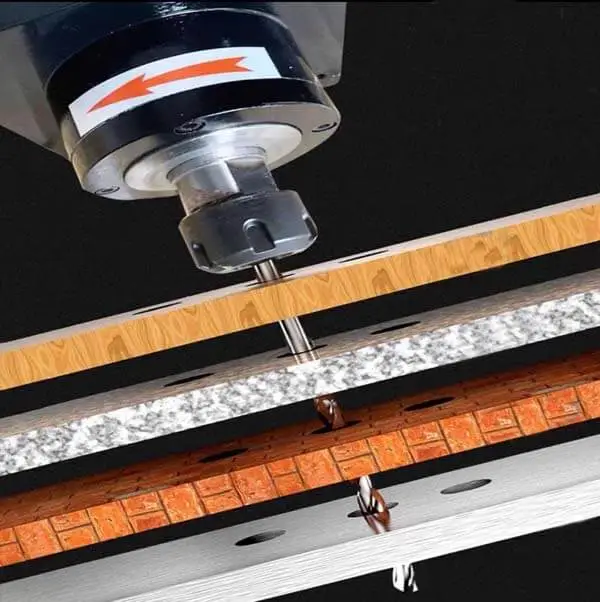

A spindle motor is a high-precision, high-speed electric motor designed to rotate cutting tools (in CNC machines) or workpieces (in lathes) with extreme accuracy. These motors are the "heart" of machining systems, determining the quality of cuts, surface finishes, and production speed.
|
Component |
Function |
|
Rotor |
Rotating part with permanent magnets or windings |
|
Stator |
Stationary part with electromagnetic coils |
|
Bearings |
Support the shaft (ceramic, angular contact, or air bearings) |
|
Cooling System |
Liquid or air cooling to prevent overheating |
|
Encoder |
Provides precise speed/position feedback (optical or magnetic) |
|
Tool Interface |
BT, HSK, or ISO taper for attaching cutting tools |

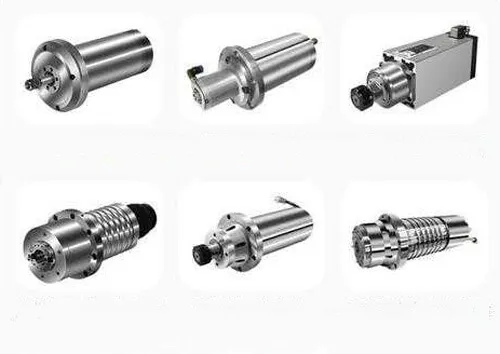

A. By Power Source
|
Type |
Pros |
Cons |
Applications |
|
AC Induction |
Rugged, low cost |
Lower precision, speed |
Woodworking, basic milling |
|
Brushless DC |
High speed, good control |
Requires controller |
CNC routers, 3D printers |
|
Servo Spindle |
Extreme precision, high torque |
Expensive |
Aerospace, medical machining |
B. By Bearing Type
Ball Bearings: Affordable, common (<15k RPM)
Ceramic Bearings: Higher speed, less heat (15k-30k RPM)
Air Bearings: Ultra-high speed, zero friction (>30k RPM)
Magnetic Bearings: No contact, maintenance-free (specialized applications)
|
Parameter |
Typical Range |
Why It Matters |
|
Speed (RPM) |
3,000 - 90,000+ |
Determines cut quality & material compatibility |
|
Power (kW/HP) |
0.5 - 50 kW |
Affects torque & cutting force |
|
Torque (Nm) |
0.1 - 500 Nm |
Impacts ability to cut hard materials |
|
Runout (µm) |
<1µm (high precision) |
Lower runout = better surface finish |
|
Cooling Method |
Air, water, oil |
Prevents thermal deformation |

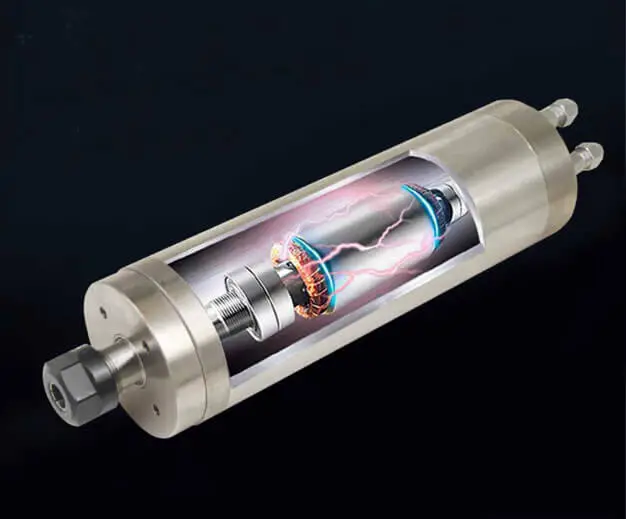

1. Power Delivery: AC/DC power converted to 3-phase current.
2. Magnetic Rotation: Stator coils create a rotating magnetic field.
3. Precision Control: Encoder feedback adjusts speed via VFD (Variable Frequency Drive).
4. Cooling System: Maintains stable temperature during operation.
5. Tool Holding: Collet or hydraulic chuck secures the cutting tool.

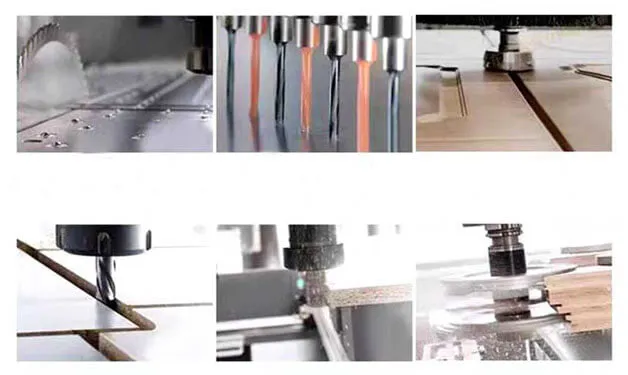

CNC Machines: Milling, engraving, drilling
Lathes: Precision turning
Grinders: Surface finishing
PCB Drilling: High-speed micro-hole drilling
Dental/Medical: Implant machining
Siemens (Industrial-grade)
Fischer Precise (High-speed)
HSD (CNC routers)
NSK (Air bearing spindles)
Colombo (Woodworking)
Power Jack Motion (PMSM motor stator and rotor design)
✅ Daily: Check for unusual vibrations/noise
✅ Weekly: Lubricate bearings (if not sealed)
✅ Monthly: Inspect tool holder taper for wear
✅ Annually: Replace bearings (if high-hours)
|
Problem |
Likely Cause |
Solution |
|
Overheating |
Coolant failure, bad bearings |
Check coolant pump, replace bearings |
|
Vibration |
Unbalanced tool, bearing wear |
Rebalance tool, inspect spindle |
|
Speed Fluctuation |
Encoder fault, VFD issues |
Test encoder, check drive settings |
Smart Spindles: IoT-enabled with vibration/temp sensors
Hybrid Bearings: Combine ceramic + air bearing tech
Higher Speeds: 100,000+ RPM for micromachining
Spindle motors are precision workhorses that determine machining capabilities. Key selection factors: speed, torque, bearing type, and cooling. For hobbyists, brushless DC spindles offer a good balance; for industrial use, servo-controlled or air-bearing spindles deliver top performance.
Need help choosing a spindle? Ask about:
• Your material (aluminum vs. steel)
• Required precision (µm-level?)
• The max speed
• The constant torque
• Budget constraints
