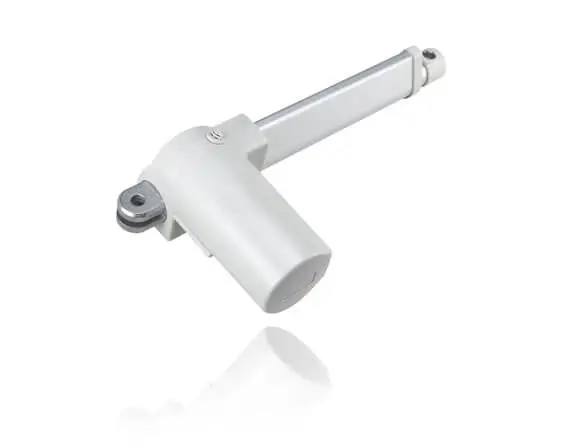

Linear Actuator Design for Medical Chairs: Precision, Safety, and Patient Comfort



1. Introduction

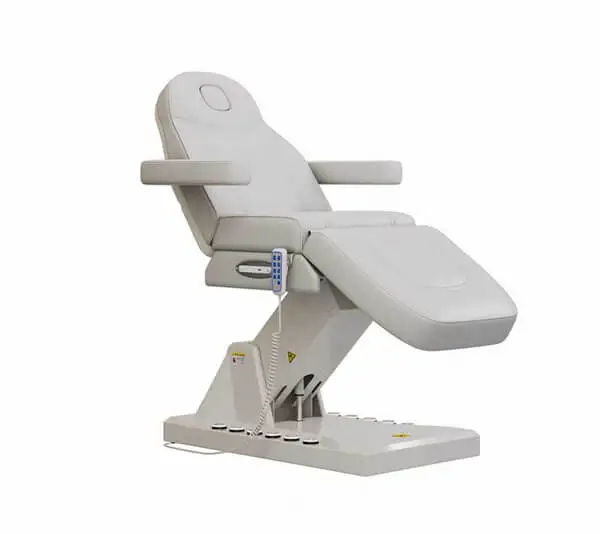

Medical chairs (dental, examination, surgical) require high-precision, ultra-reliable linear actuators for smooth height/tilt adjustment while ensuring patient safety and caregiver ergonomics. This guide covers critical design aspects for medical-grade linear actuators.



2. Key Requirements

Parameter	Medical Chair Specification	Rationale
Load Capacity	150-300kg (dynamic)	Supports patient + equipment
Speed	10-30mm/s	Smooth, controlled movement
Noise Level	<45dB(A)	Patient comfort
Position Accuracy	±0.5mm	Precise clinical positioning
Safety Standard	IEC 60601-1, ISO 13485	Medical device compliance
Duty Cycle	10-20% (intermittent)	Prevents overheating



3. Critical Design Components

3.1 Drive Mechanism Options



Type	Pros	Cons	Best For
Ball Screw	High precision (±0.01mm), 90% efficiency	Higher cost	Surgical chairs
Lead Screw	Self-locking, cost-effective	Lower efficiency (40%)	Basic exam chairs
Belt Drive	Quiet, high speed	Requires tension maintenance	Dental chairs
Piezoelectric	Nanometer precision	Limited stroke	Micro-adjustments

3.2 Motor Selection

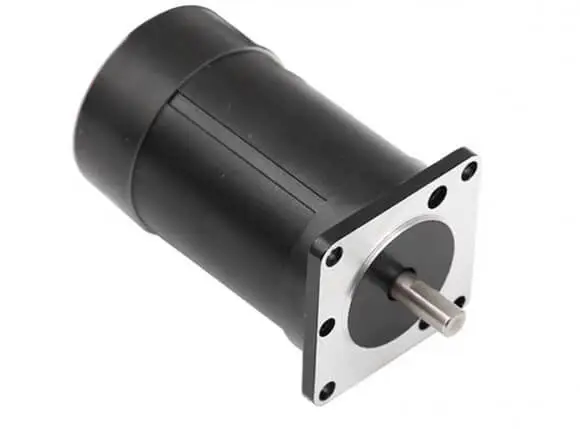

Brushless DC (BLDC) Motors:

24V/48V versions for safety

Integrated encoders (1000+ CPR)

Torque: 2-5Nm continuous

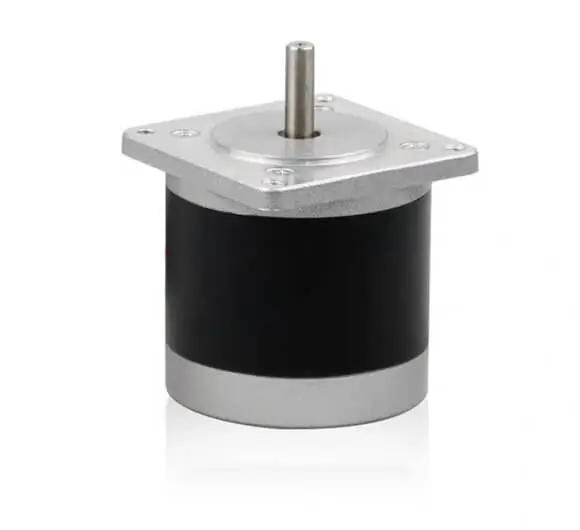

Stepper Motors (for open-loop systems):

1.8° step angle

Holding brake option



3.3 Safety Systems

Redundant limit switches (optical + mechanical)

Torque sensing (auto-stop at 50N overload)

Pinch protection (capacitive sensors)

Emergency manual override



4. Medical-Grade Materials

Component	Material	Compliance
Housing	Anodized Aluminum (IP54)	ISO 10993-5
Screw/Nut	316L Stainless Steel	FDA 21 CFR 177
Seals	Medical-grade silicone	USP Class VI
Lubricant	PFPE-based grease	ISO 10993

5. Specialized Features for Medical Use

5.1 Cleanability

Smooth surfaces with <0.8μm Ra roughness

Sealed cable glands (IP54 minimum)

Chemical-resistant coatings



5.2 Position Feedback

Absolute magnetic encoders (17-bit resolution)

Hall-effect sensors for end positions

CANopen/RS485 interface for integration



5.3 Ergonomic Controls



Programmable acceleration profiles (jerk <5m/s³)

Memory presets (3-5 positions)

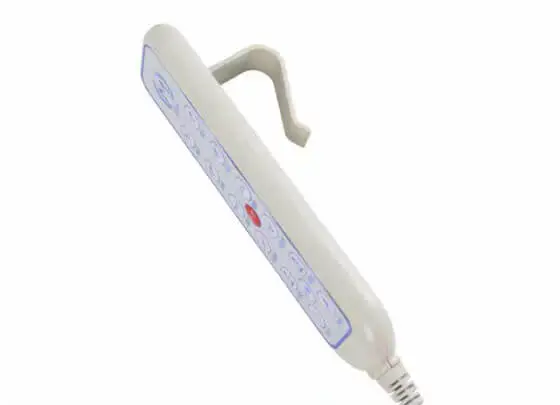

Foot pedal/voice control compatibility



6. Case Study: Surgical Chair Actuator Failure

Problem:
Actuator stalling during procedures due to:

Particulate contamination

Lubricant degradation

EMI interference

Solution:
IP65 sealed actuator with wiper seals

Dry lubricant (MoS₂ coating)

Ferrite filters on motor cables

Results:
✔ MTBF increased from 5,000 to 25,000 cycles
✔ Service life extended by 400%
✔ Zero EMI-related incidents



7. Maintenance Protocol

• Daily: Visual inspection for leaks/damage

• Weekly: Load test (verify <5% speed variation)

• Monthly:

Lubrication check (if applicable)

Limit switch verification

• Annual:

Full load cycle test

Insulation resistance check (>100MΩ)



8. Compliance Checklist

✓ IEC 60601-1 (Electrical Safety)
✓ ISO 14971 (Risk Management)
✓ FDA 21 CFR 890.3470 (Rehabilitation Equipment)
✓ EU MDR 2017/745



Conclusion



Medical chair actuators demand exceptional reliability, precision, and cleanability. By combining medical-grade materials, smart feedback systems, and robust safety features, designers can create systems that enhance both patient outcomes and clinical workflows. The future lies in self-maintaining, intelligent actuators that adapt to user needs.



Need assistance with your medical actuator design? We can provide:

• Torque/speed calculations

• Material selection guides

• Compliance documentation templates

• FMEA risk analysis frameworks
