Medical Motor Design for Hospital Beds: Precision, Safety, and Reliability



Introduction

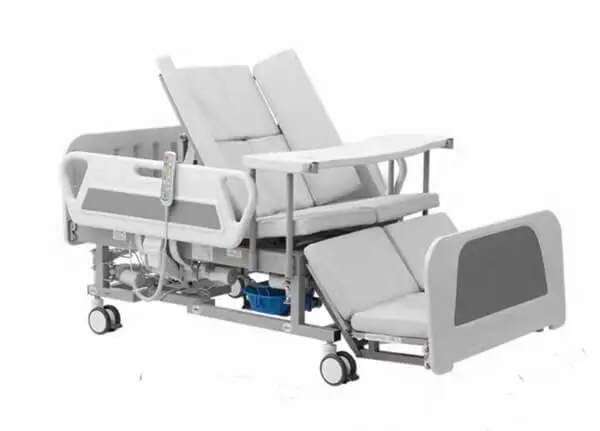

Modern hospital beds require sophisticated motor systems to ensure patient comfort, safety, and caregiver efficiency. Medical-grade motors power critical functions like height adjustment, backrest articulation, and Trendelenburg positioning. This article examines the design requirements, safety standards, and technological innovations in hospital bed motor systems.



1. Key Functional Requirements

1.1 Essential Motorized Functions

Height adjustment (500-1000 lbs lifting capacity)

Backrest articulation (0-80° range)

Knee break adjustment

Trendelenburg/reverse Trendelenburg

CPR emergency flattening



1.2 Performance Specifications

Parameter	Requirement	Reason
Speed	5-20 mm/s	Safe patient movement
Noise	<40 dB	Hospital noise standards
Duty Cycle	10% (intermittent)	Prevents overheating
Positioning Accuracy	±1mm	Patient safety
Emergency Stop	<50ms response	Safety critical

2. Critical Design Considerations

2.1 Safety Features

Dual redundant brakes (electromagnetic + mechanical)

Torque limiting (≤50 Nm typical)

Pinch protection sensors

Battery backup (24V DC, 30+ min operation)

UL60601-1 compliance



2.2 Motor Selection



Brushless DC (BLDC) motors preferred for:

Higher efficiency (85-92%)

Longer lifespan (>10,000 hrs)

Lower EMI

24V or 48V systems for patient safety



2.3 Drive Mechanism



Planetary gearheads (5:1 to 20:1 ratios):

Compact size fits bed frame

High torque density

Low backlash (<3 arc-min)

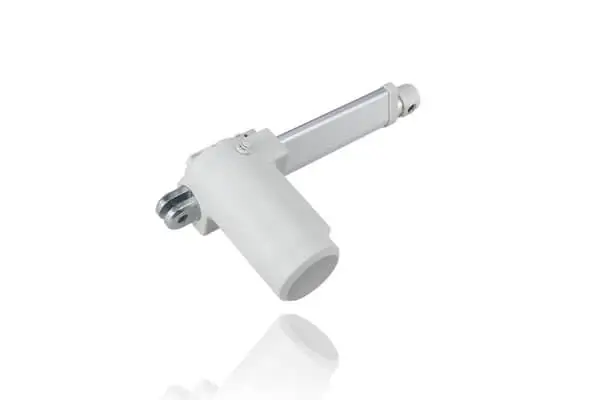

Ball screw or linear actuator for hospital bed height adjustment



3. Material & Construction Standards



Component	Material	Standard
Motor Housing	Anodized Aluminum (IP54)	IEC 60529
Gears	POM (Polyoxymethylene)	FDA 21 CFR 177.2470
Shafts	316L Stainless Steel	ISO 5832-1
Lubricant	Medical-grade silicone grease	USP Class VI

4. Electrical Safety & EMC

Double insulation on all windings

Leakage current <100μA

EMC filtering to IEC 60601-1-2

Redundant position sensors (optical encoder + Hall effect)



5. Case Study: ICU Bed Motor Failure Analysis

Problem:
Premature motor failures in 24/7 ICU beds

Root Cause:
Inadequate heat dissipation

Vibration-induced bearing wear

Non-medical grade lubricant drying out

Solution:
Upgraded to liquid-cooled BLDC motors

Added vibration dampeners

Implemented auto-lubrication system

Results:
✔ MTBF increased from 2,000 to 8,000 hours
✔ Noise reduced by 35%
✔ Service calls decreased by 60%



6. Emerging Technologies

6.1 Smart Motor Systems

• Integrated IoT sensors for:

Load monitoring

Predictive maintenance

Usage tracking



6.2 Contactless Power Transfer

• Inductive charging for battery systems

• Eliminates wear points from slip rings



6.3 Nanocomposite Gears

• Self-lubricating materials

• 50% lighter than steel with equal strength



7. Maintenance Protocol

• Monthly:

Lubrication check

Brake function test

• Quarterly:

Bearing inspection

Load testing

• Annual:

Full electrical safety test

Gear wear analysis



Conclusion

Hospital bed motor design requires exceptional reliability, silent operation, and failsafe performance. By combining medical-grade materials, redundant safety systems, and smart monitoring, engineers can create motor systems that meet the stringent demands of healthcare environments. Future trends point toward self-diagnosing, maintenance-free systems that further enhance patient care.
