With the increased global demand for disposable face masks, production efficiency has become critical. Planetary gearboxes play a vital role in mask-making machines by providing high torque, precision motion control, and compact power transmission for high-speed automation. This article examines the design requirements, material selection, and application-specific considerations for planetary gearboxes in mask production equipment.

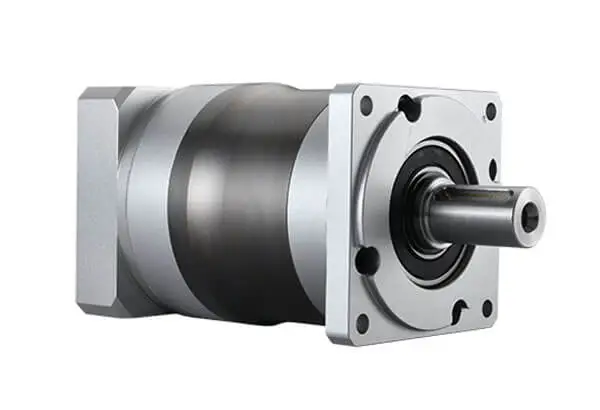

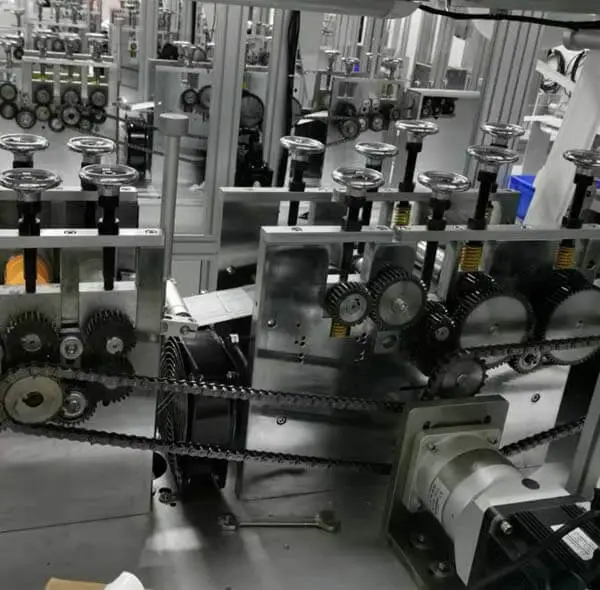

Planetary gearboxes are used in several mask machine components:
1.1 Ultrasonic Welding Systems
Provides precise pressure control for ear-loop welding
Requires high torque at low speeds (20-100 RPM)
Must withstand vibrational loads from ultrasonic horns
1.2 Feeding & Conveyor Mechanisms
Ensures synchronized material feeding of non-woven fabric
Needs smooth speed regulation (50-300 RPM)
Requires low backlash to prevent misalignment
1.3 Nose Wire Insertion Units
Delivers intermittent motion for precise wire placement
Demands high positioning accuracy (±0.1mm)
Must handle frequent start-stop cycles
1.4 Folding & Pleating Stations
Provides controlled folding motion (100-500 RPM)
Needs shock resistance due to reciprocating action
|
Parameter |
Specification |
Reason |
|
Speed Range |
20-600 RPM |
Matches mask production speeds |
|
Torque Capacity |
5-50 Nm |
Handles ultrasonic welding loads |
|
Backlash |
<5 arc-min |
Prevents misalignment in feeding |
|
Efficiency |
≥93% |
Reduces energy costs in 24/7 operation |
|
Noise Level |
<65 dB |
Factory noise compliance |
|
Duty Cycle |
Continuous (24/7) |
High-volume production demands |
3. Specialized Design Features
3.1 Compact & Lightweight Construction
Hollow shaft design allows integration with servo motors
Aluminum alloy housing reduces weight while maintaining rigidity
Flat-profile gears save space in machine frames
3.2 Vibration Damping
Helical gears instead of spur gears reduce noise
Elastic couplings absorb ultrasonic welding shocks
Vibration-isolating mounts prevent resonance
3.3 Cleanroom Compatibility
Food-grade grease lubrication (NSF H1 certified)
IP54 sealed bearings prevent fiber dust ingress
Stainless steel shafts where contact with mask material occurs
|
Component |
Material Choice |
Advantage |
|
Gears |
16MnCr5 case-hardened steel |
Wear resistance |
|
Planet Carrier |
Anodized aluminum 6061 |
Lightweight, corrosion resistant |
|
Output Shaft |
Stainless steel 17-4PH |
Prevents contamination |
|
Bearings |
Ceramic hybrid bearings |
No lubrication needed |
|
Housing |
Aluminum alloy with hard coat |
EMI shielding for servo motors |
Problem:
A manufacturer needed to increase production from 100 to 300 masks/minute while reducing downtime from gear wear.
Solution:

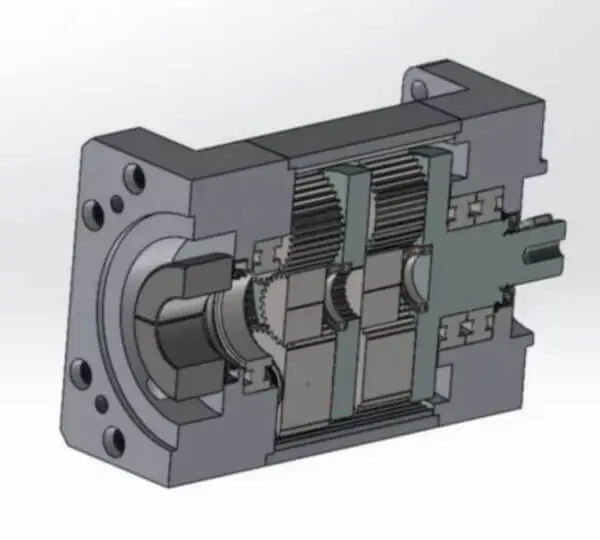

Implemented 2-stage planetary gearbox with:
• 30:1 reduction ratio
• Precision ground helical gears
• Integrated torque limiter
Added condition monitoring sensors for predictive maintenance
Results:
✔ Production increased by 200%
✔ Gearbox lifespan extended by 400%
✔ Energy consumption reduced by 18%
• Lubrication: Use synthetic grease with 6-month intervals
• Alignment: Laser-align gearbox to motor within 0.05mm
• Monitoring: Install vibration sensors to detect early wear
• Cleaning: Compressed air purge ports for dust removal
Integrated servo motor gearbox units for smarter motion control
Self-lubricating nanocomposite gears for maintenance-free operation
Additive-manufactured titanium carriers for weight reduction
Planetary gearboxes are the power behind precision in mask manufacturing. By optimizing for compactness, cleanliness, and durability, engineers can ensure reliable performance in high-speed production environments. As mask technology evolves toward nanofiber materials and AI quality control, gearbox designs must adapt with smarter, more efficient transmission solutions.
Need help customizing a gearbox for your specific mask machine configuration? We can provide detailed CAD models or calculation sheets for your application.
