Planetary Gearbox Design for the Textile Industry: Precision, Durability, and Efficiency

Introduction

The textile industry relies heavily on high-speed, precision machinery for spinning, weaving, knitting, and dyeing processes. Planetary gearboxes play a critical role in ensuring smooth power transmission, high torque density, and reliable performance in textile manufacturing equipment. This article explores the design considerations, material selection, and key applications of planetary gearboxes in the textile industry.

1. Why Planetary Gearboxes in Textile Machinery?

Planetary gear systems are preferred in textile applications due to their:
✔ High torque-to-weight ratio – Compact yet powerful, ideal for space-constrained machines.
✔ Low backlash – Ensures precise motion control in winding and tensioning systems.
✔ High efficiency (≥95%) – Reduces energy loss in continuous operation.
✔ Balanced load distribution – Multiple planet gears share the load, improving durability.

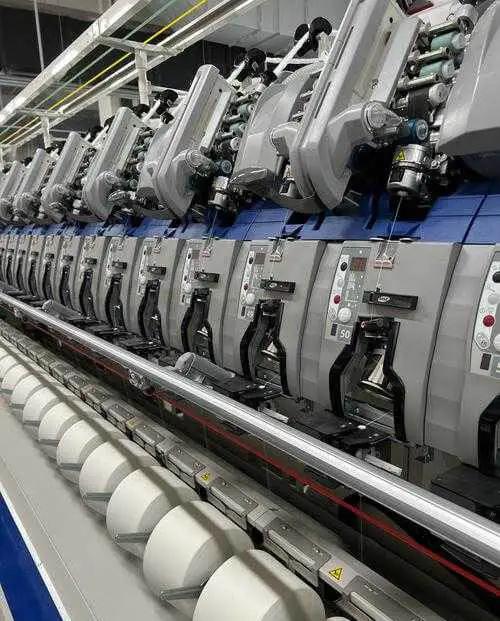

Common Textile Machines Using Planetary Gearboxes:

Ring spinning frames

Warp knitting machines

Weaving looms

Dyeing and finishing equipment

Yarn winding and twisting machines

2. Key Design Considerations for Textile Industry Gearboxes

2.1 Speed & Torque Requirements

Textile machines often require high-speed operation (1000–6000 RPM) with controlled acceleration.

Variable load conditions (e.g., yarn tension fluctuations) demand robust torque handling.

2.2 Precision & Backlash Control

Backlash must be minimized (<5 arc-min) to prevent yarn breakage and ensure uniform fabric quality.

Precision-ground gears and preloaded bearings help maintain accuracy.

2.3 Noise & Vibration Reduction

Textile factories require low-noise operation (<70 dB).

Helical gears (instead of spur gears) reduce vibration.

Damping materials in housing help absorb shocks.

2.4 Lubrication & Sealing

Dry or semi-dry lubrication prevents oil contamination in yarn processing.

IP65 or higher sealing protects against dust and humidity.

2.5 Thermal Management

Continuous operation generates heat; forced air cooling or oil circulation may be needed.

3. Material Selection for Textile Planetary Gearboxes

4. Common Planetary Gearbox Configurations in Textile Machines

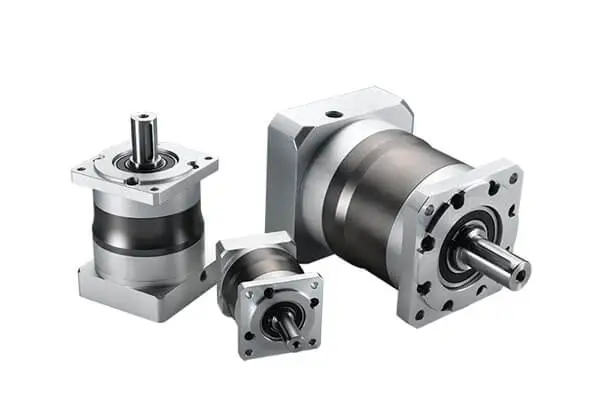

4.1 Single-Stage vs. Multi-Stage Planetary Gearbox Designs

Single-stage (3:1 to 10:1 ratio) – Used in high-speed winding machines.

Multi-stage (10:1 to 100:1 ratio) – For heavy-duty looms and spinning frames.

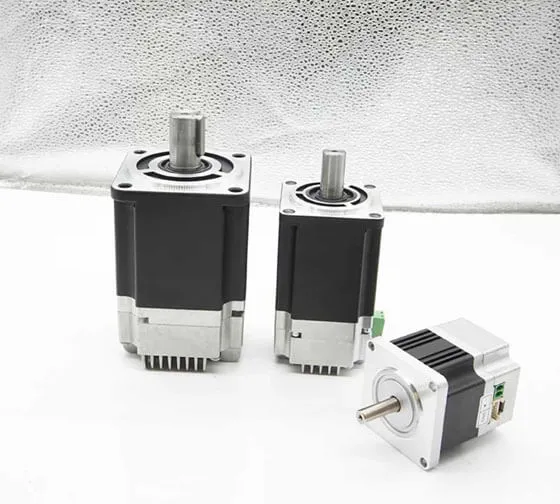

4.2 Integrated Servo Motor Drives

Direct-coupled planetary gearboxes with servo motors enable precise electronic tension control.

Closed-loop feedback systems adjust speed dynamically for uniform yarn quality.

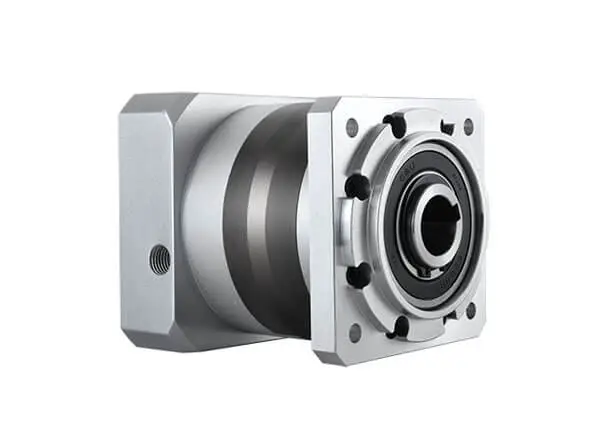

4.3 Hollow Shaft Planetary Gearbox Designs

Allows yarn/fiber to pass through (common in winding applications).

5. Case Study: Planetary Gearbox in a High-Speed Weaving Loom

Problem:
A textile manufacturer faced frequent gear wear and yarn breakage due to inconsistent tension control.

Solution:
• A 3-stage planetary gearbox with helical gears was implemented.

• Precision bearings and low-backlash design improved yarn handling.

• Integrated servo control adjusted torque in real-time.

Results:
✔ 30% longer gear life
✔ Reduced yarn breakage by 50%
✔ Energy savings of 15% due to higher efficiency

6. Future Trends in Textile Gearbox Technology

Smart Gearboxes with IoT Sensors – Predictive maintenance to prevent downtime.

Magnetic Gearing – No-contact power transmission for ultra-high speeds.

Lightweight Composite Materials – Reducing inertia for faster acceleration.

Conclusion

Planetary gearboxes are indispensable in textile manufacturing, providing high torque, precision, and reliability in demanding environments. Proper design—focusing on low backlash, thermal management, and material selection—ensures optimal performance in spinning, weaving, and dyeing applications. As textile machinery evolves toward automation and Industry 4.0, planetary gear systems will continue to play a pivotal role in enhancing efficiency and product quality.
