Linear Stepper Motor: Design and Selection Guide

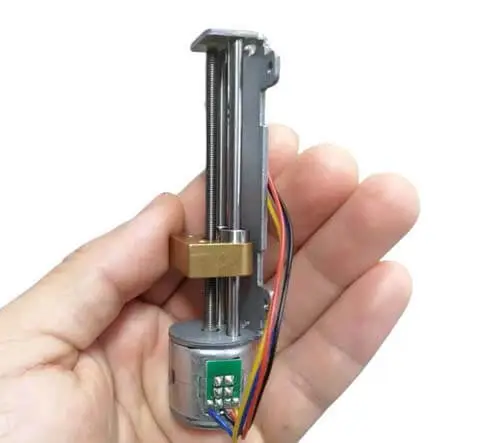

1. Introduction to Linear Stepper Motors



A linear stepper motor converts digital pulses into precise linear motion without requiring feedback systems (open-loop control). It is widely used in applications requiring accurate positioning, such as:



  • 3D Printers

  • CNC Machines

  • Medical Devices

  • Automated Test Equipment

  • Optics & Laser Systems



2. Key Design Considerations

(1) Motor Types





Type	Description	Pros	Cons	Applications
Variable Reluctance (VR)	Uses a toothed iron rotor	Low cost, simple design	Lower torque, no detent force	Low-cost positioning
Permanent Magnet (PM)	Contains a magnetized rotor	Higher torque, better holding force	Limited resolution	General automation
Hybrid (HB)	Combines VR + PM features	High torque, fine resolution	More expensive	Precision machinery

(2) Force & Speed Requirements

  • Force (Thrust):

      ♦ Calculate required force considering friction, acceleration, and payload.

      ♦ Typical range: 1N to 500N (higher forces may require ball screws).



  • Speed:

      ♦ Stepper motors lose torque at higher speeds (use microstepping for smoother motion).



(3) Resolution & Accuracy

  • Step Angle: Common (1.8° or 0.9° per full step).

  • Microstepping: Enhances smoothness (e.g., 1/16, 1/32 microsteps).

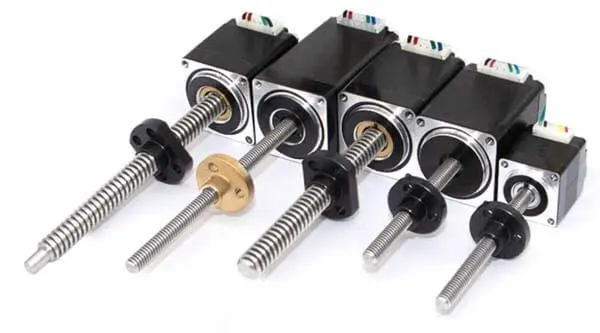

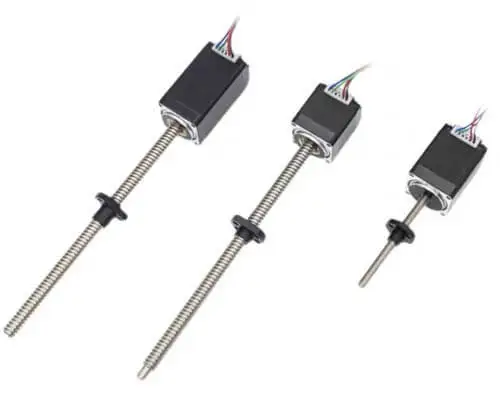

  • Leadscrew/Pitch Selection: Affects linear resolution (e.g., 2mm lead → 0.01mm/step with microstepping).





(4) Mechanical Integration

  • Mounting: Ensure proper alignment to avoid binding.

  • Backlash: Minimize with anti-backlash nuts or preloaded systems.

  • Cooling: Avoid overheating with heat sinks or forced air (if running at high duty cycles).



3. Selection Process



Step 1: Define Application Requirements

  • Load Mass (kg)

  • Travel Distance & Speed (mm/s)

  • Positioning Accuracy (µm/mm)

  • Duty Cycle (Continuous/Intermittent)



Step 2: Calculate Required Force

Use:

Ftotal=Faccel +Ffriction+F gravity (ifvertical)



Where:

Faccel=m×a (mass × acceleration)

Ffriction =μ×m×g (µ = friction coefficient)



Step 3: Choose Motor & Drive

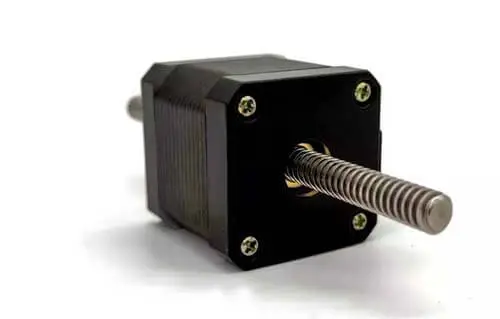

  • Motor Size: NEMA 17, 23, 34 (higher frame = more torque).

  • Driver Selection:

      ♦ Constant Current (Better Heat Management)

      ♦ Microstepping Capability (Smoother Motion)

      ♦ Voltage Rating (Higher = Better High-Speed Performance)



Step 4: Verify Performance

  • Torque-Speed Curve: Ensure sufficient force at operating speed.

  • Thermal Limits: Avoid exceeding motor temperature ratings.



4. Example Selection for CNC Machine





Parameter	Value
Load Mass	5 kg
Max Speed	200 mm/s
Acceleration	2 m/s²
Travel	300 mm
Accuracy	±0.05 mm
Selected Motor	NEMA 23 Hybrid Stepper
Driver	48V, 1/32 Microstepping
Leadscrew	5mm Pitch, Anti-Backlash Nut



5. Common Mistakes to Avoid

❌ Underpowered Motor → Stalling at high speeds.
❌ Poor Cooling → Thermal shutdown in continuous duty.
❌ Incorrect Microstepping → Vibration/resonance issues.
❌ Mechanical Misalignment → Increased wear & reduced accuracy.



6. Conclusion

  ► Hybrid steppers offer the best balance of torque & precision.

  ► Microstepping drivers improve smoothness and reduce noise.

  ► Proper force calculation ensures reliable operation.



For high-speed/high-precision needs, consider closed-loop steppers or linear servo motors as alternatives.
