1. Introduction

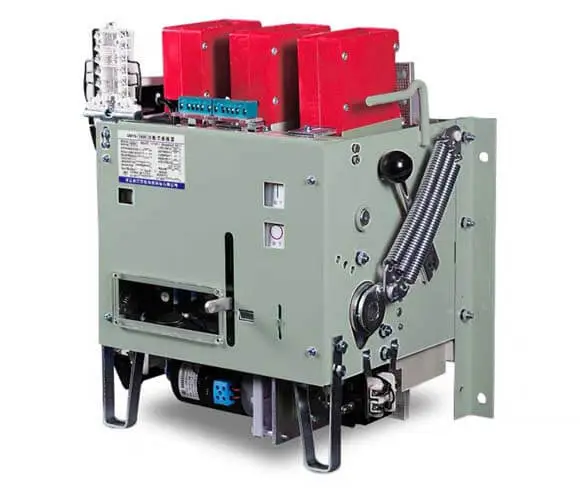

Universal motors (a type of series-wound motor capable of operating on both AC and DC power) are widely used in industrial circuit breakers due to their high starting torque, compact size, and rapid response. These characteristics make them ideal for driving the spring charging mechanisms, contact opening/closing systems, and trip units in low-voltage and medium-voltage circuit breakers.
2. Key Advantages in Circuit Breaker Applications
High Starting Torque: Enables quick compression of springs or instant contact movement, ensuring fast breaker operation (typically within 50–100 ms).
Compact Design: Fits into the limited space of breaker enclosures.
Wide Voltage Compatibility: Works on both AC (e.g., 110V/220V) and DC (e.g., 24V/48V) supplies, enhancing flexibility.
Cost-Effectiveness: Lower manufacturing cost compared to servo or stepper motor alternatives.
3. Functional Roles in Circuit Breakers
Universal motors are primarily used for:

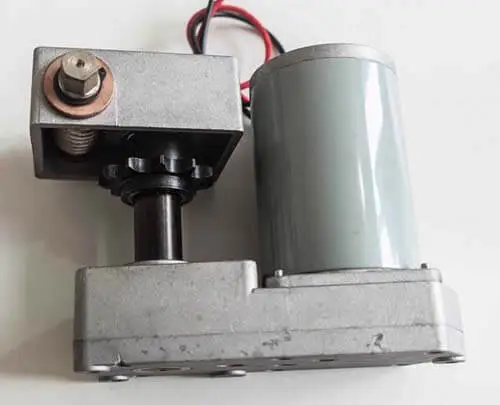

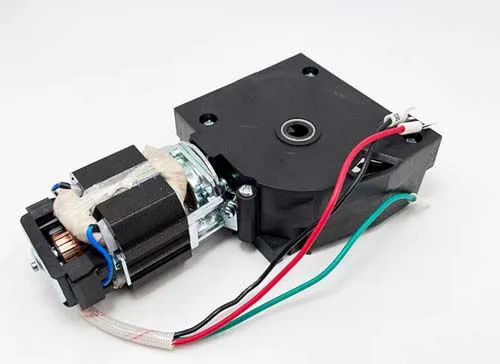

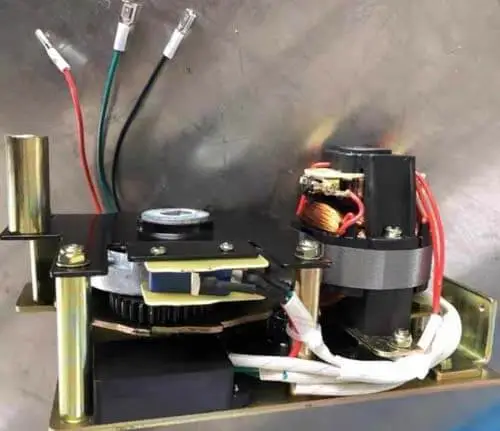

Spring Charging Mechanism:
• Drives gear trains to store mechanical energy in springs for quick breaker operation.
• Example: ABB Emax, Schneider Masterpact breakers.
Contact Closing/Optimized Switching:
• Provides instant torque to close heavy-duty contacts under load.
Emergency Manual Override Systems:
• Allows motorized and manual operation modes for redundancy.
4. Technical Challenges & Solutions
|
Challenge |
Solution |
|
Brush Wear (Due to frequent starts/stops) |
Use long-life carbon brushes or brushless designs. |
|
Speed Control (Risk of overspeeding) |
Integrate centrifugal governors or PWM-based electronic control. |
|
Electrical Noise (EMI from commutation) |
Add RC filters or shielded cabling. |
|
Heat Generation (High current inrush) |
Optimize winding design + forced cooling. |
5. Modern Alternatives & Trends
While universal motors remain popular, newer circuit breakers are adopting:
• Permanent Magnet DC (PMDC) Motors: Higher efficiency, no brush maintenance.
• Stepper/Servo Motors: For smart breakers requiring precise positioning.
• Hybrid Systems: Universal motor + supercapacitor for peak power delivery.
6. Conclusion
Universal motors continue to play a vital role in industrial circuit breakers due to their cost-performance balance and reliability. However, advancements in brushless motor technology and digital control systems are gradually reshaping the landscape. For critical applications, a hybrid approach (e.g., universal motor with electronic regulation) may offer the best compromise.
Need further customization? Specific breaker models or diagrams can be included. Please contact with our engineer team for your electric motor request.
