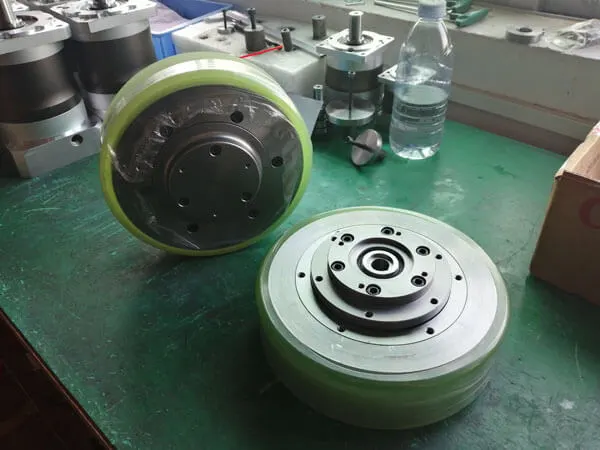

Designing a planetary gearbox for an Automated Guided Vehicle (AGV) drive requires careful consideration of torque, speed, space constraints, efficiency, and durability. Below is a step-by-step guide to designing a planetary gearbox suitable for AGV applications.
1. Design Requirements
• Before starting, define the key requirements:
• Input Speed (RPM): Motor speed (e.g., 3000 RPM).
• Output Speed (RPM): Desired wheel speed (e.g., 100 RPM).
• Torque Requirement: Based on AGV load, acceleration, and incline (e.g., 50 Nm).
• Efficiency: High (≥95% per stage).
• Size & Weight: Compact and lightweight.
• Durability: Long lifespan with minimal maintenance.
• Mounting: Compatibility with motor and wheel assembly.
• Backlash: Minimal for precise motion control.
2. Gear Ratio Calculation
Planetary gears offer high reduction ratios in compact spaces.
Gear Ratio (i) = Input Speed / Output Speed
Example:
If Motor Speed = 3000 RPM, Wheel Speed = 100 RPM
Gear Ratio = 3000 / 100 = 30:1
For high ratios, a multi-stage planetary gearbox (e.g., 2 or 3 stages) is used:
Stage 1: 5:1
Stage 2: 6:1
Total Ratio = 5 × 6 = 30:1
3. Planetary Gearbox Components

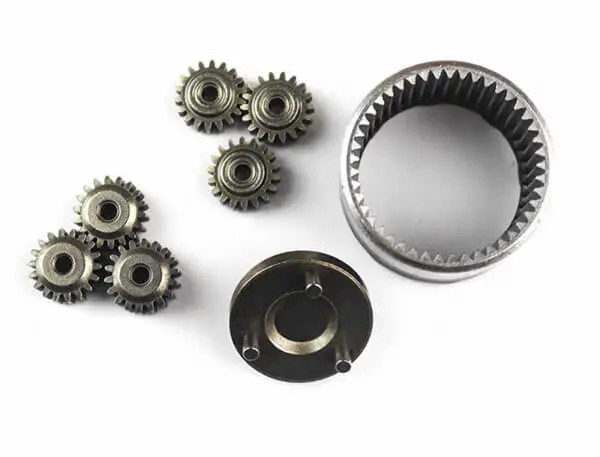

A planetary gear set consists of:
(1) Sun Gear (driven by motor input).
(2) Planet Gears (3-4 gears meshing with sun and ring gear).
(3) Ring Gear (stationary or rotating, depending on configuration).
(4) Carrier (connects planet gears to output shaft).
Common Configurations for AGVs:
• Fixed Ring Gear (Most Common):
Sun Gear → Input
Ring Gear → Fixed
Carrier → Output
Gear Ratio = 1 + (Ring Teeth / Sun Teeth)
• Fixed Carrier: Used for high-speed reductions.
4. Material Selection
Gears: Case-hardened steel (20MnCr5, 18CrNiMo7-6) for durability.
Ring Gear: Same material or sintered metals for cost efficiency.
Planet Carrier: Aluminum (lightweight) or steel (high torque).
Bearings: High-precision deep-groove or angular contact bearings.
5. Torque & Load Calculations
Input Torque (T_in):
Tin=Pmotor/2πNmotor
(Where Pmotor = motor power in Watts, Nmotor= motor speed in RPM)
Output Torque (T_out):
Tout=Tin×i×η
(Where η = efficiency, typically 0.95 per stage)
Tooth Load (F_t):
Ft=2Tin/dsun
(Where dsun= sun gear pitch diameter)
Safety Factor: ≥1.5 for AGV applications.
6. Gear Tooth Design (Module Selection)
Module (m): Determines tooth size (standard: 1-3 mm for AGVs).
Pitch Diameter (d):
d=m×z
(Where z = number of teeth)
Planet Gear Spacing:
(dsun+dplanet)=dring−dsun/2=
Contact Ratio: ≥1.2 for smooth operation.
7. Bearing & Housing Design
Planet Bearings: Needle roller bearings for compactness.
Output Shaft Bearing: Tapered roller bearings for axial loads.
Housing: Aluminum for weight savings or cast iron for rigidity.
8. Lubrication & Sealing
Lubrication: Grease (maintenance-free) or oil (high-performance).
Seals: IP65 or higher for dust/water resistance.
9. Backlash Control
Precision Gears: <10 arc-min for AGV positioning accuracy.
Adjustable Preload: Spring-loaded planet gears.
10. Prototyping & Testing
FEA Analysis: Check stress on gears and housing.
Efficiency Test: Ensure >90% overall efficiency.
Durability Test: Run under load for 500+ hours.
Example AGV Planetary Gearbox Specs
|
Parameter |
Value |
|
Motor Power |
400 W |
|
Input Speed |
3000 RPM |
|
Output Speed |
150 RPM |
|
Gear Ratio |
15:1 |
|
Output Torque |
120 Nm |
|
Weight |
<6 kg |
|
Efficiency |
≥90% |
|
Backlash |
<10 arc-min |
Conclusion

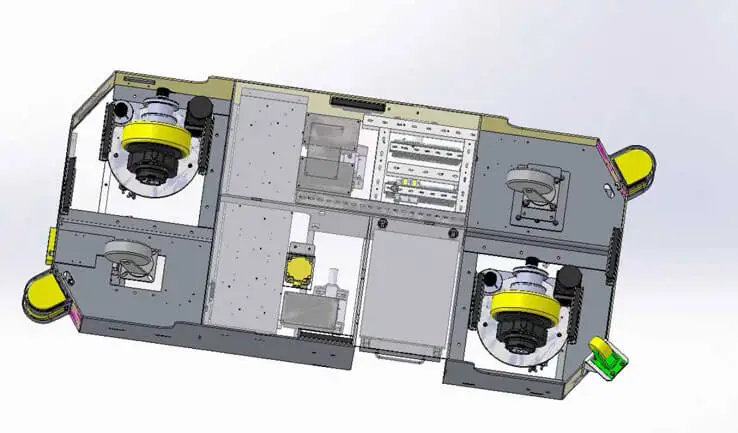

A well-designed planetary gearbox for AGVs should balance compactness, torque density, and efficiency. Multi-stage designs are common for high reductions, while material selection and precision manufacturing ensure reliability. Use CAD (SolidWorks, CATIA) and simulation tools (ANSYS, Romax) for validation before production.
