A gearbox (it mainly refer to gear reducer or named gearhead) is a mechanical system that modifies speed and torque between a power source (like a electric motor) and driven equipment. It uses gears to achieve precise power transmission while protecting machinery from excessive stress.
Key Functions:
✔ Speed Reduction/Increase (Gear ratios change RPM)
✔ Torque Multiplication (Higher torque at lower speeds)
✔ Direction Change (90° or 180° power redirection)
✔ Load Adaptation (Matches motor capability to load requirements)
2.1 By Gear Arrangement
|
Type |
Characteristics |
Efficiency |
Best For |
|

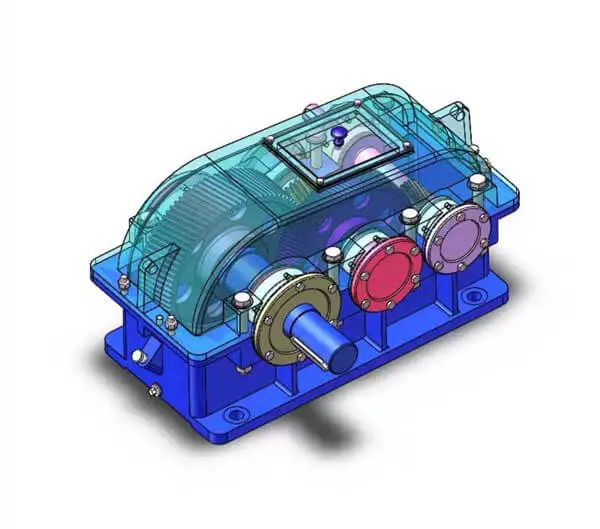

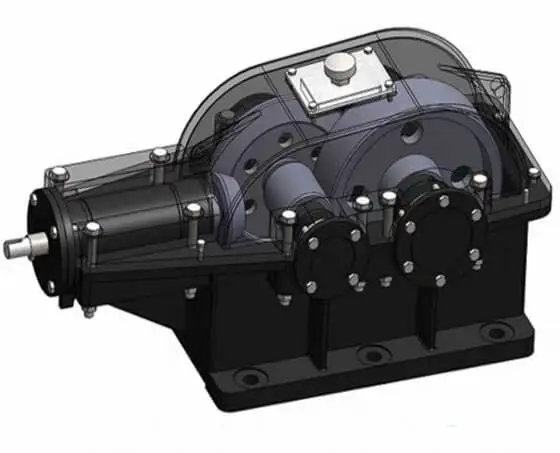

Parallel Shaft (Spur/Helical) |
Simple, cost-effective |
95-98% |
Conveyors, pumps |
|

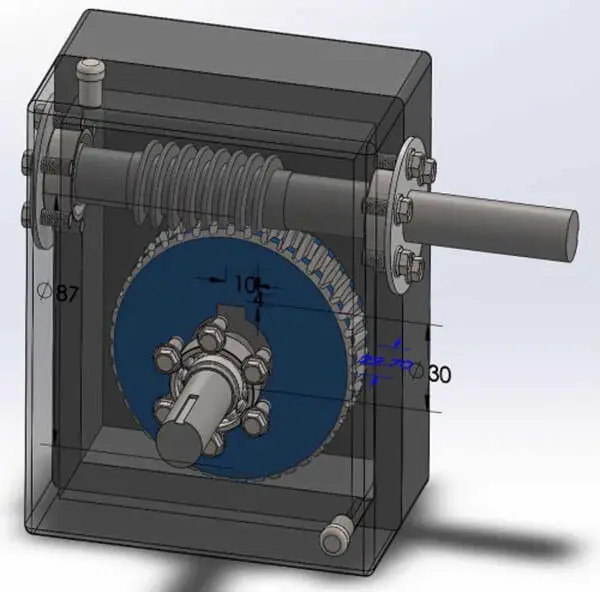

Right-Angle (Bevel/Worm) |
90° power transfer |
50-98% |
Packaging, lifts |
|
Planetary Gear |
Compact, high torque |
95-97% |
Robotics, EVs |
|
Harmonic Drive |
Zero backlash, high ratio |
80-90% |
Aerospace, medical |
2.2 By Application
Industrial Gearboxes: Heavy-duty (steel mills, crushers)
Precision Gearboxes: Low backlash (CNC, robotics)
Vehicle Transmissions: Manual/Automatic (cars, trucks)
Specialty Gearboxes: Custom ratios (wind turbines, marine)
3.1 Basic Principles
Gear Ratio = Input Teeth ÷ Output Teeth
*(Example: 30-tooth gear drives 60-tooth gear → 2:1 reduction)*
Torque Relationship:
Output Torque = Input Torque × Ratio × Efficiency
3.2 Key Components
✔ Input Shaft (Connects to power source)
✔ Gears (Spur, helical, worm, planetary)
✔ Output Shaft (Delivers modified power)
✔ Housing (Contains lubricant, protects components)
✔ Bearings (Support rotating elements)
|
Parameter |
Importance |
Typical Range |
|
Ratio |
Speed modification factor |
1.5:1 to 300:1+ |
|
Torque Rating |
Maximum safe output torque |
10Nm to 1,000,000Nm+ |
|
Efficiency |
Power loss through system |
50% (worm) to 98% (helical) |
|
Backlash |
Rotational play between gears |
<1 arc-min (precision) to 20 arc-min |
|
Mounting |
Installation configuration |
Foot, flange, shaft, hollow bore |
Manufacturing: Conveyors, extruders, presses
Transportation: Automotive transmissions, aircraft landing gear
Energy: Wind turbine gearboxes, hydroelectric plants
Robotics: Joint actuators, precision positioning
Construction: Cranes, concrete mixers
6.1 Key Selection Factors
Power Requirements (HP/kW and torque needs)
Speed Range (Input/Output RPM)
Duty Cycle (Continuous vs. intermittent operation)
Environmental Conditions (Temperature, dust, moisture)
Precision Needs (Backlash requirements)
6.2 Sizing Process
Determine input power and speed
Calculate required output speed/torque
Select appropriate gear type and ratio
Verify size meets space constraints
7.1 Lubrication Systems
Oil Bath: Most common method
Grease: For small/low-speed units
Forced Lubrication: For heavy-duty applications
7.2 Common Failure Signs
Unusual Noise (Gear wear, bearing failure)
Oil Leaks (Seal degradation)
Overheating (Insufficient lubrication)
Vibration (Misalignment, worn components)
✅ Smart Gearboxes (IoT-enabled condition monitoring)
✅ High-Efficiency Designs (Optimized gear tooth profiles)
✅ Composite Materials (Lightweight, durable gears)
✅ Integrated Motor-Gearbox Units (Compact mechatronic systems)
Gearboxes are fundamental power transmission components that enable efficient machinery operation across industries. Proper selection and maintenance ensure optimal performance and longevity.
