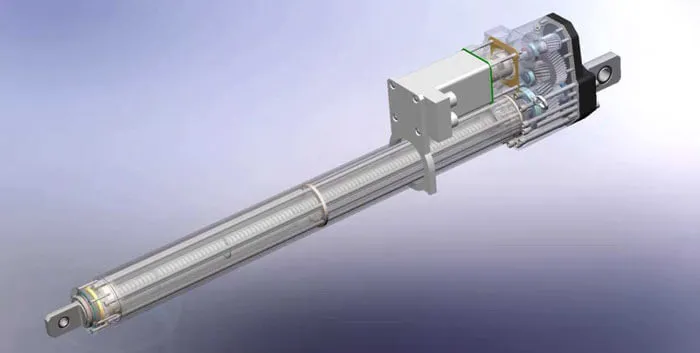

An electric linear actuator is a self-contained device that converts electrical energy into straight-line mechanical motion. Unlike hydraulic or pneumatic systems, it uses an electric motor to provide precise, programmable linear movement without pumps or compressors.
Key Advantages:
✔ Clean operation (no fluids/air leaks)
✔ Precise position control (down to 0.01mm)
✔ Quiet performance
✔ Easy integration with automation systems
2.1 Motor Types
DC Motors (12V/24V): Most common, cost-effective
AC Motors (110V/220V): Higher power for industrial use

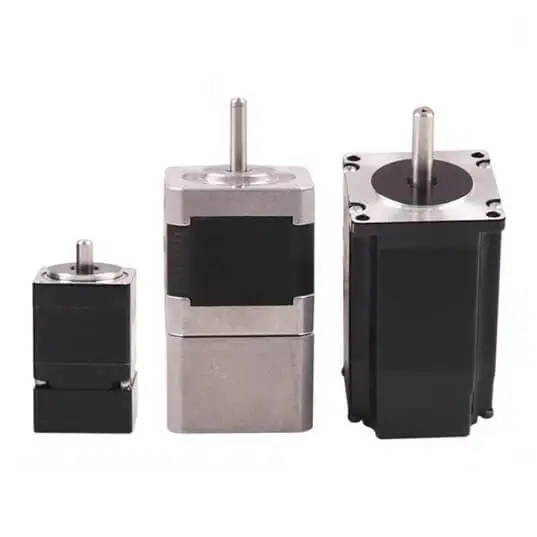

Stepper/Servo Motors: For precision positioning
2.2 Drive Mechanisms
|
Type |
Speed |
Precision |
Load Capacity |
Best For |
|
Lead Screw |
Slow |
Medium |
High |
Industrial presses |
|

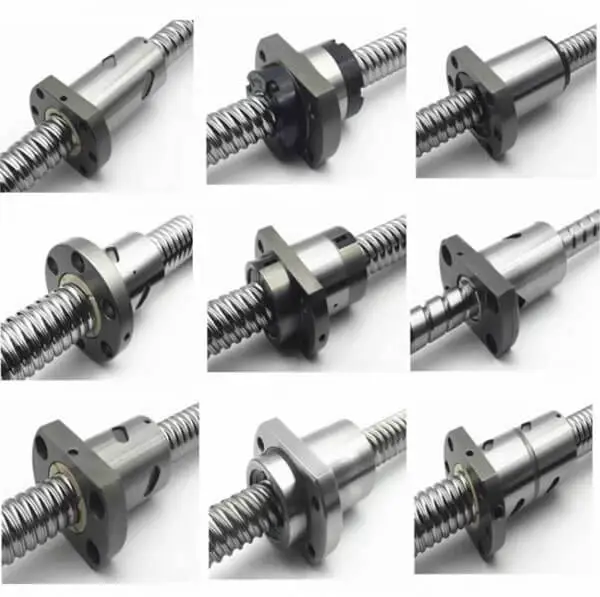

Ball Screw |
Medium |
High |
Very High |
CNC machines |
|
Belt Drive |
Fast |
Low |
Medium |
3D printers |
|
Linear Motor |
Very Fast |
Ultra-High |
Low |
Semiconductor equipment |
2.3 Additional Components
Limit switches (mechanical/magnetic)
Position feedback (potentiometer/encoder)

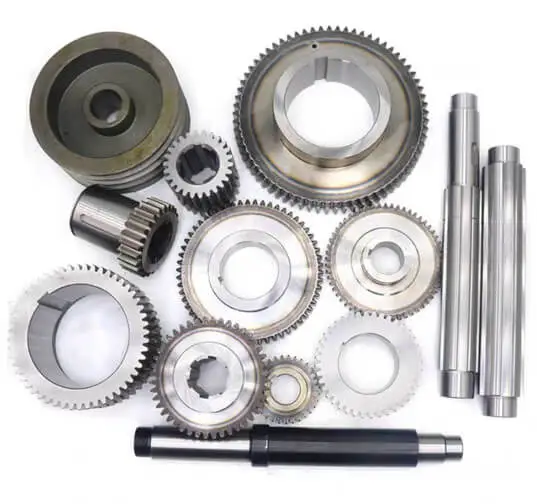

Combination of gears (for torque multiplication)
Housing (IP ratings for protection)
3.1 Movement Characteristics
Stroke Length: 10mm to 2m+ travel
Speed: 1mm/s to 500mm/s
Load Capacity: 50N to 50,000N+
Duty Cycle: 10%-100% (continuous operation)
3.2 Precision Metrics
Repeatability: ±0.01mm to ±1mm
Backlash: 0.005mm to 0.5mm
Straightness: 0.01mm/m to 0.1mm/m
4.1 Basic Control
Manual switches
Relay control
PWM speed control
4.2 Advanced Control
Microcontroller (Arduino/Raspberry Pi)
PLC integration
Smart controllers with IoT
4.3 Feedback Systems
Potentiometer: Basic position sensing
Optical Encoder: High-resolution feedback
Hall Effect Sensors: Non-contact detection
5.1 Industrial Uses
• Factory automation (pick-and-place)
• Packaging machines
• Valve control systems
• Test equipment positioning
5.2 Consumer/Commercial
• Adjustable furniture (desks, hospital beds)
• Home automation (window openers, TV lifts)
• Agricultural equipment (greenhouse vents)
5.3 High-Tech Applications
• Robotic surgery arms
• Telescope positioning
• Satellite antenna adjustment
6.1 Step-by-Step Selection
(1) Determine load requirements (static/dynamic)
(2) Calculate required stroke length
(3) Select speed vs. force tradeoff
(4) Choose precision level needed
(5) Consider environmental factors (IP rating)
(6) Decide on control method
6.2 Common Mistakes to Avoid
Underestimating side loads
Ignoring duty cycle limitations
Overlooking backlash requirements
Forgetting maintenance needs
7.1 Routine Maintenance
Lubrication intervals (every 6-12 months)
Bearing inspections
Electrical connection checks
7.2 Common Issues
Motor overheating: Check duty cycle
Sticking movement: Clean/lubricate
Position drift: Recalibrate feedback
8. Future Trends
• Integrated smart sensors (vibration, temp)
• AI-powered predictive maintenance
• High-efficiency designs (regenerative braking)
• Miniaturized nano-positioning actuators
Electric linear actuators provide clean, precise, and controllable linear motion for countless applications. By understanding their components, performance specs, and control methods, you can select the perfect actuator for your needs.
