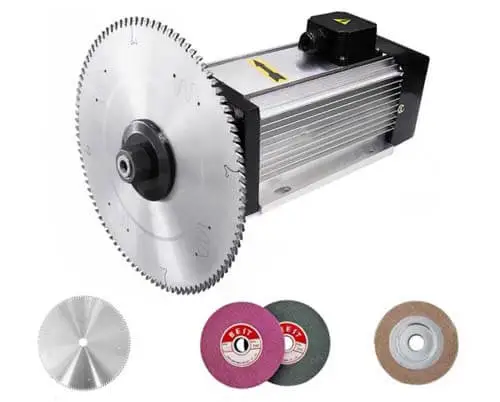

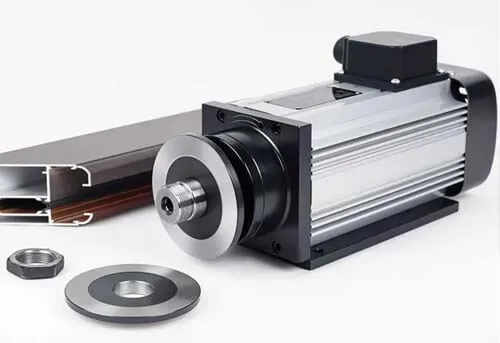

PMSM Motor Design for Saw Blade

A saw blade motor is the electric motor that powers the blade in various types of saws, such as circular saws, table saws, miter saws, band saws, and reciprocating saws.

Using a Permanent Magnet Synchronous Motor (PMSM) for a saw blade application can offer several advantages, including high efficiency, precise speed control, and excellent torque performance. Here’s how a PMSM can be optimized for saw blade operation:

Why Use a PMSM for a Saw Blade?

High Efficiency (~90-95%) – Lower energy loss compared to induction or DC brushed motors.

Precise Speed Control – Ideal for maintaining constant RPM under load (important for clean cuts).

High Torque at Low Speeds – Useful for cutting dense materials (hardwood, metals).

Compact & Lightweight – Good for handheld or portable saws.

Low Maintenance – No brushes (unlike DC motors), longer lifespan.

Key Design Considerations for PMSM in Saw Blades

1. Motor Power & Torque Requirements

Circular Saws: Typically need 1–3 HP (750W–2200W).

Table Saws/Band Saws: May require 3–5 HP (2200W–3700W) for heavy-duty use.

Torque: Must handle sudden load changes (e.g., hard knots in wood).

2. Speed Control (RPM Regulation)

Sensorless PMSM Control: Uses back-EMF for speed feedback (simpler, fewer components).

Encoder-Based PMSM: More precise, better for CNC or automated saws.

Variable Frequency Drive (VFD): Adjusts speed for different materials (e.g., metal vs. wood).

3. Cooling & Durability

Forced Air Cooling (Fan) – Needed for continuous high-power operation.

IP Rating (Dust/Water Resistance) – Important for workshop environments.

4. Power Supply

Corded (AC-DC Converter + Inverter): For stationary saws (table saws).

Cordless (Battery-Powered): Requires high-voltage (e.g., 48V–72V) Li-ion batteries.

Advantages Over Other Motor Types

Potential Challenges

Higher Cost: More expensive than induction or brushed motors.

Complex Drive Electronics: Requires a 3-phase inverter & controller.

Heat Management: Magnets can demagnetize if overheated.

Applications in Saws

Industrial Table Saws (Precision woodworking).

High-End Circular Saws (Cordless brushless models).

CNC Cutting Machines (Laser/Plasma-assisted saws).

Conclusion

A PMSM is an excellent choice for saw blade applications where efficiency, speed stability, and torque control are critical. It’s especially useful in professional-grade saws, CNC machines, and battery-powered high-performance saws.
