PMSM Grinding Motor Design Guide



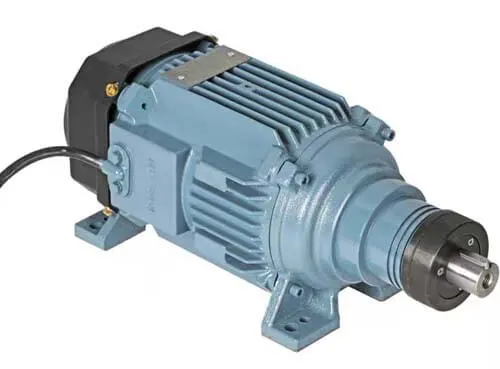

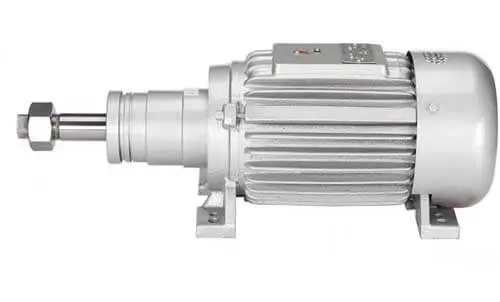

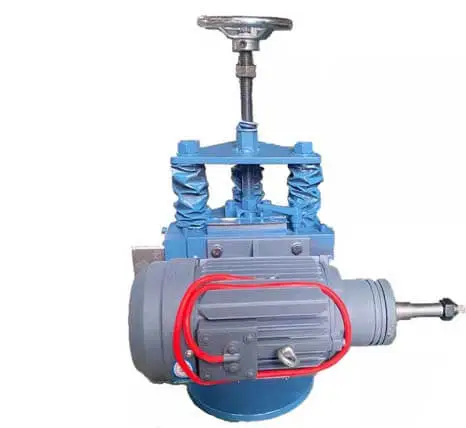

Designing a Permanent Magnet Synchronous Motor (PMSM) for a grinding application (such as an angle grinder, bench grinder, or industrial grinding machine) requires careful consideration of power, torque, speed, cooling, and control. Below is a structured approach to PMSM design for grinding motors.



1. Key Requirements for a Grinding PMSM

A. Performance Specifications





Parameter	Typical Range for Grinding Motors
Power	500W – 3000W (0.67 – 4 HP)
Speed	8,000 – 12,000 RPM (high-speed grinding)
Torque	0.5 – 5 Nm (depends on disc size & material)
Voltage	120V/240V AC (corded) or 18V-80V DC (cordless)
Efficiency	>90% (PMSM advantage)
Cooling	Forced air / liquid cooling (for industrial use)

B. Mechanical Considerations

High Rotational Speed → Requires balanced rotor design to prevent vibrations.

Dust & Debris Resistance → Sealed bearings, IP54 or higher.

Thermal Management → High-temperature magnets (e.g., NdFeB with 150°C+ rating).



2. PMSM Design Steps for Grinding Motor



A. Electromagnetic Design

(i) Stator Design

  • Slot-Pole Combination:

      ♦ Common: 12-slot/10-pole or 9-slot/6-pole (for smooth torque & reduced cogging).

      ♦ High-speed motors benefit from fractional-slot concentrated windings (lower inductance).

  • Lamination Material:

      ♦ Silicon steel (M19, M27) for reduced core losses.

  • Winding Type:

      ♦ Distributed (for sinusoidal back-EMF) or concentrated (easier manufacturing).



(ii) Rotor Design

  • Magnet Type:

      ♦ NdFeB (Neodymium) for high energy density.

      ♦ Ferrite (cheaper but weaker, used in low-cost grinders).

  • Magnet Arrangement:

      ♦ Surface-mounted PM (SPM) → Easier manufacturing.

      ♦ Interior PM (IPM) → Better mechanical robustness at high speeds.

  • Retaining Sleeve (for high-speed PMSM motors):

      ♦ Carbon fiber or stainless steel to prevent magnet detachment.



(iii) Air Gap Optimization

  • Small air gap (~0.5mm) → Higher torque density but tighter manufacturing tolerances.



B. Thermal & Mechanical Design

(i) Cooling System

  • Forced Air Cooling (Fan-mounted) → Common in angle grinders.

  • Liquid Cooling (Industrial grinders running continuously).

  • Heat Sink on Stator → Aluminum housing for heat dissipation.



(ii) Bearing Selection

  • Ceramic Hybrid Bearings → Longer life in dusty environments.

  • Shielded/Sealed Bearings → Prevent abrasive dust ingress.



(iii) Vibration & Noise Control

  • Dynamic Balancing of rotor to minimize vibrations at high RPM.

  • Damped Enclosure (for noise reduction).



C. Motor Control & Drive Electronics

(i) Control Strategy

  • Field-Oriented Control (FOC) → Best for torque & efficiency.

  • Sensorless Control (Back-EMF estimation) → Reduces cost (no encoder).

  • Encoder-Based Control (For ultra-precise speed regulation).



(ii) Inverter Requirements

  • MOSFET/IGBT-based 3-phase inverter (e.g., 600V/30A for 1kW motor).

  • Overcurrent & Overtemperature Protection → Critical for grinding applications.



(iii) Power Supply

  • Corded: AC-DC-AC (PWM inverter).

  • Cordless: High-voltage battery pack (e.g., 40V-80V Li-ion).



3. Example PMSM Specifications for a 1.5kW Angle Grinder



Parameter	Value
Power	1.5 kW (2 HP)
Speed	10,000 RPM
Voltage	220V AC (or 72V DC for cordless)
Torque	1.43 Nm
Stator	12-slot, distributed winding
Rotor	10-pole surface PM (NdFeB)
Cooling	Fan-cooled
Control	Sensorless FOC
Efficiency	94%



4. Advantages of PMSM Over Other Motors in Grinding





Feature	PMSM	Induction Motor	Universal Motor (Brushed)	BLDC
Efficiency	★★★★★	★★★☆	★★☆☆	★★★★☆
Speed Control	★★★★★	★★★☆	★★★☆	★★★★☆
Torque Density	★★★★★	★★★☆	★★★★	★★★★
Maintenance	★★★★★	★★★★☆	★★☆☆	★★★★☆
Cost	★★★☆☆	★★★★☆	★★★★	★★★☆

Why PMSM Wins?

✔ Higher efficiency → Less heat, longer runtime (crucial for cordless grinders).
✔ Better speed regulation → Consistent grinding performance under load.
✔ More compact → Lighter, better for handheld tools.



5. Challenges & Solutions





Challenge	Solution
High-speed rotor stress	Use carbon fiber sleeve for magnet retention.
Overheating in continuous use	Liquid cooling or advanced thermal management.
Dust ingress	IP54+ sealed design, shielded bearings.
High initial cost	Optimize magnet usage (Halbach array for better flux).

6. Industrial vs. DIY Grinder Motors





Parameter	Industrial Grinder	DIY/Home Grinder
Power	2–5 kW	500W–1.5 kW
Cooling	Liquid/forced air	Fan-cooled
Control	Encoder+FOC	Sensorless FOC
Durability	10,000+ hrs	1,000–5,000 hrs

Final Recommendations

  ► For high-performance industrial grinders → PMSM with FOC & liquid cooling.

  ► For cordless angle grinders → PMSM + 72V Li-ion battery.

  ► For cost-sensitive applications → BLDC (if PMSM is too expensive).
