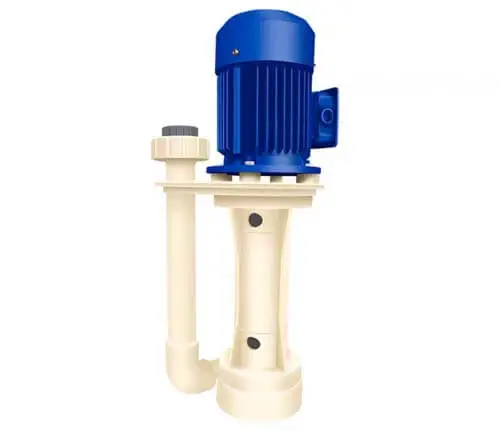

Designing a Permanent Magnet Synchronous Motor (PMSM) for a wastewater pump requires a focus on high torque, reliability, corrosion resistance, and energy efficiency. Below is a structured approach to PMSM design for this application.
|
Parameter |
Typical Range for Wastewater Pumps |
|
Power |
0.5 kW – 50 kW (submersible) |
|
Speed |
1,000 – 3,600 RPM (centrifugal pumps) |
|
Torque |
5 – 200 Nm (depends on pump size) |
|
Voltage |
380V AC (industrial) / 48V DC (battery backup) |
|
Efficiency |
>92% (PMSM advantage) |
|
Protection |
IP68 (submersible) / IP55 (surface) |
|
Cooling |
Water-cooled (submerged) / Fan-cooled (surface) |
Corrosion Resistance → Stainless steel housing, epoxy-coated windings.
Sealing → Hermetic sealing for submersible pumps.
Solids Handling → Robust bearings (ceramic or tungsten carbide).
Thermal Management → High-temp magnets (SmCo or high-grade NdFeB).
(i) Stator Design
• Slot-Pole Combination:
♦ 12-slot/10-pole (low cogging, smooth torque).
♦ 18-slot/16-pole (higher torque density).
• Lamination Material:
♦ M19/M27 silicon steel (low iron losses).
• Winding Type:
♦ Distributed windings (better sinusoidal back-EMF).
(ii) Rotor Design
• Magnet Type:
♦ NdFeB (Grade N42EH or higher) for high torque.
♦ Samarium Cobalt (SmCo) if high corrosion resistance is needed.
• Magnet Arrangement:
♦ Surface-mounted PM (SPM) → Easier manufacturing.
♦ Interior PM (IPM) → Better mechanical robustness.
• Rotor Can (for submersible motors) → Stainless steel sleeve to protect magnets.
(iii) Air Gap Optimization
• 0.8–1.2 mm (balance between torque and manufacturability).
(i) Cooling System

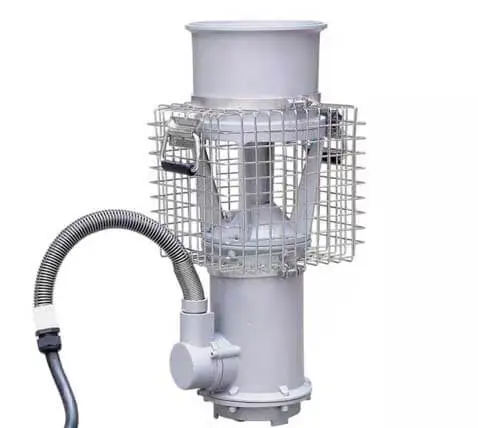

• Submersible Motors:
♦ Water-cooled (pump fluid cools the motor).

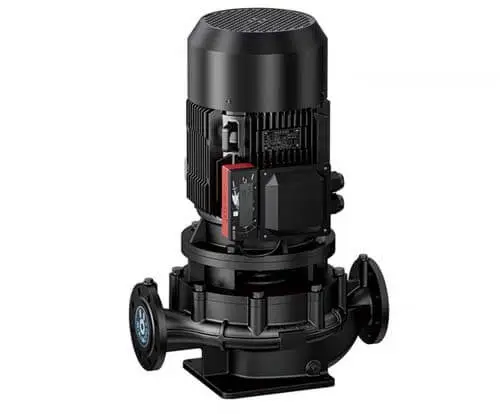

• Dry-installed Motors:
♦ Fan-cooled (TEFC – Totally Enclosed Fan Cooled).
(ii) Bearing Selection
• Ceramic Bearings → Resistant to abrasive particles.
• Double Mechanical Seals → Prevent water ingress.
(iii) Corrosion Protection
• Stainless Steel (316L) Housing → For harsh wastewater.
• Epoxy-coated Stator Windings → Prevents moisture damage.
(i) Control Strategy
• Field-Oriented Control (FOC) → Best efficiency & torque control.
• Encoderless (Sensorless) Control → Reduces cost (uses back-EMF).
• Soft Start → Prevents water hammer in pump systems.
(ii) Inverter Requirements
• IGBT-based VFD (Variable Frequency Drive) → For speed control.
• Overload Protection → Handles pump blockages.
(iii) Power Supply
• 3-phase AC (380V/480V) → Industrial pumps motor power supply.
• DC (48V/72V) with battery backup → For remote installations.
|
Parameter |
Value |
|
Power |
5 kW |
|
Speed |
2,900 RPM |
|
Voltage |
380V AC |
|
Torque |
16.5 Nm |
|
Stator |
18-slot, distributed winding |
|
Rotor |
16-pole, IPM (NdFeB) |
|
Cooling |
Water-cooled (submersible) |
|
Control |
FOC with encoderless mode |
|
Efficiency |
94% |
|
Protection |
IP68 |
|
Feature |
PMSM |
Induction Motor |
BLDC |
|
Efficiency |
★★★★★ |
★★★☆ |
★★★★☆ |
|
Torque Density |
★★★★★ |
★★★☆ |
★★★★ |
|
Maintenance |
★★★★★ |
★★★★☆ |
★★★★☆ |
|
Speed Control |
★★★★★ |
★★★☆ |
★★★★☆ |
|
Corrosion Resistance |
★★★★☆ |
★★★☆ |
★★★★ |
✔ Higher efficiency → Lower energy costs (critical for 24/7 pumps).
✔ Better speed regulation → Prevents pump cavitation.
✔ Compact & lightweight → Fits in tight sumps.
|
Challenge |
Solution |
|
Corrosion in wastewater |
Stainless steel housing, epoxy coating. |
|
Abrasive particles damaging bearings |
Ceramic or tungsten carbide bearings. |
|
High starting torque requirement |
FOC with flux weakening. |
|
Heat dissipation in submersible motors |
Direct liquid cooling. |
|
Parameter |
Industrial Pump |
Municipal Sewage Pump |
|
Power |
5–50 kW |
10–200 kW |
|
Speed |
1,500–3,600 RPM |
1,000–1,800 RPM |
|
Protection |
IP68 |
IP68 + anti-clogging |
|
Control |
VFD + FOC |
Advanced SCADA integration |

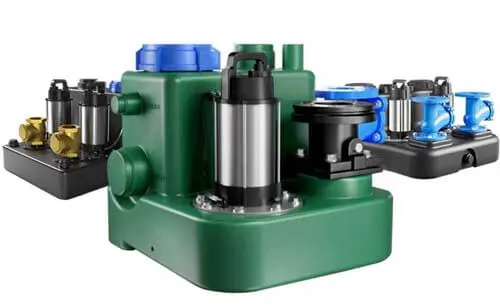

⇒ For submersible sewage pumps → PMSM with IP68, water cooling, and FOC.
⇒ For surface wastewater pumps → TEFC PMSM with corrosion-resistant coating.
⇒ For battery backup systems → 48V/72V PMSM with sensorless control.
Would you like help with specific FEM simulations, material selection, or VFD pairing? Contact with us to discuss the wastewater pump motor design.
