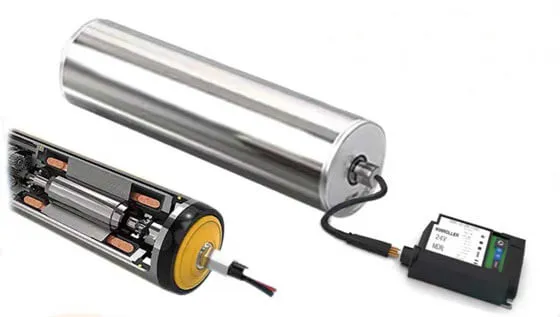

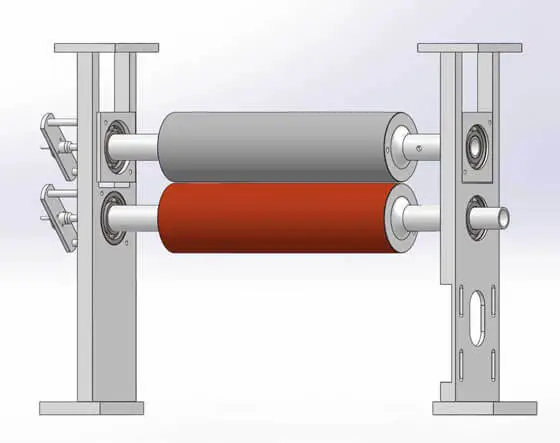

Electric drums are widely used in applications such as winches, hoists, conveyor systems, and automated doors, where compact size, high torque, and precise control are essential. At the heart of these systems lies a small planetary gear motor, a compact yet powerful solution that efficiently converts high-speed motor rotation into controlled, high-torque output. This article explores the role of small planetary gear motors in electric drums, their advantages, design considerations, and key applications.
Planetary gear motors are preferred for electric drums due to their:
✔ High Torque Density – Multiple gear stages distribute load evenly, enabling high torque in a small package.
✔ Compact Design – Ideal for space-constrained drum assemblies.
✔ Efficiency – Low energy loss (90–95% efficiency) compared to other gear systems.
✔ Smooth & Precise Operation – Low backlash ensures accurate drum movement.
✔ Durability – Robust construction handles heavy loads and continuous operation.

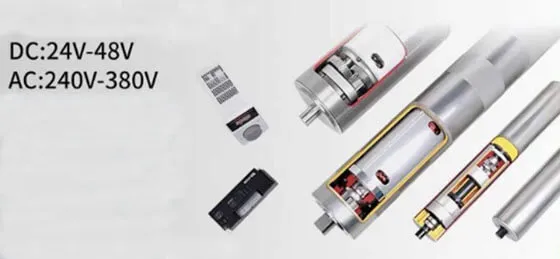

1. Motor (Input Stage)
Brushless DC (BLDC) Motor – Preferred for efficiency, long life, and precise speed control.
AC Induction Motor – Used in industrial applications requiring high power.

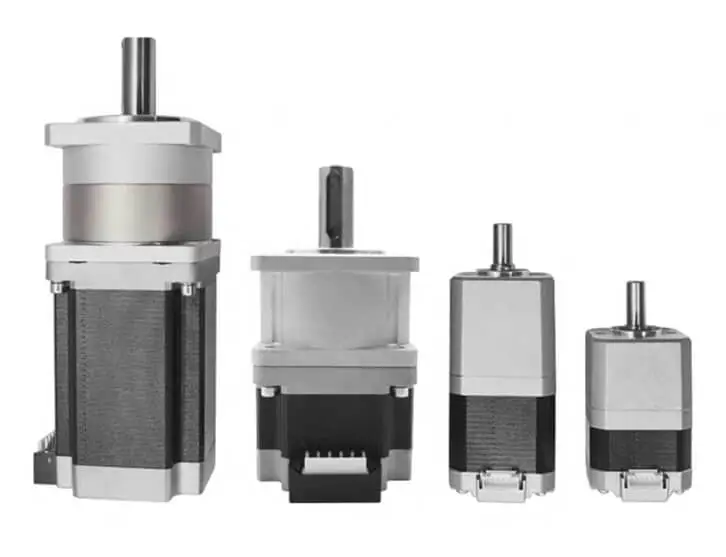

Stepper Motor - Preferred for more precision control
2. Planetary Gearbox (Reduction Stage)
Sun Gear – Connected to the motor shaft.
Planet Gears (3–5 gears) – Rotate around the sun gear, distributing load.
Ring Gear – Outer gear that can be fixed or rotating.
Output Shaft – Delivers torque to the drum.
3. Housing & Bearings
Aluminum or Steel Housing – Provides heat dissipation and structural support.
High-Load Bearings – Ensure smooth rotation under heavy loads.
1. Gear Ratio Selection
Determines torque and speed output.
Example: A 1000 RPM motor with a 10:1 gear ratio delivers 100 RPM at 10x higher torque.
2. Load Capacity & Durability
Reinforced Planet Carrier – Prevents deformation under heavy loads.
Hardened Steel Gears – Resists wear in high-duty cycles.
3. Thermal Management
Cooling Fins or Forced Air – Prevents overheating in continuous operation.
Thermal Sensors – Optional for overload protection.
4. Backlash Control
Precision Machining – Minimizes play for smooth drum movement.
Preloaded Bearings – Reduces backlash in positioning applications.
1. Winches & Hoists
Provides high lifting torque with controlled speed.
Used in cranes, elevators, and marine applications.
2. Conveyor Systems
Ensures smooth, consistent material handling.
Common in packaging, manufacturing, and logistics.
3. Automated Doors & Gates
Delivers reliable, low-maintenance operation.
Used in industrial, commercial, and residential settings.
4. Medical & Rehabilitation Equipment
Enables precise movement in adjustable hospital beds and patient lifts.
|
Feature |
Planetary Gear Motor |
Spur Gear Motor |
Worm Gear Motor |
|
Torque Density |
High (Best) |
Medium |
Medium |
|
Efficiency |
90–95% |
85–90% |
50–70% |
|
Backlash |
Low |
Medium |
High |
|
Size |
Compact |
Bulky |
Moderate |
|
Durability |
Excellent |
Good |
Moderate |
Integrated Smart Sensors – For predictive maintenance and real-time monitoring.
Lightweight Materials – Carbon fiber or composites for weight reduction.
Regenerative Braking (BLDC Motors) – Recovers energy during deceleration.
Small planetary gear motors are the ideal choice for electric drums, offering unmatched torque, efficiency, and reliability in a compact package. By selecting the right gear ratio, ensuring proper thermal management, and minimizing backlash, engineers can optimize performance for demanding applications. As technology advances, smarter and lighter planetary gear systems will further enhance electric drum functionality.
Looking for a custom planetary gear motor solution? Consult with a specialist to tailor the design to your specific drum application!
