Stepper motors, a critical actuator in automation, are highly valued for their precise positioning and reliable performance. From delicate medical instruments to large industrial robots, these motors work tirelessly behind the scenes.

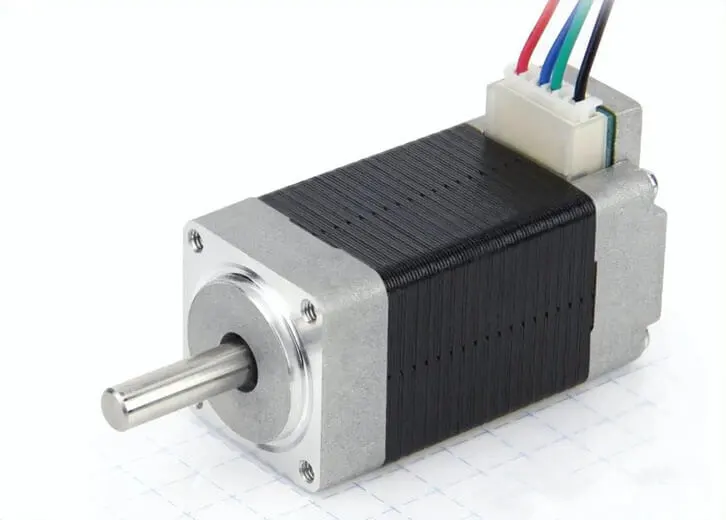

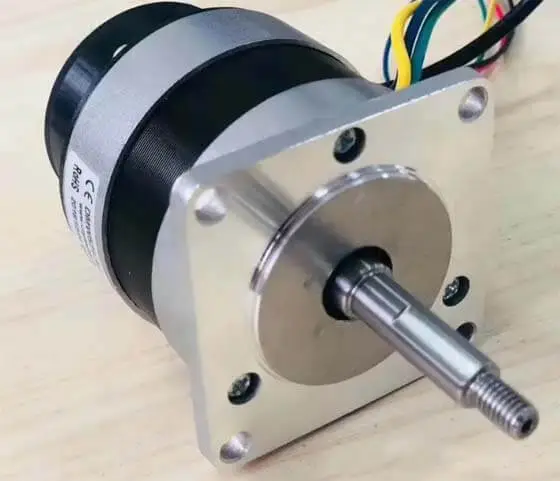

Unlike DC motors, which rely on continuous electromagnetic fields for rotation, stepper motors move in discrete steps. To understand this, let’s examine their key components:

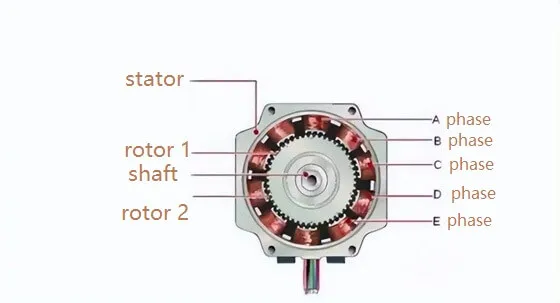

Stator

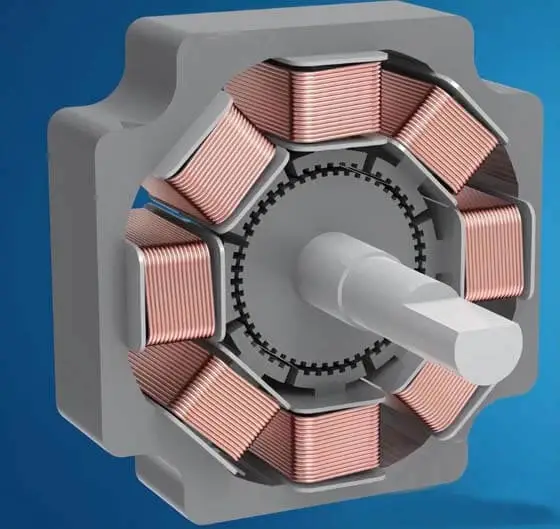

The stator is the stationary part, made of laminated silicon steel sheets with multiple windings (or phases). These windings are arranged in a specific pattern to create magnetic poles. The number of stator poles and winding configuration determine the motor’s step angle.
Rotor
The rotor, the rotating part, comes in three main types:
Variable Reluctance (VR): Simple in design, made of soft magnetic material without permanent magnets. It moves based on the principle of minimum magnetic reluctance, aligning with the strongest magnetic flux.
Permanent Magnet (PM): Uses permanent magnets to generate a fixed magnetic field. Interaction between stator electromagnets and rotor magnets drives rotation.
Hybrid: Combines VR and PM designs for higher precision and torque. The rotor consists of permanent magnets and toothed soft magnetic material.

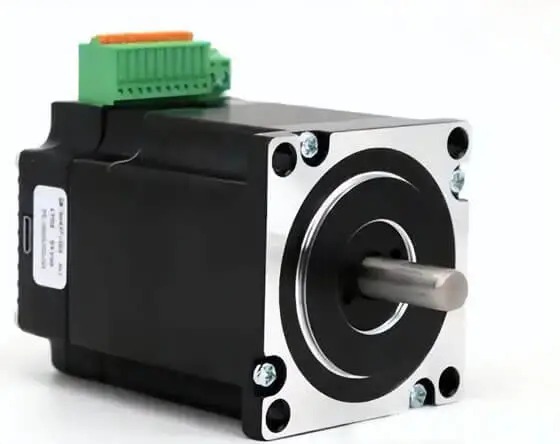

Controller
The "brain" of the stepper motor, the controller generates signals to energize stator windings in a specific sequence. Its performance directly impacts motor accuracy and speed. Common controllers include microcontrollers and DSPs.
The core feature of stepper motors is their "step-by-step" movement. By controlling the stator winding sequence, the rotor turns in precise increments:
1. Pulse Sequence Generation
The controller produces a predefined excitation sequence (e.g., Phase A → B → C → D → A for a 4-phase motor).
2. Magnetic Field Activation
Each energized winding creates a magnetic field, attracting or repelling the rotor.
3. Step Movement
The rotor rotates to the next equilibrium position, completing one step.
4. Cyclic Control
Repeating the sequence drives continuous rotation.
Motor-Specific Mechanisms:
VR Motors: Rotor aligns with the stator’s magnetic poles due to reluctance minimization.
PM Motors: Stator electromagnets interact with rotor’s permanent magnets to generate torque.
Hybrid Motors: Combine both principles for enhanced precision and torque.
Selecting the right stepper motor requires understanding these metrics:
• Step Angle: Degrees per step (e.g., 1.8°). Smaller angles = higher precision.
• Steps per Revolution: Total steps needed for one full rotation (360° / step angle).
• Holding Torque: Torque capacity when stationary (resists external loads).
• Dynamic Torque: Maximum torque during operation (decreases at higher speeds).
• Response Frequency: Maximum pulse frequency the motor can handle (determines max speed).
Drive methods significantly impact performance:
Unipolar Drive: Single power supply per winding. Simple and cost-effective but less efficient.
Bipolar Drive: Dual-power, bidirectional current. Higher torque and efficiency but more complex.
Chopper Drive: Adjusts current via rapid switching, improving high-speed performance.
Stepper motors shine in:
Industrial Automation: Robots, CNC machines, assembly lines.
Medical Devices: Imaging systems, surgical robots.
Office Equipment: Printers, scanners.
Security: PTZ cameras, access control.
Consumer Electronics: 3D printers, cameras.
Stepper motors’ unique "step-by-step" operation makes them indispensable in automation. By mastering their structure, principles, and driving techniques, engineers can optimize these motors for unparalleled accuracy and efficiency. May this guide deepen your understanding and unlock their full potential in your applications!
