Electric motors are indispensable power sources in modern industry and daily life, driving countless devices with high efficiency. Mastering motor control technology means acquiring one of the core skills in electrical engineering, opening doors to automation, smart manufacturing, and beyond. However, motor control involves a wide range of knowledge and complex technical aspects, often intimidating beginners.

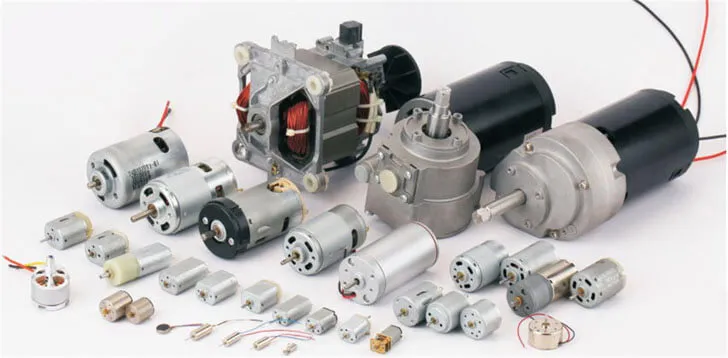

Motors come in various types, each with distinct working principles and characteristics suited for different applications. Choosing the right motor is the first step in motor control. Below are some common motor types and their features:
DC Motors (DC Electric Motor)
Advantages: Simple structure, easy control, high starting torque.
Applications: Low-power, speed-regulation-demanding scenarios.
Types:
• Separately Excited DC Motor: Independent field and armature windings, wide speed range, stable performance.
• Shunt DC Motor: Field and armature windings in parallel, low speed variation, strong load capacity.
• Series DC Motor: Field and armature windings in series, high starting torque, but unstable speed (risk of runaway at no load).
• Compound DC Motor: Combines features of shunt and series motors for balanced performance.
AC Induction Motors (AC Asynchronous Motor)
Advantages: Simple structure, reliable operation, low maintenance, cost-effective.
Types:
• Squirrel-Cage Induction Motor: Rugged and widely used, but with lower starting torque.
• Wound-Rotor Induction Motor: Adjustable rotor resistance for better starting and speed control, but more complex and costly.
AC Synchronous Motors (PM Synchronous Motor)
Advantages: Stable speed, adjustable power factor.
Applications: Precision speed control, power factor correction.
Types:
• Non-Salient Pole Synchronous Motor: High-speed applications.
• Salient Pole Synchronous Motor: Low-speed applications.
Stepper Motors
Advantages: Precise positioning control.
Applications: Automation, robotics.
Types:
• Permanent Magnet Stepper: Simple, low cost.
• Variable Reluctance Stepper: High torque, but noisy.
• Hybrid Stepper Motors: Combines benefits of both.
Brushless DC Motors (BLDC Motor)
Advantages: High efficiency, long lifespan, low noise.
Applications: Power tools, home appliances, replacing traditional DC motors.
Key Takeaway:
Understanding motor structures, working principles, performance curves, and applications is fundamental to motor control. Beginners should study relevant materials and conduct experiments to reinforce their knowledge.
The goal of motor control is precise regulation of speed, torque, and position. Common control methods include:
Starting Methods
Direct On-Line (DOL): Simple but causes high inrush current.
Reduced Voltage Starting: Lowers starting current (e.g., auto-transformer, star-delta, resistor/reactor starting).

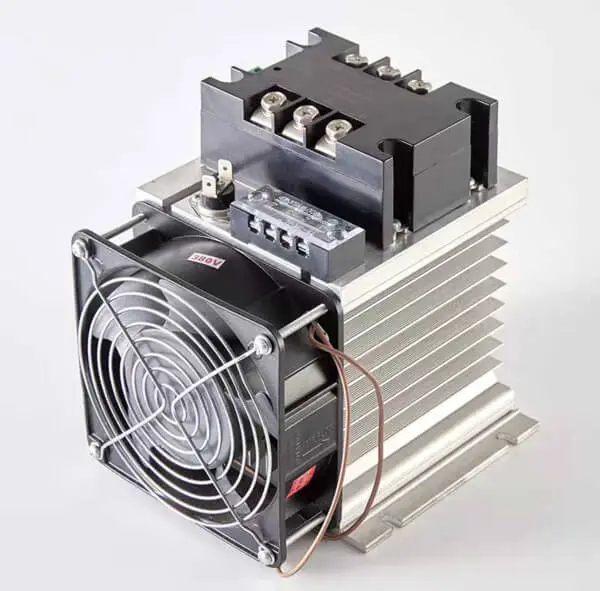

Soft Starter: Uses thyristors for smooth voltage ramp-up, reducing current surges.
Speed Control Methods
Variable Frequency Drive (VFD): Adjusts supply frequency for smooth, efficient speed regulation.
Vector Control: Independently controls torque and flux for superior dynamic performance.
Direct Torque Control (DTC): Fast response, simple implementation.
Key Takeaway:
Selecting the right control method depends on motor type and application. Beginners should start with simple techniques before advancing to complex strategies.
Hardware Platforms
• Microcontrollers (MCUs): Execute control algorithms (e.g., ARM Cortex-M, DSP).
• Power Devices: Control voltage/current (e.g., Thyristors, IGBTs, MOSFETs).
• Sensors: Measure speed, position, current (e.g., encoders, Hall sensors).
• Driver Circuits: Interface MCUs with power devices.
• Power Supply & Protection Circuits: Ensure safe operation.
Software Tools
• IDEs: Keil MDK, IAR Embedded Workbench.
• Simulation Software: MATLAB/Simulink, PSCAD.
• Debugging Tools: J-Link, ST-Link.
Key Takeaway:
Choosing the right tools improves efficiency. Beginners can start with development boards and open-source software.
Hands-on projects solidify learning:
• DC Motor Speed Control: Implement PID control via an MCU.

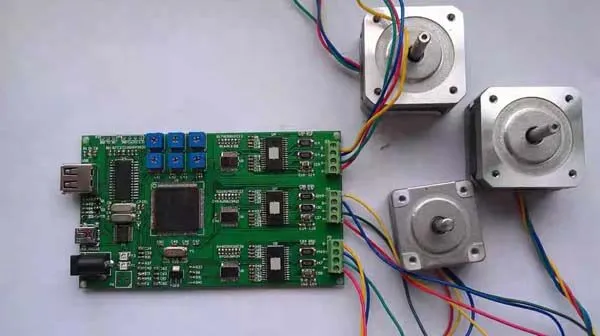

• Stepper Motor Positioning: Achieve precise motion control.
• AC Induction Motor VFD Control: Optimize speed regulation.
• BLDC Motor Control: Develop a closed-loop system with Hall sensors.
Key Takeaway:
Practice transforms theory into skill. Troubleshooting real-world problems enhances expertise.
To excel, delve deeper into:
• Motor control theory (modeling, stability analysis).
• Power electronics (topologies, switching strategies).
• Embedded systems (RTOS, firmware development).
• Industrial communication (CAN, EtherCAT).
Stay ahead by:
Tracking industry trends (new motors, AI-based control).
Engaging in tech communities.
Innovating (new algorithms, hardware designs).
Motor control is a dynamic field—continuous learning and experimentation lead to mastery. Power Jack Motion Engineering Team specializes in motor control solutions for automation projects. Let’s discuss your requirements!
