The choice of motor starting method directly impacts equipment performance, lifespan, and grid stability. Among various starting methods, Direct-On-Line (DOL) and Variable Frequency Drive (VFD) are the two most common. While they differ significantly in principle and application, a deeper analysis reveals striking similarities in their electromagnetic fundamentals, energy conversion, and load response characteristics.
DOL is the simplest starting method, connecting the motor directly to the power supply at full voltage via a contactor or switch.
Key Principles:
Operation: When energized, the stator instantly applies full voltage, creating a strong magnetic field that induces rotor motion until reaching rated speed.
Current Surge: At startup, the rotor is stationary, resulting in low impedance and high inrush current (5–8× rated current or higher), potentially causing voltage dips and grid disturbances.
Torque Characteristics: Delivers high starting torque, ideal for heavy-load applications.
Pros: Simple circuitry, low cost, easy maintenance, fast start.
Cons: High current/mechanical stress, unsuitable for large motors or weak grids, may reduce equipment lifespan.

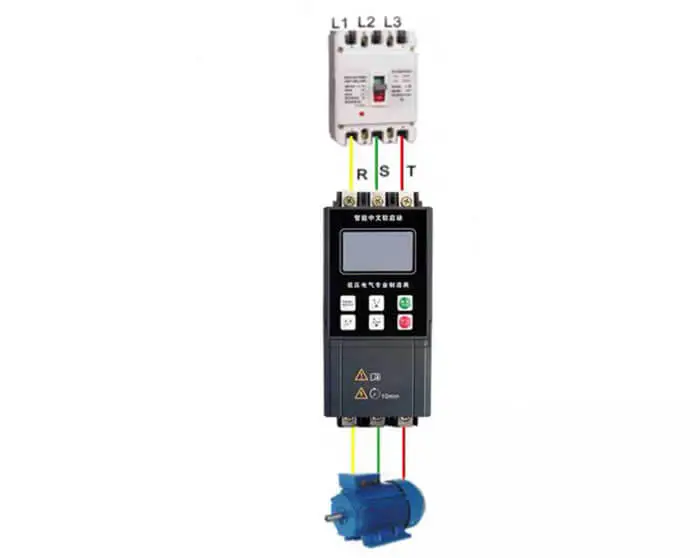

VFD start uses an inverter to adjust voltage and frequency for controlled acceleration.
Key Principles:
Operation: The VFD converts AC to DC, then synthesizes variable-frequency AC to gradually ramp up motor speed.
Current Control: Limits inrush current to 1–2× rated current, minimizing grid impact.
Torque Control: Adjusts frequency/voltage to match load demands, enabling soft starts and speed regulation.
Pros: Low current surge, smooth acceleration, extended equipment life, energy-efficient operation, built-in protections.
Cons: Higher cost, complex setup, maintenance demands, stringent EMC requirements.
Despite their differences, DOL and VFD share fundamental principles:
• Electromagnetic Basis:

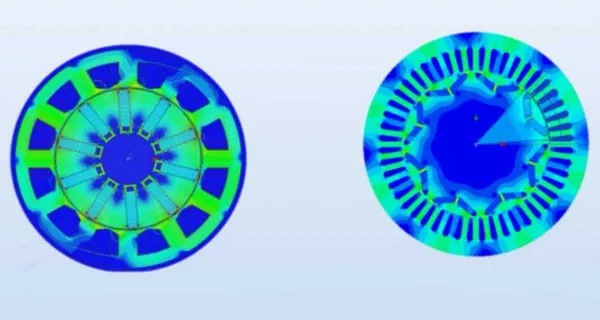

Both rely on Faraday’s law of induction: stator windings generate a rotating magnetic field, interacting with the rotor to produce torque.
• Energy Conversion:
DOL: Directly converts grid AC to mechanical energy.
VFD: Converts AC→DC→variable AC→mechanical energy.
Both adhere to energy conservation, differing only in conversion paths.
• Load Response:
Both must account for load inertia, friction, and torque requirements.
DOL suits high-torque starts; VFD excels where smooth acceleration is critical.
• Voltage-Current-Torque Relationship:
Both follow motor performance curves, where voltage and frequency dictate current and torque.
DOL: Fixed voltage → high current → high torque.
VFD: Controlled voltage/frequency → optimized torque/current.
|
Factor |
DOL Start |
VFD Start |
|
Motor Power |
Small motors (e.g., <15 kW) |
Large motors (e.g., >15 kW) |
|
Load Type |
High starting torque (e.g., crushers) |
Sensitive loads (e.g., conveyors) |
|
Grid Capacity |
Robust grids |
Limited-capacity grids |
|
Cost |
Low |
High |
|
Speed Control Needed? |
No |
Yes |
Examples:
DOL: Small pumps, fans, compressors.
VFD: Large HVAC systems, centrifugal pumps, cranes.
While DOL and VFD employ distinct control strategies, their core physics remain identical. Understanding these shared principles empowers engineers to:
• Select the optimal starting method for each application.
• Troubleshoot performance issues effectively.
• Innovate hybrid solutions where needed.
Whether simple or sophisticated, all motor control methods converge on the same electromagnetic truths—master these, and you unlock true flexibility in engineering.
