Product Description

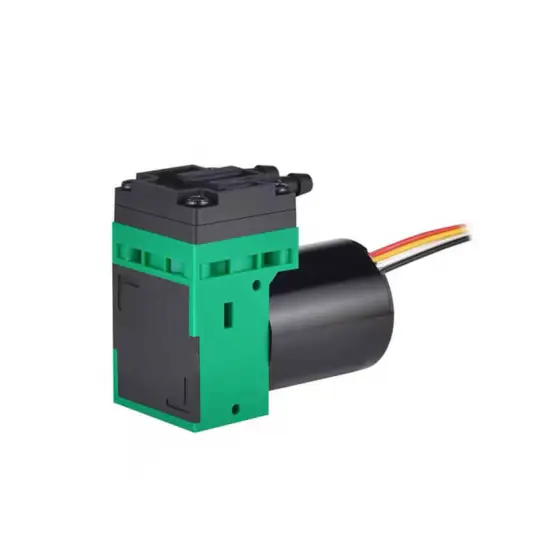

This brushless diaphragm pump is driven by a BLDC motor. 4-wire brushless speed regulating motor, compatible with both analog and PWM signal speed control.
A brushless diaphragm pump is a type of positive displacement pump powered by a brushless DC (BLDC) motor, where a flexible diaphragm creates a vacuum to move fluids. By eliminating brushes, these pumps offer high efficiency, precise flow control, long service life, and minimal maintenance.
Brushless diaphragm pumps are ideal for applications requiring chemical resistance, accuracy, and sterile operation, such as laboratory dosing, medical devices, and chemical transfer systems.
• Micro Diaphragm Air Pump, compact size with high flow rate, maintenance-free
• Low noise, low vibration
• Precision engineered, high vacuum, ensuring excellent air tightness
• High reliability, superior stability, with a motor continuous operation lifespan of over 10,000 hours.
|

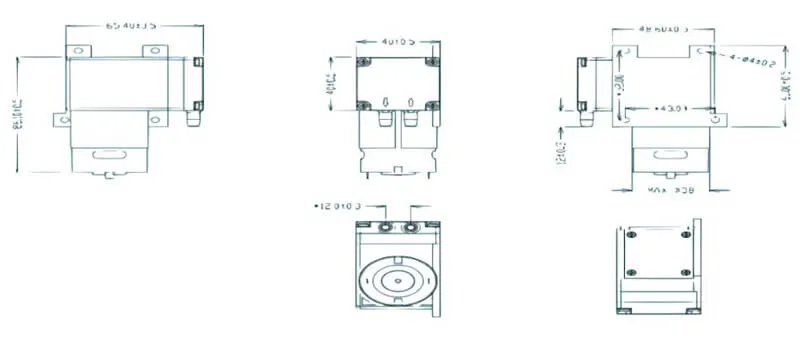

Model |
Air Flow (L/min) |
Positive Pressure (kPa) |
Negative Pressure (kPa) |
Voltage (V) |
Current (mA) |
Ambient Temperature ( C°) |
Media Temperature ( C°) |
Pump Head Material |
Power
( w) |
|
DP03-12 |
10-15 |
> 200 |
< 75 |
12 |
< 1200 |
-20 - 60 |
5 - 50 |
PPS |
15 |
|
DP03-24 |
10-15 |
> 200 |
< 75 |
24 |
< 800 |
-20 - 60 |
5 - 50 |
PPS |
15 |
The BLDC motor drives a cam, eccentric, or mechanical linkage that moves the diaphragm back and forth. This motion creates a vacuum to draw in fluid and then push it through the outlet.
Key Features of Operation:
Precise flow rate control via motor speed adjustment
Self-priming capability for easy startup
Maintenance-free operation due to the absence of brushes
Durable diaphragm materials compatible with corrosive or viscous fluids
Design: Diaphragms and wetted parts made from PTFE, PVDF, or chemically resistant plastics.
Applications: Acid/base dosing, chemical transfer, lab automation.
Design: Uses flexible tubing with diaphragm action for contamination-free fluid handling.
Applications: Sterile fluid transfer, food & beverage, pharmaceuticals.
Design: Multi-diaphragm or reinforced diaphragm for high-pressure delivery.
Applications: Inkjet systems, hydraulic testing, water treatment.
Long Service Life – BLDC motors last 5–10 times longer than brushed alternatives.
Maintenance-Free Operation – No brushes to replace; simple diaphragm inspection only.
Precise Flow Control – Adjustable speed and electronic feedback options.
Chemical Compatibility – PTFE, PVDF, and other corrosion-resistant materials.
Compact & Quiet – Ideal for laboratory, medical, or industrial environments.
Energy Efficient – Reduced heat generation and low power consumption.
Laboratory & Life Sciences
Automated reagent dispensing, sample transfer, microfluidics, and diagnostic equipment.
Medical Devices
Blood handling, dialysis, infusion systems, and sterilized liquid transfer.
Chemical Industry
Precise dosing of acids, bases, solvents, or other corrosive chemicals.
Food & Beverage
Hygienic transfer of juices, syrups, dairy, and pharmaceutical-grade liquids.
Water Treatment & Environmental
Metering of chlorine, flocculants, and chemical additives in water systems.
