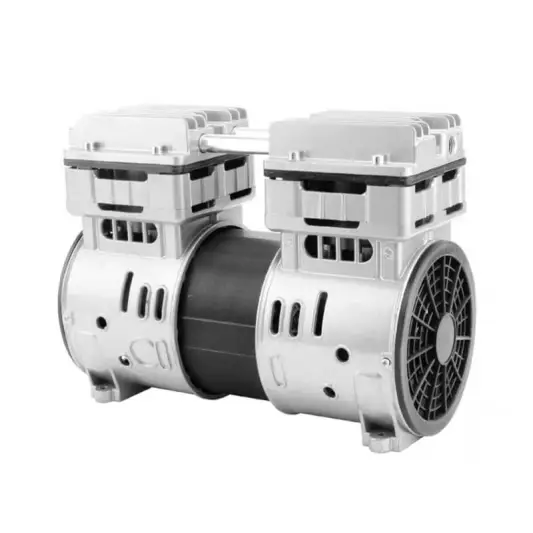

Brushless Vacuum Pump VP30 Series

We specifically manufacture VP30 vacuum pump for use in medical devices such as oxygen concentrator, patient monitor, ventilator, air compressor and other vacuum equipment. The motors type option: AC induction motors and PMSM motors. The motor power range from 80W to 1800W. More power range can be tailor-made for the special industrial pump application.

Inquire Now Next Product

Product Description

Features:

Low speed but big torque motor designed
Low noise, low vibration
Precision engineered, high vacuum, ensuring excellent air tightness
High reliability, superior stability, with a motor continuous operation lifespan of over 10,000 hours.

Typical Model Data:

Model

Air Flow

(L/min)

Positive Pressure

(kPa)

Negative Pressure

(kPa)

Voltage

(V)

Current

(mA)

Ambient Temperature

( C°)

Media Temperature

( C°)

Pump Head Material

Power

( w)

VP30-110

> 580

< -80

110

< 300

-20 - 60

5 - 50

Aluminum

VP30-220

> 580

< -80

220

< 120

-20 - 60

5 - 50

Aluminum

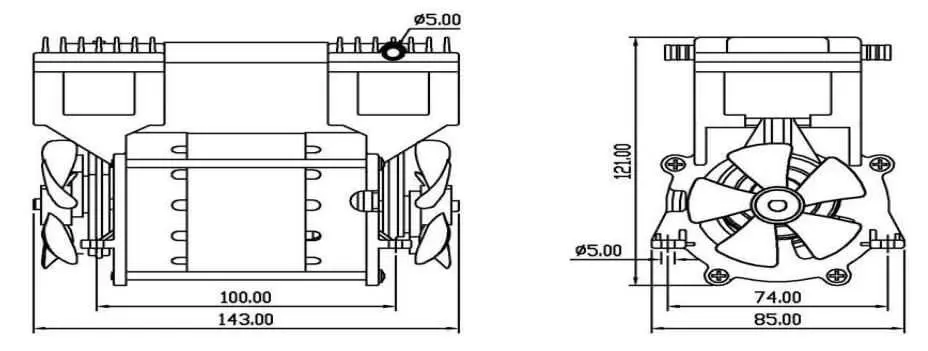

Size Drawing:
