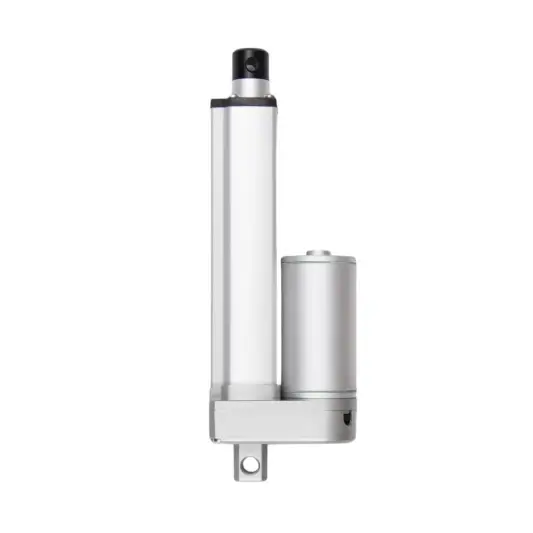

DLA1 Linear Actuators

compact 12V dc electric actuator series. Typical small linear actuator series. Aluminum outer and inter tube. Znic alloy actuator housing. 10N to 1000N force with different speed request. Designed for recreational vehicle, refitted vehicle, window opener automation, luxury yacht door opening and closing, cabinet door and other equipment lid or cover automation.

Inquire Now Next Product

Product Description

Features:

Input (V)	12V or 24V DC
Gear Ratio	5:1	10:1	20:1	30:1
Load (N)	20	400	600	800
Static Load (N)	2300
Speed (mm/s)	25-50	22	12	8
Stroke (mm)	50-300
Temperature	-26 to 65 ℃
Duty Cycle	25% (function 2.5minute in 10minute)
Limit Switch	Built-in (not adjustable)
IP	IP66
Option Sensor	Potentiometer 10K/10round or Hall sensor
Front and Rear Hole	6.5mm diameter (8mm option)
Controller	Input 220V, output 12/24V, drive more actuators

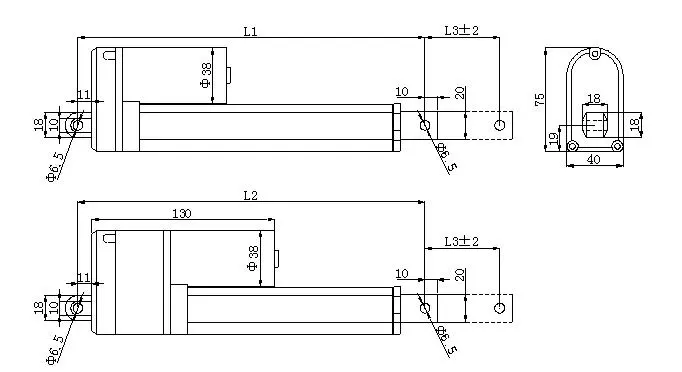

Size Drawing:
