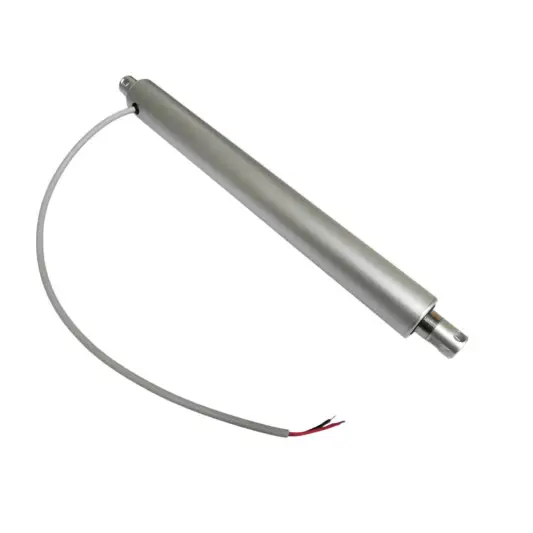

PLA36 Inline Actuator

PLA36 is one slim inline linear actuator for window opening and closing. It can be also used for campers roof lifting, marine hatch opening and closing, building shading systems automation. High quality seal protect the motor from dust, water and chemical. The mounting hole, rod end, rear attachment and cable length can be tailored.
PLA36 Inline Actuator

Product Description

FEACTURES:



Input 12/24V voltage or AC100-240V

Small size of 36mm diameter

Max load 1000N

Stroke: 50-800mm

Minimum retracted length 250mm+stroke

Polished stainless steel piston rod

In-line planetary gearmotor design

Over-current protection with circuit board design

Apply to recreation vehicles, window opening application





Typical model data



Model

Voltage

Load

Max Current

Speed

Stroke

IP

PLA36-1

DC24V

600N

1.0A

6mm/s

50-300mm

IP65

PLA36-2

AC100-240

600N

0.2A

6mm/s

50-300mm

IP65

PLA36-3

DC24

800N

1.3A

6mm/s

50-300mm

IP65

PLA36-4

AC100-240

800N

0.3A

6mm/s

50-300mm

IP65

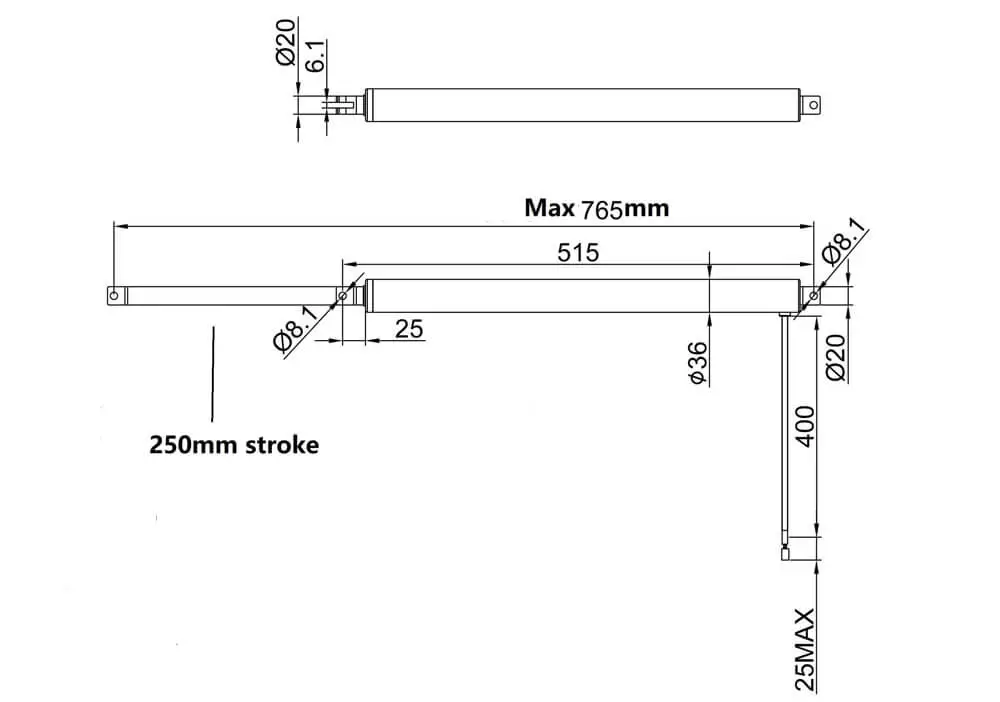

Size Drawing:
