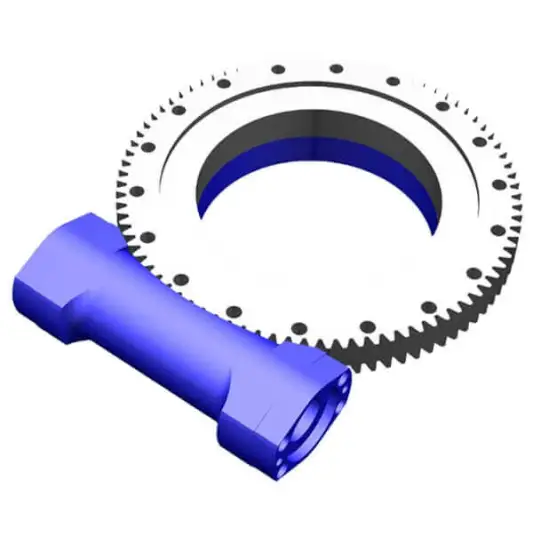

S series Slewing Ring

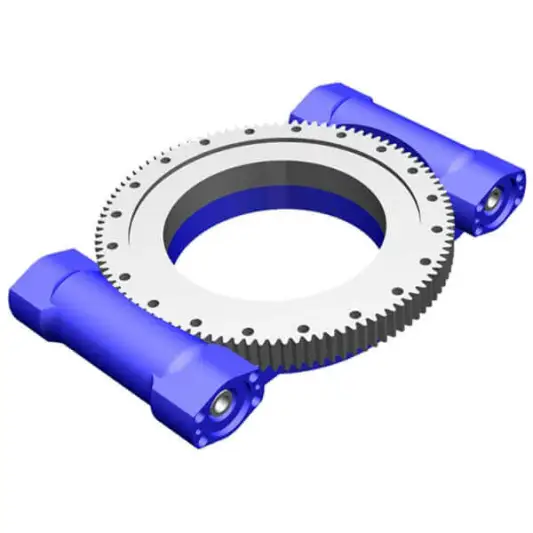

We manufacture open housing type slewing ring bearing with single input worm shaft or double input worm shaft. S refer to single input. S2 refer to double input. They are often used for various types of rotation machinery such as wood grabbing machine, electrical repair truck. Standard model: S7/S9/S12/S14/S17/S21/S25.
Inquire Now Next Product
S series Slewing Ring
S series Slewing Ring

Product Description

Typical Model data:
Model /Dimensions Parameters：

Model External Dimensions（mm） Installation Dimensions （mm） Mounting Holes Date
L L1 L2 L3 R H H1 D D1 D2 D3 n1 M1 n2 M2
S7-73 283 166.7 132.7 186 118 78.5 44.5 203.2 98 120.6 145 8 M12 10 M12
S9-61 396 238 174.2 321.7 157.5 102.7 55.2 270 146 175 204 16 M16 16-1 M16
S12-78 484.5 285 220 339.5 200 113 65.4 358 229 259 289 18 M16 242389-1 M16
S14-85 520 303 237.6 337.5 217.5 113 65.4 390 265 295 325 18 M16 24-1 M16
S17-102 601.5 340 280.4 385 260 123 66 479.4 324 365.1 406 20 M16 20 M16
S21-125 723 417.5 345 475 317.5 136 76.2 584.2 435 466.7 533 36 M20 36-1 M20
S25-150 852 467 401.8 462 372 133 76.2 675 512 565 625 36 M20 36-1 M20

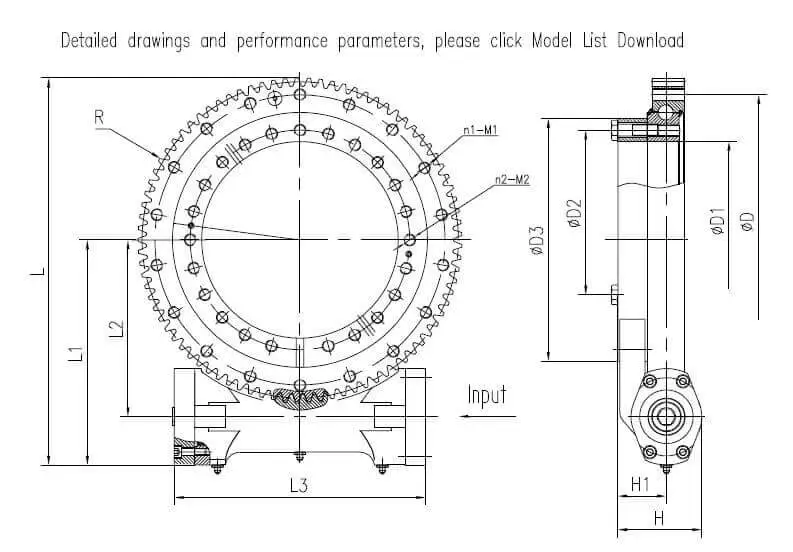

Size Drawing:

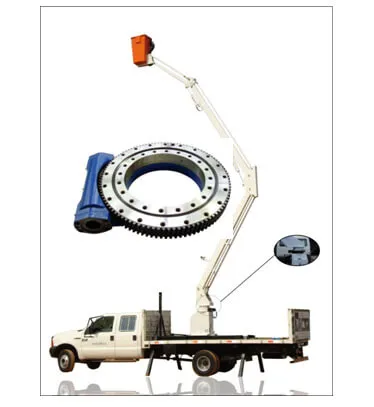

Application Case:
