Slewing Drive Gearbox

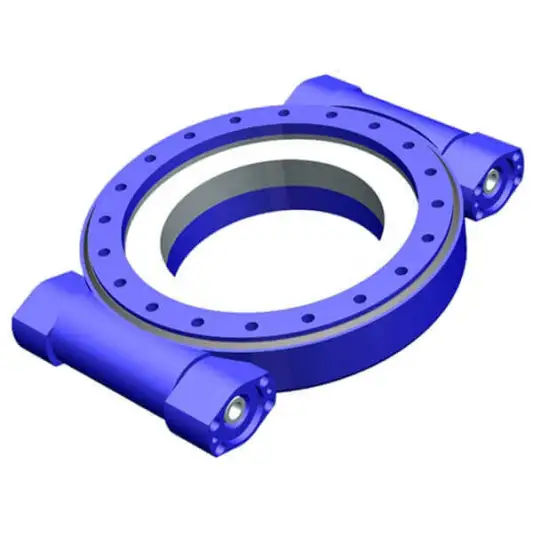

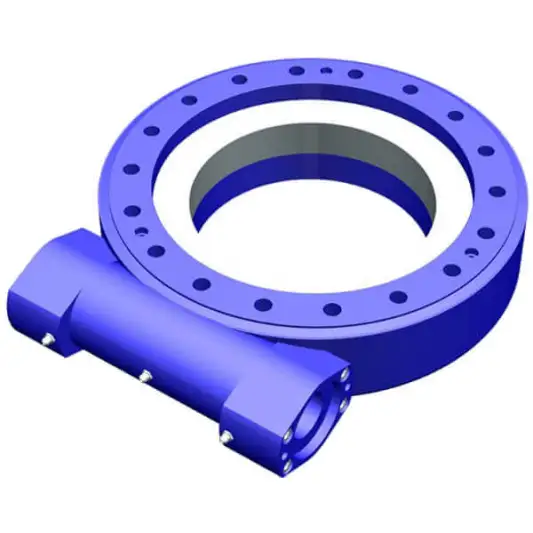

We manufacture enclosed housing type slewing drive gearbox with single input worm shaft or double input worm shaft. SE refer to single input. SE2 refer to double input. They are often used for various types of rotation machinery such as wood grabbing machine, solar tracker, coal handling facilities, truck mounted crane and more. Standard model: SE3/SE5/SE7/SE9/SE12/SE14/SE17/SE21/SE25.

Inquire Now Next Product

Product Description

Model /Dimensions Parameters：

Model	External Dimensions（mm）							Installation Dimensions （mm）						Mounting Holes Data
Model	L	L1	L2	L3	R	H	H1	D	D1	D2	D3	D4	D5	n1	M1	n2	M2
SE3-62	228	114	80	160	76	97.5	60.5	115	100			100	126	6	M10
SE5-62	225	127.7	93.7	168	91.5	79	38	161	135	103.5	50	70	120	6	M10	8-1	M10
SE7-73	296	166.7	132.7	186	129	80.8	42.5	237.5	203.2	163	98	120.6	145	8	M12	10	M12
SE9-61	411	238	174.2	321.7	172.5	108	56.1	316	270	222.5	146	175	204	16	M16	16-1	M16
SE12-78	500	285	220	339.5	215.5	110.4	58.4	406	358	308.6	229	259	289	18	M16	242389-1	M16
SE14-85	531	303	237.6	337.5	228	111	59	453	390	342.5	265	295	325	18	M16	24-1	M16
SE17-102	615.5	340	280.4	385	275	126	66	522	479.4	425	324	365.1	406	20	M16	20	M16
SE21-125	732	417.5	345	475	334	140	73	621	584.2		435	466.7	533	36	M20	36-1	M20
SE25-150	863	467	401.8	469	396	130	76.2	744	675		512	565	628	36	M20	36-1	M20

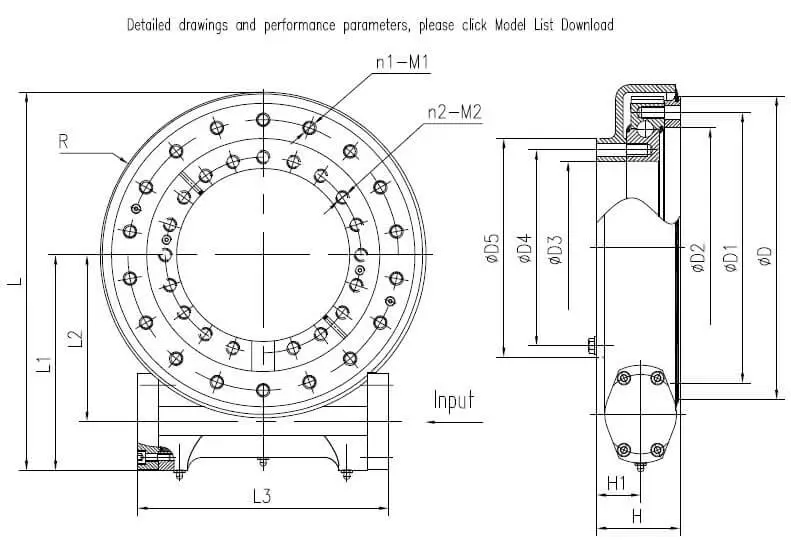

SE Size Drawing:

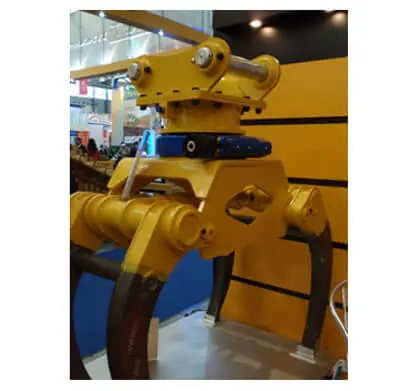

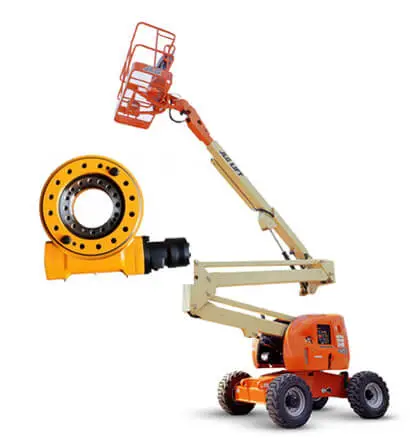

Application Case:
