High-speed permanent magnet synchronous motors (HSPMSMs) are revolutionizing industrial fan systems due to their high efficiency, compact design, and superior dynamic performance. This paper explores the specific applications, advantages, and technical challenges of HSPMSMs in industrial fans, covering HVAC systems, process cooling, and exhaust applications. Key benefits include energy savings of 15-30%, reduced maintenance costs, and enhanced controllability compared to traditional induction motors.
1. Introduction to HSPMSMs in Industrial Fans
Industrial fans consume ~20% of global industrial electricity, making efficiency improvements critical. HSPMSMs (typically 10,000–50,000 RPM) offer:
✔ Higher power density (smaller size for same output)
✔ Near-unity power factor (reducing grid losses)
✔ Direct-drive capability (eliminating gearboxes)
Comparison with Conventional Motors
|
Feature |
HSPMSM |
Induction Motor |
|
Efficiency |
95–98% |
85–92% |
|
Speed Range |
10k–50k RPM |
3k–6k RPM (with gearbox) |
|
Maintenance |
Brushless, no slip rings |
Requires frequent bearing checks |
|
Control Precision |
±0.1% speed regulation |
±1–2% |
2. Key Applications in Industrial Fan Systems
2.1 HVAC Systems
(1) Centrifugal fans in commercial buildings
• 20–30% energy savings via variable speed drives (VSDs)
• Lower noise (<65 dB) due to elimination of gear meshing
(2) Data center cooling fans
• 50,000+ hour lifespan (critical for 24/7 operation)
• Predictive maintenance via embedded vibration sensors
2.2 Process Cooling in Manufacturing

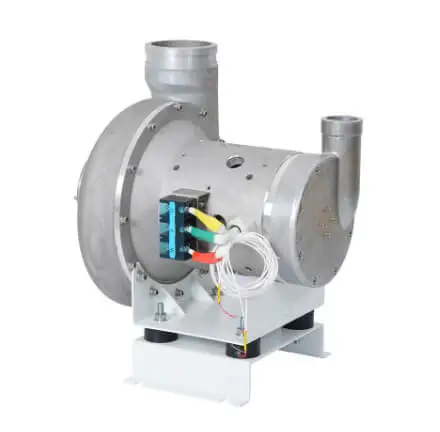

(1) High-pressure blowers for plastic extrusion
• Precise airflow control (±1%) for consistent product quality
• Oil-free operation (critical for food/pharma industries)
(2) Turbine-driven exhaust systems
• 30% smaller footprint vs. induction motor setups
• Regenerative braking for energy recovery
2.3 Industrial Exhaust & Pollution Control
(1) High-temperature fume extraction
• Ceramic-coated rotors withstand 200+°C environments
• Zero lubrication prevents contamination
(2) Mining ventilation fans
• Explosion-proof designs (ATEX-certified)
• Remote monitoring via IoT for hazardous areas
3. Technical Advantages of HSPMSMs
3.1 Energy Efficiency & Cost Savings
• IE5 efficiency class (vs. IE3/IE4 for induction motors)
• 30% lower lifecycle cost (due to reduced power consumption & maintenance)
3.2 Advanced Control Features
• Sensorless vector control (eliminates encoder failures)
• Soft-start capability (reducing mechanical stress)
• Active vibration damping (critical for high-speed operation)
3.3 Reliability & Durability
• No brushes or slip rings (maintenance-free operation)
• High-grade NdFeB magnets (resistant to demagnetization)
• Integrated cooling systems (liquid-cooled stators for 24/7 duty)
4. Challenges & Solutions
4.1 Thermal Management
❌ Challenge: Heat buildup at high speeds reduces magnet performance
✅ Solutions:
• Liquid-cooled motor housings (maintain <80°C winding temp)
• Thermal sensors with adaptive control
4.2 Bearing Wear at Ultra-High Speeds
❌ Challenge: Mechanical bearings degrade rapidly above 20k RPM
✅ Solutions:
• Active magnetic bearings (AMBs) for contactless support
• Hybrid ceramic bearings (50% longer life than steel)
4.3 High Initial Cost
❌ Challenge: 2–3× more expensive than induction motors
✅ Solutions:
• ROI in 2–4 years via energy savings
• Modular designs for easier retrofitting
5. Future Trends
Wide-bandgap (SiC/GaN) inverters → 99% efficiency
Digital twin integration → Predictive maintenance
Additive-manufactured rotors → Lighter, stronger designs
6. Conclusion
HSPMSMs are transforming industrial fan systems by delivering unmatched efficiency, reliability, and controllability. While initial costs and thermal challenges remain, advancements in magnetic bearings, cooling, and power electronics are accelerating adoption. The market is projected to grow at 12–15% CAGR (2024–2030), driven by energy regulations and Industry 4.0 automation. Companies investing in HSPMSM-based fans today will gain a competitive edge in operational efficiency and sustainability.
Key Takeaways:
✔ 20–30% energy savings vs. induction motors
✔ Maintenance-free operation with 50,000+ hour lifespan
✔ Critical for smart factories, data centers, and green manufacturing
✔ Future innovations in AMBs and digitalization will expand applications
High speed PMSM motors are not just the upgrade electric motors—they are the future of industrial fan technology.
