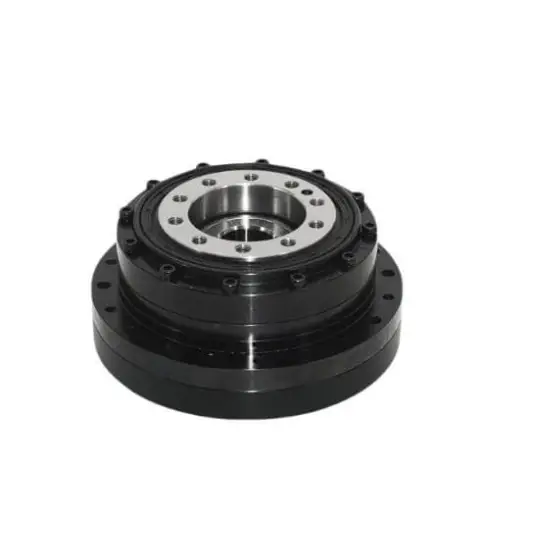

Product Description
Features:

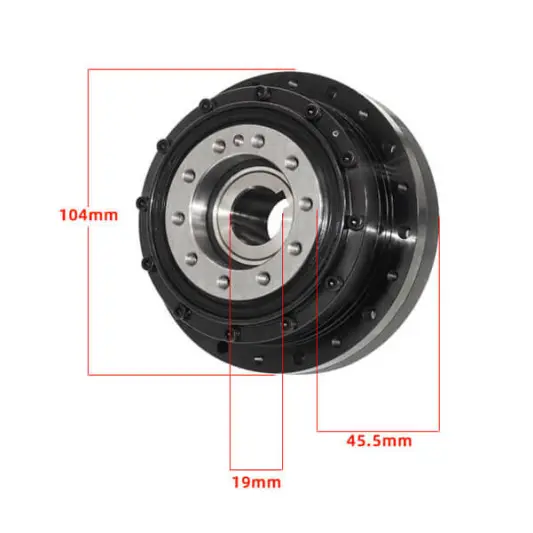

104mm diameter
Structure type: cycloidal gear reducer
Ratio: 25/49
Output torque: 90Nm and 130Nm
Max torque: 3 times rated torque
Life time: 20000 hours
Working temperature: -25℃-90℃
Data Details:
|
Gearbox housing |
Metal |
Gears materials |
Metal |
|
Housing diameter |
104mm |
Height |
45.5mm |
|
Gear ratio |
25/49 |
Loading efficiency |
85% |
|
Rated torque |
90Nm/130Nm |
Max torque |
3 times rate torque |
|
Radial force |
770N |
Axial force |
770N |
|
Protection |
IP65 |
Temperature |
-25℃-90℃ |
|
Life time |
20000h |
Rate input speed |
3000rpm |
|
Backlash |
≤ 10 arcmin |
Max input seed |
5500rpm |
|
Drive structure |
Cycloidal gear drive |
||
|
Motor size |
φ19×35/φ70×3/4-φ5.5-φ90 |
||

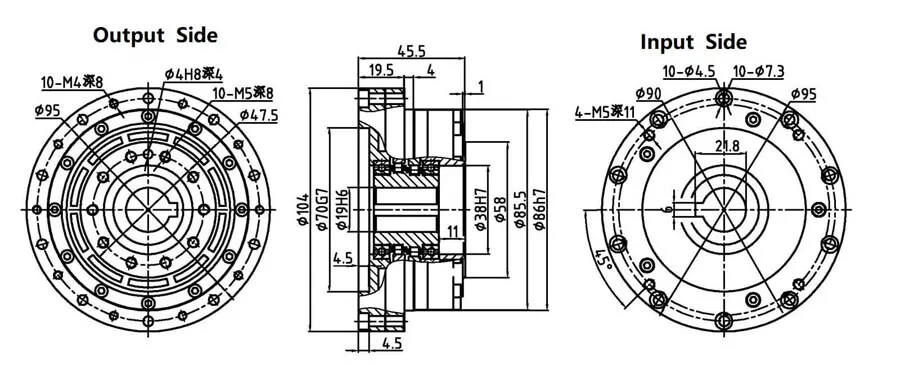

Size Drawing:
