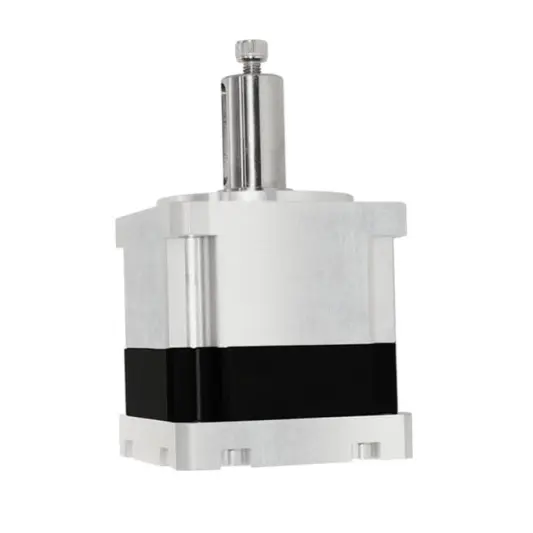

APX060 Cycloidal Reducer

We develop one new cycloidal reducer which named APX060. It has planetary gearbox housing but designed with cycloidal structure. Compared with the 60mm size planetary gearbox, It has 3 times output max torque. They are ideal for robot application which need high torque but small size. The standard ratio is 25 and 49. The customized ratio can be 13-79.

Inquire Now Next Product

Product Description

Features:

60mm diameter

Structure type: cycloidal gear reducer

Ratio: 25/49

Output torque: 68Nm and 80Nm

Max torque: 3 times rated torque

Life time: 20000 hours

Working temperature: -25℃-90℃

Data Details:

Gearbox housing	Metal	Gears materials	Metal
Housing diameter	60mm	Height	96mm
Gear ratio	25/49	Loading efficiency	85%
Rated torque	68Nm/80Nm	Max torque	3 times rate torque
Radial force	800N	Axial force	550N
Protection	IP65	Temperature	-25℃-90℃
Life time	20000h	Rate input speed	3000rpm
Backlash	≤ 10 arcmin	Max input seed	5500rpm
Drive structure	Cycloidal gear drive
Motor size	φ14×30/φ50×3/4-φ4.5-φ70

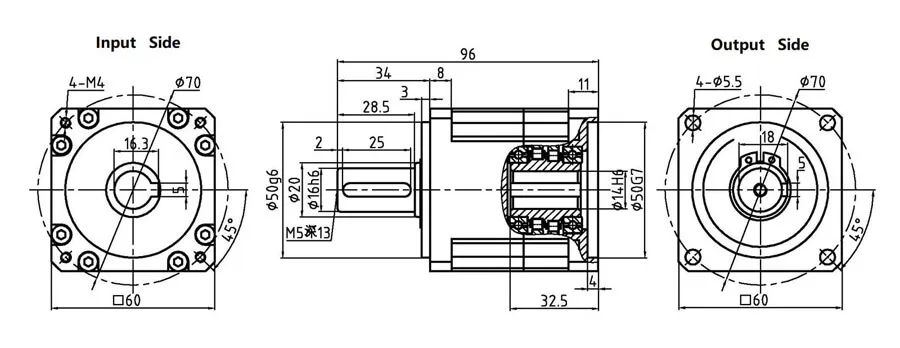

Size Drawing:
