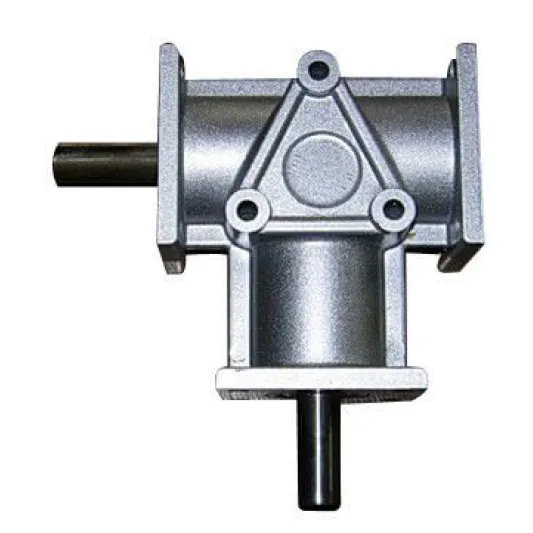

ARA series Bevel Gearbox

ARA series bevel gear reducer designed with two standard ratio: 1:1 and 2:1. Small bevel gearbox series with light weight aluminium alloy housing design. The bevel gears are made of low carbon alloy steel. Input speed from 50rpm to 1500rpm. Best bevel gear reducer selection.
Inquire Now Next Product
ARA series Bevel Gearbox

Product Description

Features:

Model: ARA1/ARA2/ARA4

Power transmitted from 0.018KW to 5KW

Wide gear ratio: 1:1, 2:1

Low consumed energy, low noise, small vibration

Light weight design with aluminium alloy housing

Suitable for universal installation.

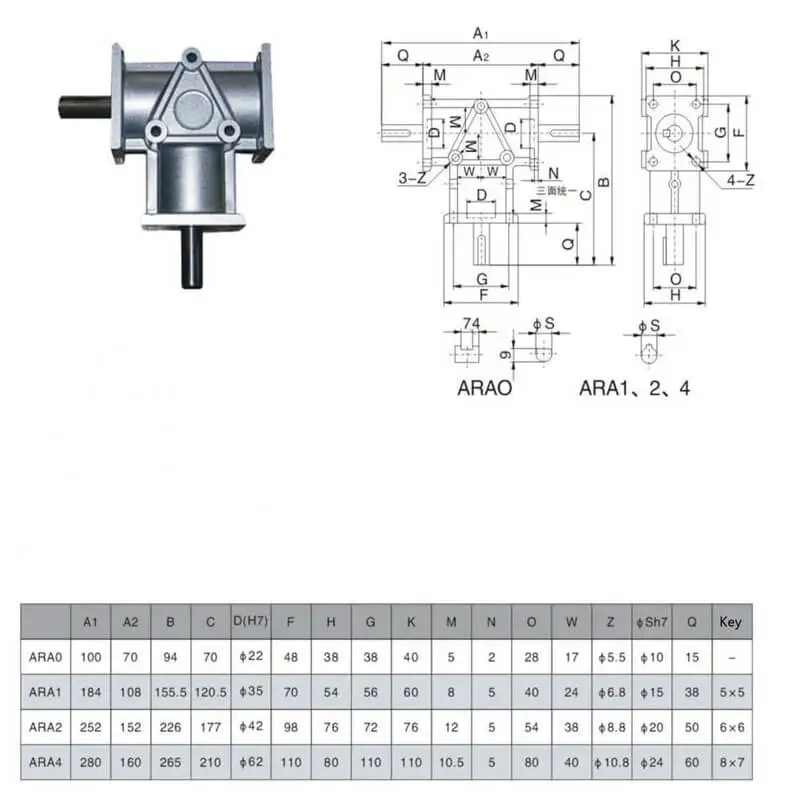

Size Drawing:







Input Shaft Arrangement
