Product Description
Features:
Size (center distance): 25, 30, 40, 50, 63, 75, 90, 110, 130,150
Power transmitted from 0.06KW to 15KW
Wide gear ratio from 5:1 to 5000:1 solution
Aluminum die-casting alloy case, lightweight, high strength
The wheel axle is made of forged steel casting
The teeth of worm gear are made of wear-resisting bronze alloy.
Oil Seal:trade mark TTO of Taiwan or trademark simrit of Germany
Lubricants oil:the specification from 25-90 are filled in synthetic oil ,from 110-150 are filled in mineral oil
Bearing:trademark HRB/HRE/NSK

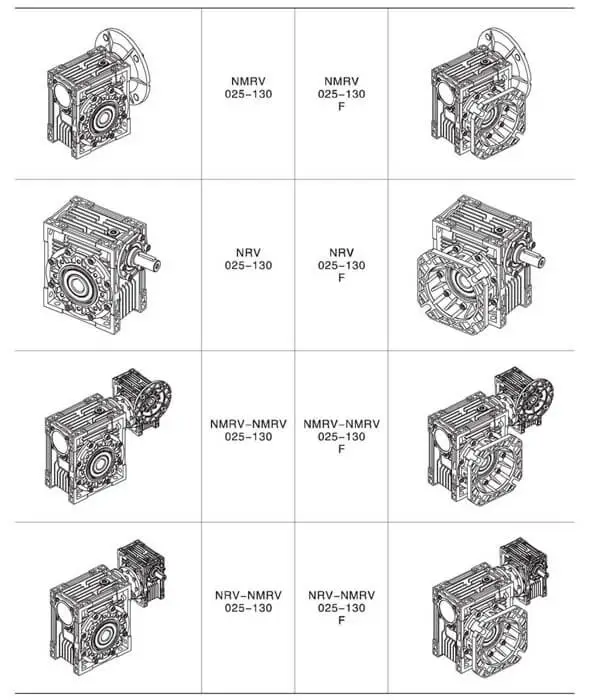

2. RV Worm Gearbox Variants:
To get bigger output torque, 2 different size RV gearbox can be integrated. Output shaft, flange can be flexible to choose. From NRV to NMRV versions, they suit for more industrial application mounting.

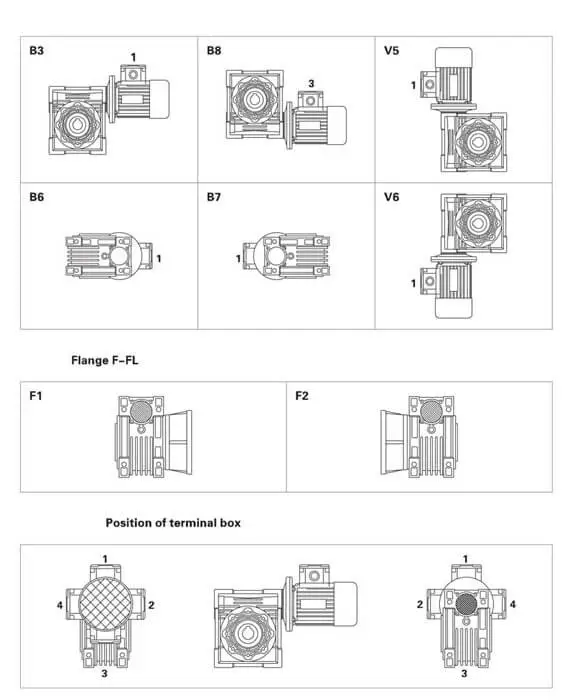

3. Worm Gearbox Mounting Position with Electric Motor

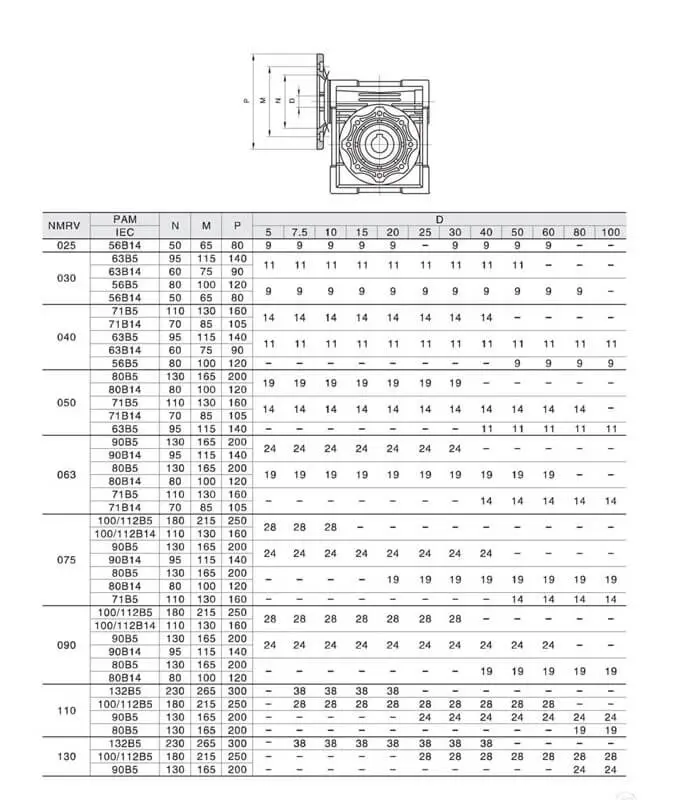

Select the suitable electric motor power to match with worm gearboxes. Different mounting position to suit for customer’s different projects space request.

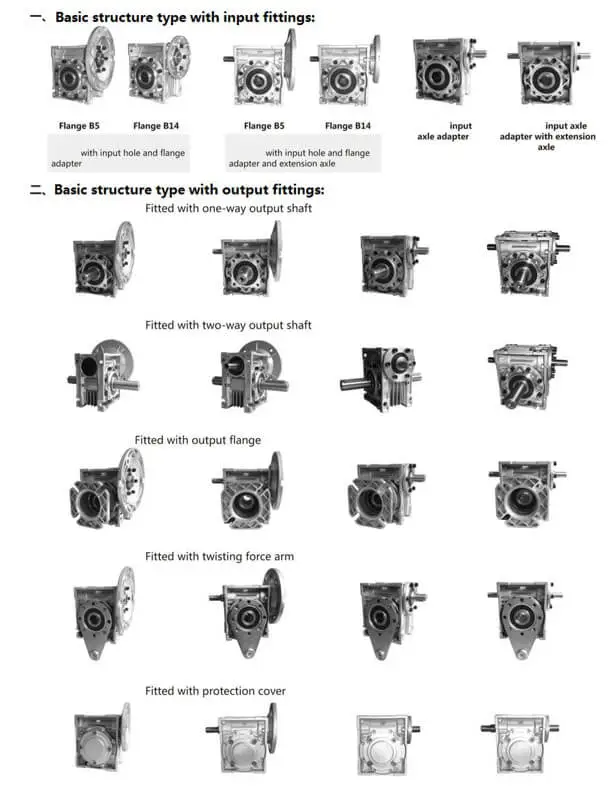

4. Basic Structure Design
RV worm gearboxes with input fittings and output fittings structure showing. It can help customer to select the correct worm gearbox model.
