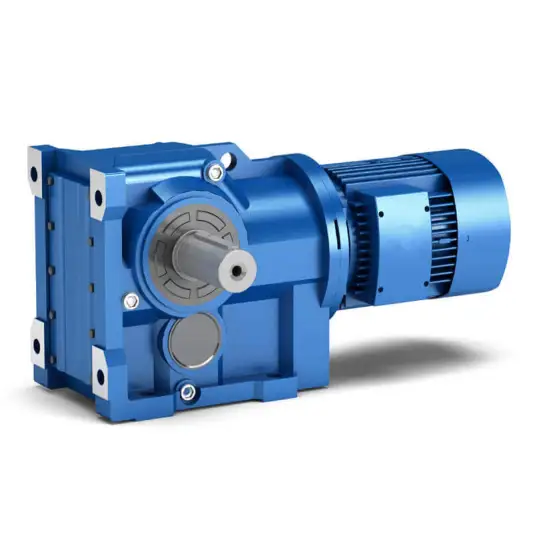

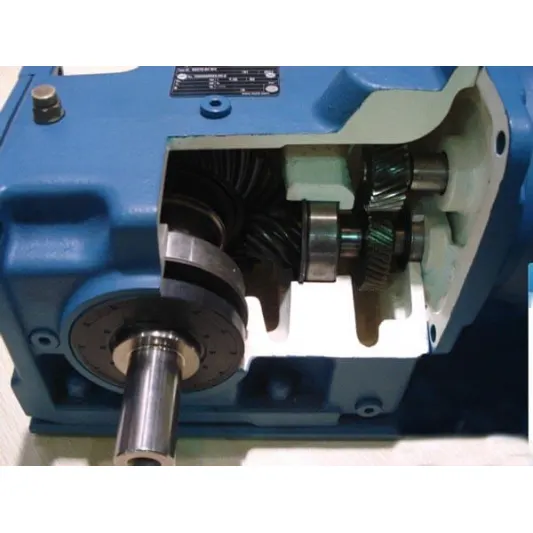

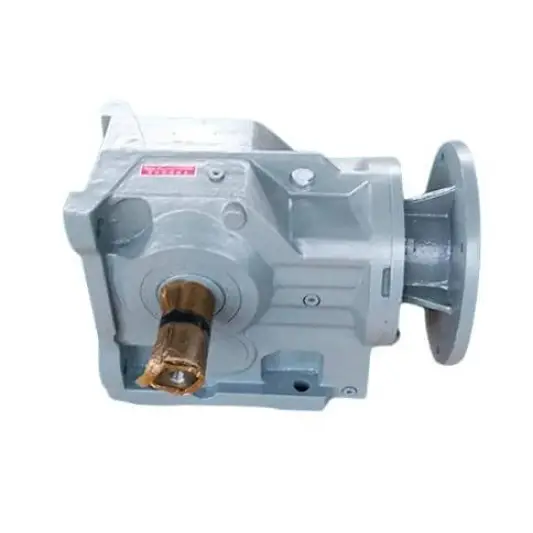

K series Spiral Bevel Gearbox

K series industrial gearbox designed with spiral bevel gear and helical gear structure for high performance request. Smooth in running and low in noise. High in radiating efficiency. Suitable for universal installation. No restriction on brand,match with normal electric motor. Wide reduction ratio selection. Best industrial degree spiral bevel gearbox selection.
Inquire Now Next Product
K series Spiral Bevel Gearbox
K series Spiral Bevel Gearbox
K series Spiral Bevel Gearbox

Product Description

Features:

  1.  Size (center distance): 37/47/57/67/77/87/97/107/127/157/167/187
  2.  Power transmitted from 0.12KW to 200KW
  3.  Wide gear ratio from 8.68 to 17550 range
  4.  Adopt unit structural modularized design to have plenty of motor combination
  5.  Low consumed energy, low noise, small vibration, up to 96% efficiency
  6.  Good rigid cast iron gearbox with high strength, low heat loss
  7.  Gear is made of fine forge steel
  8.  Input option: input shaft, hollow shaft, input shaft flange like B5 flange

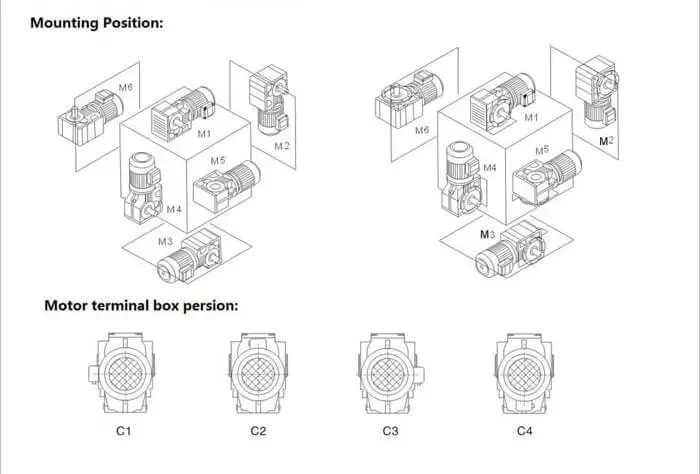

Design type:
