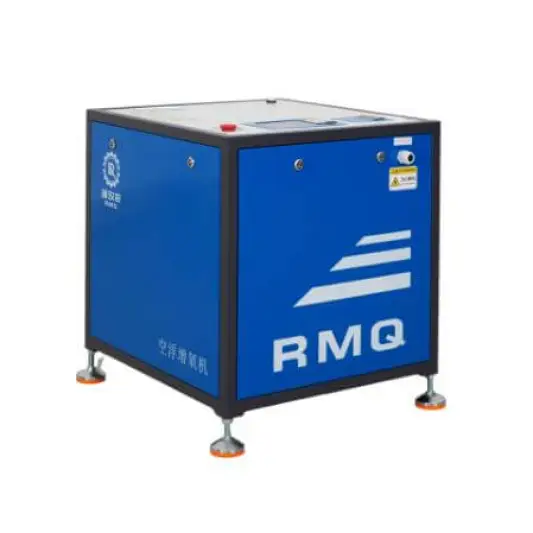

RMQ series Maglev Turbo Blower

RMQ series Maglev turbo blower also known as air bearing blower and high speed turbo blower. It is turbo blower generation 6. There are 5 revolutionary core technology. The current high efficient PMSM power selection: 5.5/7.5/15/22/30/37/45/55KW. They are mainly used for industrial ventilation, wastewater treatment, drying and cooling processes, power generation.

Inquire Now Next Product

Product Description

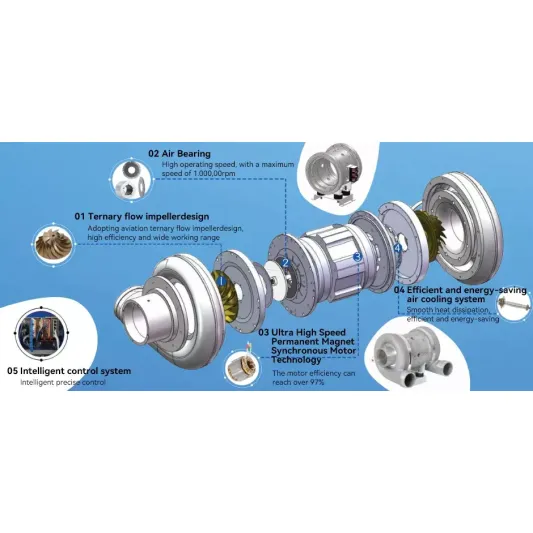

There are 5 revolutionary core technology: three-dimensional flow impeller design; air suspension bearings technology; ultra high speed permanent magnet synchronous motor; high-efficiency energy-saving air cooling system; intelligent control system.

Typical application such as: Air-knife drying, cement industry desulfurization process, aquaculture aerators, thermal power plant and more.

Features:

25k-80Krpm or higher
Air bearing design
Above 97% energy-saving PMSM motor
No lubrication required, no oil-gas separation needed
low maintenance cost
Low noise which is less than 80 dB
The benefits of saving industrial electricity are substantial with a high rate of return

Typical model data:

Model	Rated Power (kw)	Size (length/width/height) mm			Flange	Bearing	Flow rate control method	Cooling method	Noise (dB)
RMQ-ZY-5.5	5.5	550	550	560	DN100	Foil air bearing	Variable Frequency Control	Air cooling	≤80
RMQ-ZY-5.5	5.5	700	650	685	DN65
RMQ-ZY-7.5	7.5	700	650	685	DN100
RMQ-ZY-15	15	700	650	685	DN150
RMQ-ZY-22	22	1050	770	1095	DN150
RMQ-ZY-30	30	1100	800	950	DN150
RMQ-ZY-37	37	1400	950	950	DN200
RMQ-ZY-45	45	1500	1050	1115	DN200
RMQ-ZY-55	55	1500	1050	1115	DN200
