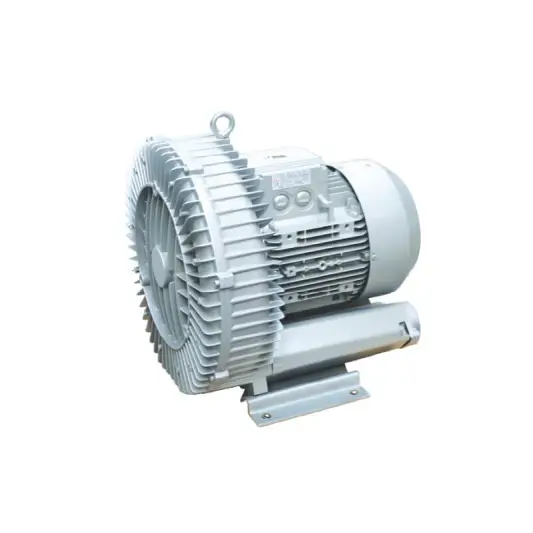

TB series High Pressure Fan

High pressure fans designed with superior airflow and pressure capabilities compared with other blower fans type. Robust construction with durable materials such as steel, aluminum and other materials suited for high temperatures, corrosive environments. TB series, as one typical of high pressure fans, power selection from 120W to 7500W.
TB series High Pressure Fan

Product Description

The max flow from 21/h to 470m³/h. The special high pressure industrial air blower can be tailor-made too. They are mainly used for industrial ventilation, wastewater treatment, drying and cooling processes, power generation.



Features:

1. Enhanced performance to save space and reduce installation cost.

2. High energy efficiency advantage

3. Motor: high efficiency PMSM motor

4. Insulation Class: F, H

5. High durability and reliability

6. Can be customized to meet the specific requirements of different applications

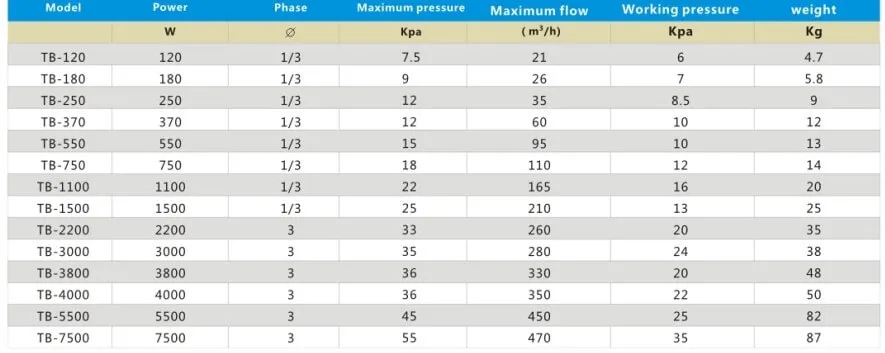

Each Model Data:

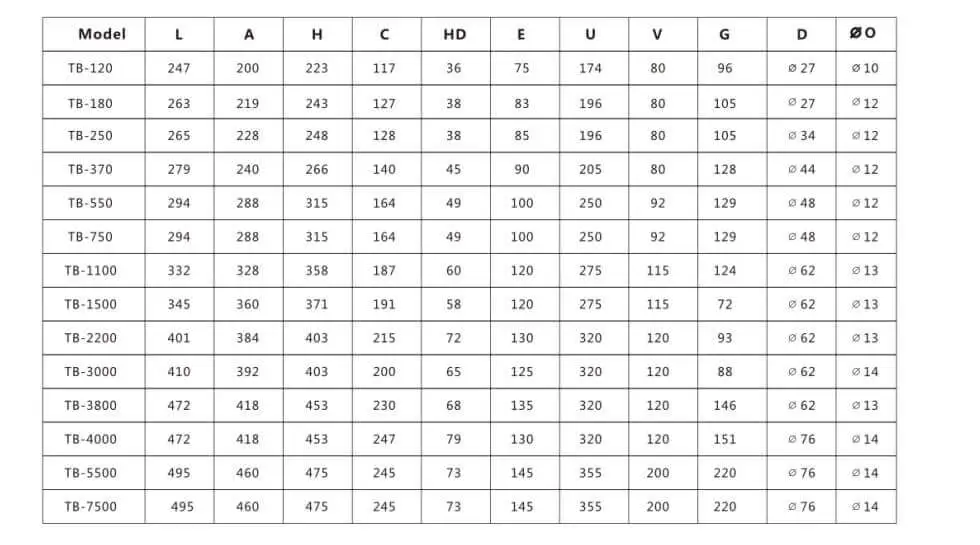

TB Blower Size Drawing:
