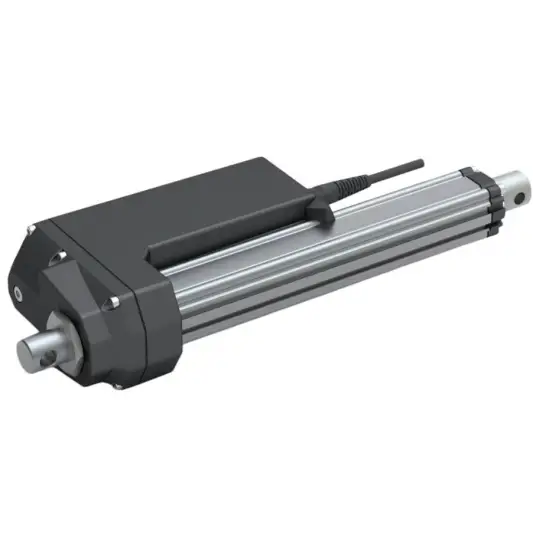

Product Description
Features:
Rated Voltage: DC12V/24V/36V
Load Capacity: 500N-120000N (12000N Max.)
Speed: 11mm/s;16 mm/s,24 mm/s;41 mm/s
Waterproof grade: IP66
Manual operation: hand crank manual operation
Overload protection: integrated slip clutch for mechanical overload protection
Self-locking device: mechanical self-locking device
Rear adjustment method: can be adjusted by 30 degrees
Noise level: 73dB (300mm away from sound source)
Limit device: built-in switch
Signal feedback: Hall sensor, potentiometer
Working temperature: -30℃ to 65℃
Duty Cycle: 15%-20%
Typical model data
|
Model |
Max (N) |
Self- locking (N) |
screw pitch (mm) |
No-loaded speed (mm/s) |
Loaded speed (mm/s) |
Stroke (mm) |
No-load current (A) |
Loaded current (A) |
|
DLA3-1 |
10000 |
13000 |
4 |
11 |
7 |
100-1000 |
4.5 |
22 |
|
DLA3-2 |
5000 |
5800 |
8 |
25 |
17 |
100-1000 |
4.5 |
22 |
|
DLA3-3 |
2600 |
3400 |
12 |
41 |
30 |
100-1000 |
4.5 |
23 |
|
DLA3-4 |
1700 |
2200 |
20 |
68 |
50 |
100-1000 |
4.5 |
23 |

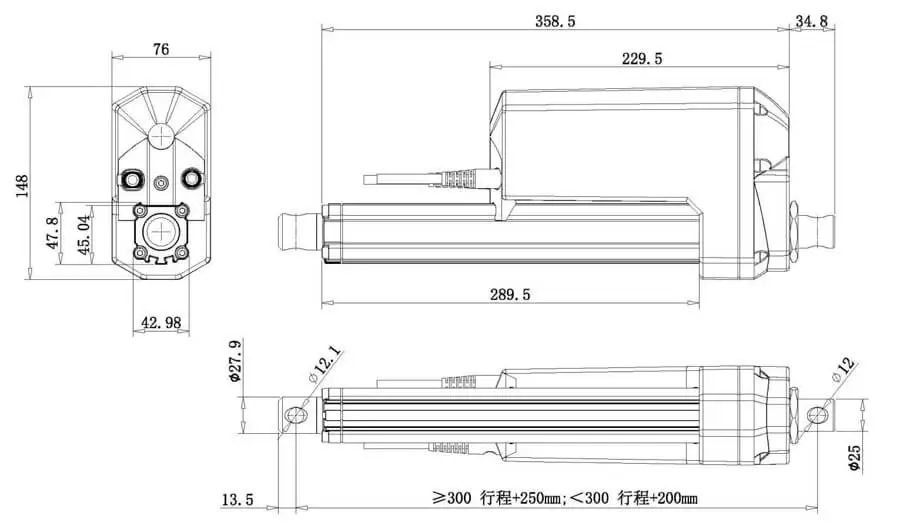

Size Drawing:
