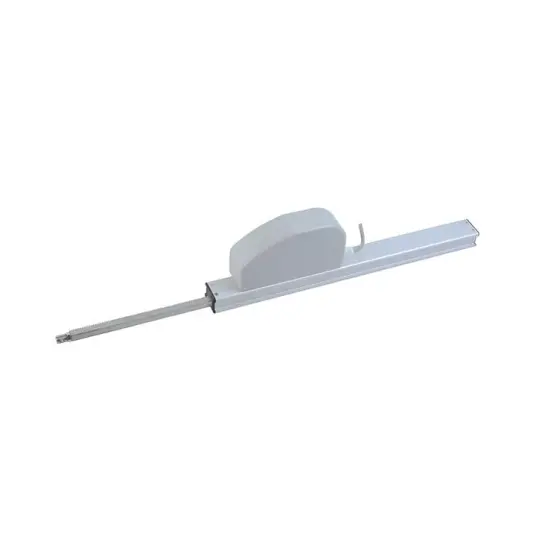

RLA40 Electric Rack Window Opener

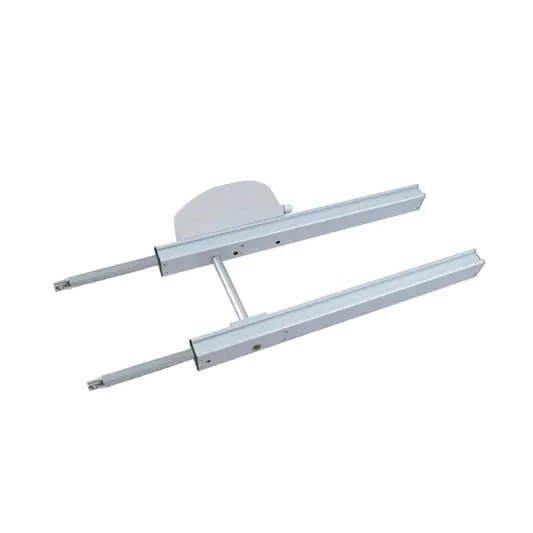

RLA40 is one special structure with linear rack as pushing rod for window opening and closing. High quality seal protect the motor from dust, water and chemical. The mounting hole, rod end, rear attachment and cable length can be tailored. It can also match with another mechanical linear rack drive with positive and negative rods as double pushing.
RLA40 Electric Rack Window Opener
RLA40 Electric Rack Window Opener

Product Description

Features:

Input 24V voltage or AC100-240V

Small size of 40mm diameter

Max load 800N

Stroke: 50-750mm

Polished stainless steel rack rod

In-line planetary gear motor design

Over-current protection with circuit board design

Apply to window opening application



Typical model data

Model

Voltage

Load

Max Current

Speed

Stroke

IP

RLA40-1

DC24V

600N

1.2A

10mm/s

350mm

IP32

RLA40-2

DC24V

600N

1.2A

10mm/s

550mm

IP32

RLA40-3

DC24V

600N

1.2A

10mm/s

750mm

IP32

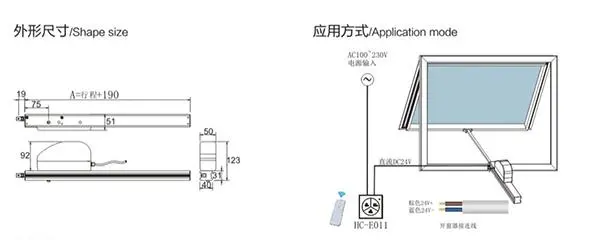

Size Drawing:
