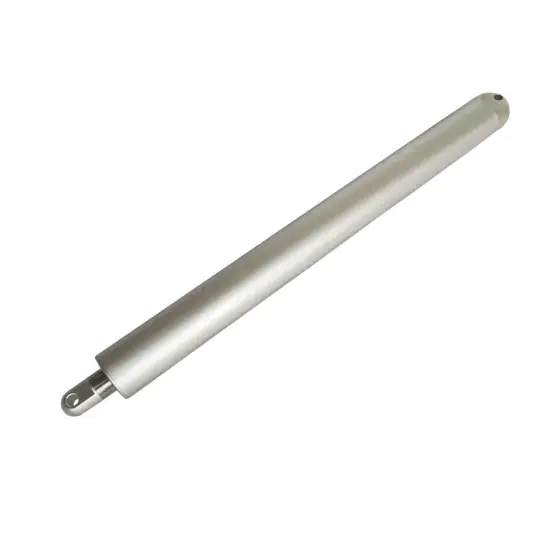

Product Description
Features:
Input 12/24V voltage
50mm diameter outer tube
Max load 5000N
Stroke: 25-1000mm
Minimum retracted length 315mm+stroke
Polished stainless steel piston rod
In-line planetary gearmotor design
Over-current protection with limit switch design
Apply to recreation vehicles, wheel chair drive application
Typical model data
|
Model |
Load
(N) |
Speed (mm/s) |
Current (A) |
||||
|
12V |
24V |
||||||
|
No-load |
Load |
No-load |
Load |
No-load |
Load |
||
|
PLA50-15 |
750 |
18 |
15 |
0.9 |
4 |
0.5 |
2 |
|
PLA50-10 |
1500 |
12 |
10 |
0.9 |
4 |
0.5 |
2 |
|
PLA50-4 |
3000 |
5 |
4 |
0.9 |
4 |
0.5 |
2.2 |
|
PLA50-2 |
5000 |
2.4 |
2 |
0.8 |
4.2 |
0.5 |
2.4 |

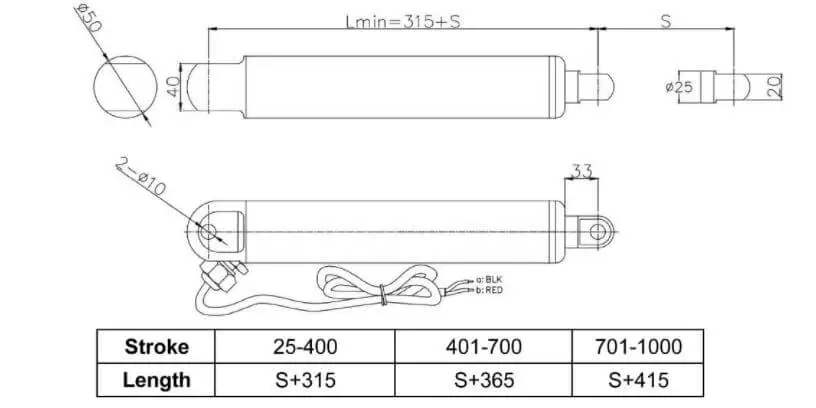

Size Drawing:
