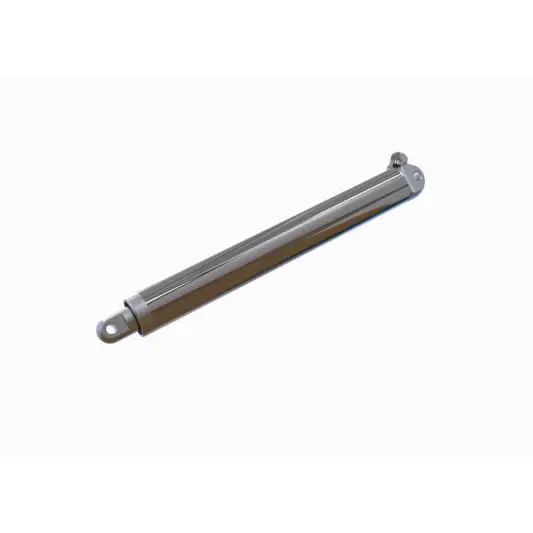

Product Description
Features:
Input 12/24V voltage
Very small with 25mm diameter
Max load 500N
Stroke: 30-500mm
Minimum retracted length 175mm+stroke
Stainless steel actuator housing
In-line gearmotor design
Over-current protection with circuit board design
Apply to home cabinet door, innovation coffee machine application
Typical model data
|
Model |
Load
(N) |
Speed (mm/s) |
Current (A) |
||||
|
12V |
24V |
||||||
|
No-load |
Load |
No-load |
Load |
No-load |
Load |
||
|
PLA25-5 |
500 |
7 |
5 |
0.25 |
1.5 |
0.12 |
0.8 |
|
PLA25-8 |
300 |
10 |
8 |
0.28 |
1.4 |
0.15 |
0.7 |

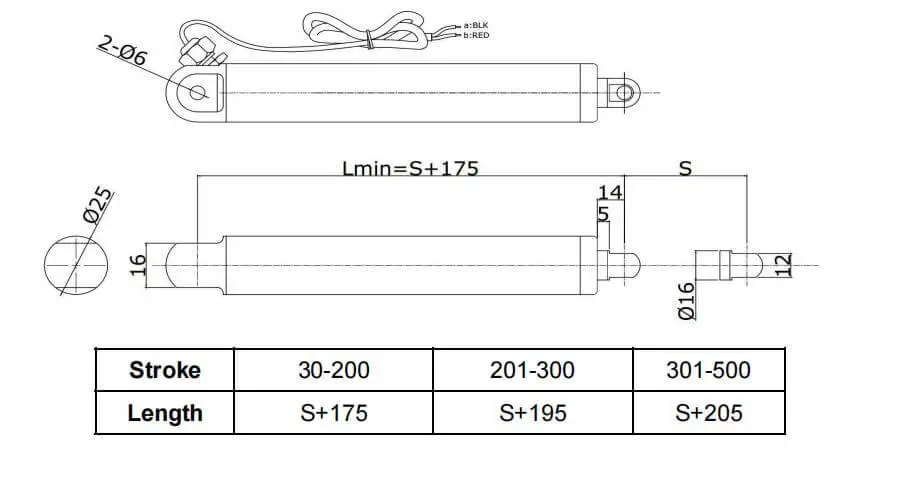

Size Drawing:
