Product Description

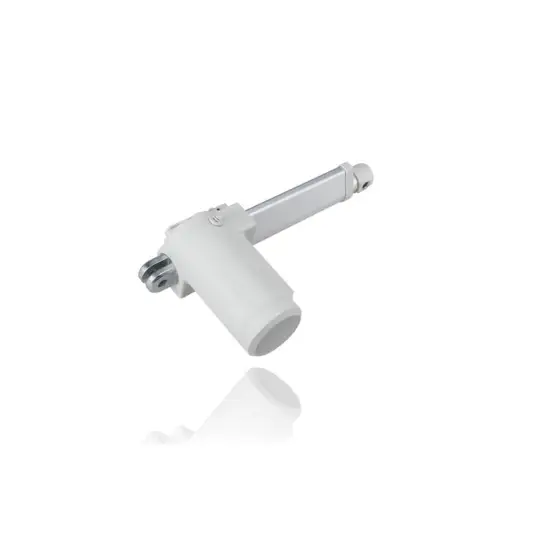

MD30 Medical Actuator is available as a complete medical care system with a controller, handset and foot switch.
Features:
Max load: 3000N
Speed range: 2.9-15mm/s
Minimum retracted length: stroke+160mm
IP rating: IP65
Stroke: 50-600mm
Hall sensor feedback option
Voltage: DC 24V/ AC 120V 50Hz or AC 230V 60Hz
Noise level less than 48dB
Typical model data
|
Model |
Voltage
(V) |
Push Load (N) |
Pull Load (N) |
No- Load Speed (mm/s) |
Load Speed (mm/s) |
No-load Current (A) |
Load Current (A) |
Stroke
(mm) |
Installation Length (mm) |
Noise
(dB) |
|
MD30-100 |
24 |
3000 |
2000 |
14 |
8.8 |
1.5 |
2.6 |
100 |
260 |
≤ 48 |
|
MD30-150 |
24 |
2000 |
2000 |
15 |
10 |
0.9 |
2.6 |
150 |
310 |
≤ 48 |
|
MD30-200 |
120 |
2000 |
1000 |
9 |
7.6 |
0.5 |
1.4 |
200 |
360 |
≤ 48 |
|
MD30-300 |
230 |
1500 |
1500 |
13.5 |
11.5 |
0.5 |
1.7 |
300 |
460 |
≤ 48 |

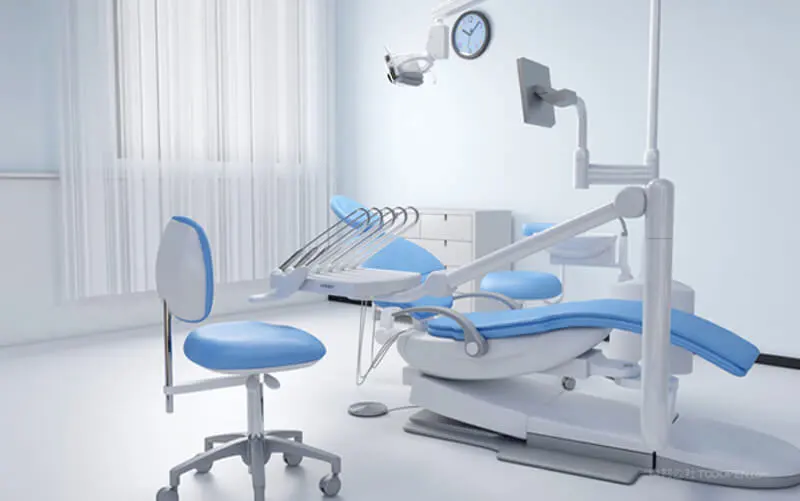

Typical applciation:
