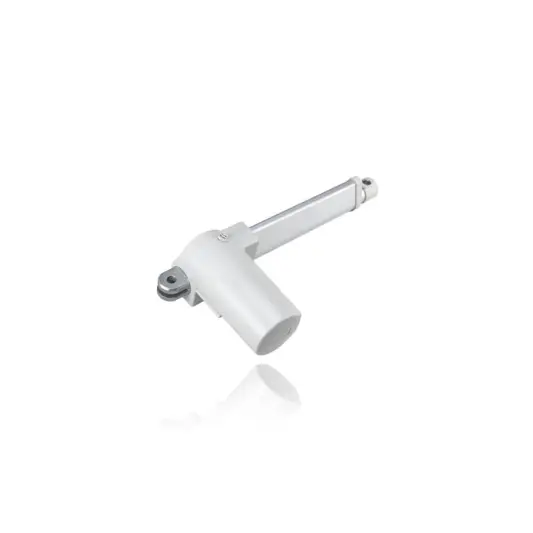

Product Description
Features:
Max load: 4000N
Speed range: 6-15mm/s
Minimum retracted length: stroke+160mm
IP rating: IP65
Stroke: 50-600mm
Hall sensor feedback option
Voltage: 24V
Noise level less than 48dB
Silver white color
Typical model data
|
Model |
Voltage
(V) |
Push Load (N) |
Pull Load (N) |
No- Load Speed (mm/s) |
Load Speed (mm/s) |
No-load Current (A) |
Load Current (A) |
Stroke
(mm) |
Installation Length (mm) |
Noise
(dB) |
|
MD40-100 |
24 |
4000 |
2500 |
9.8 |
7.8 |
1.8 |
2.8 |
100 |
260 |
≤ 48 |
|
MD40-200 |
24 |
3500 |
2000 |
14 |
8.8 |
1.5 |
2.6 |
200 |
360 |
≤ 48 |
|
MD40-300 |
24 |
2000 |
2000 |
15 |
10 |
0.9 |
2.6 |
300 |
460 |
≤ 48 |

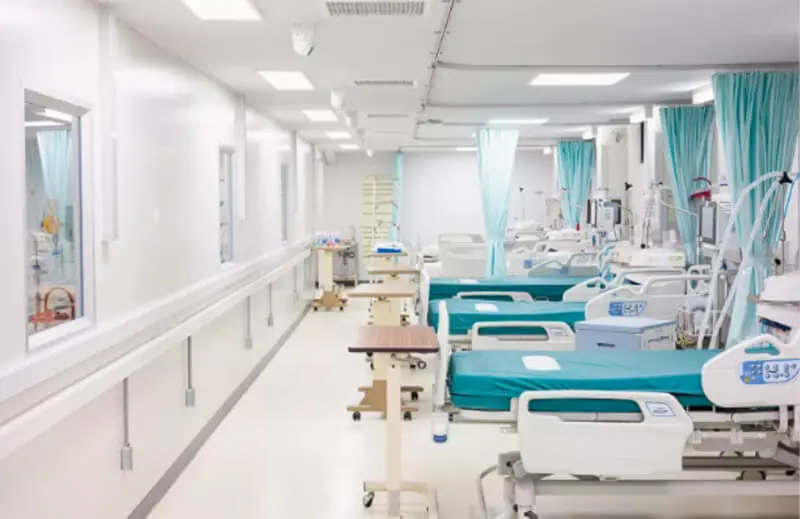

Typical Application:
